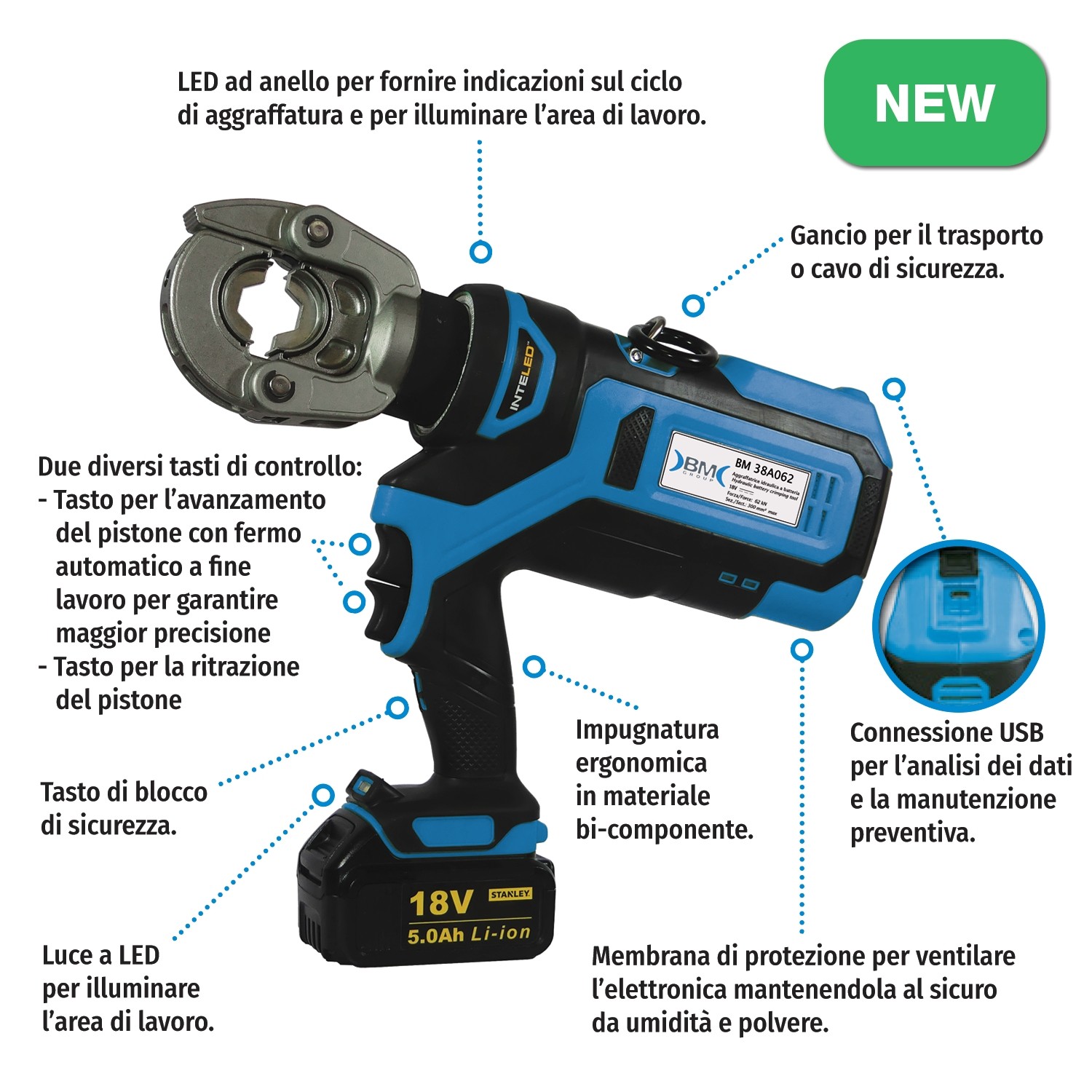

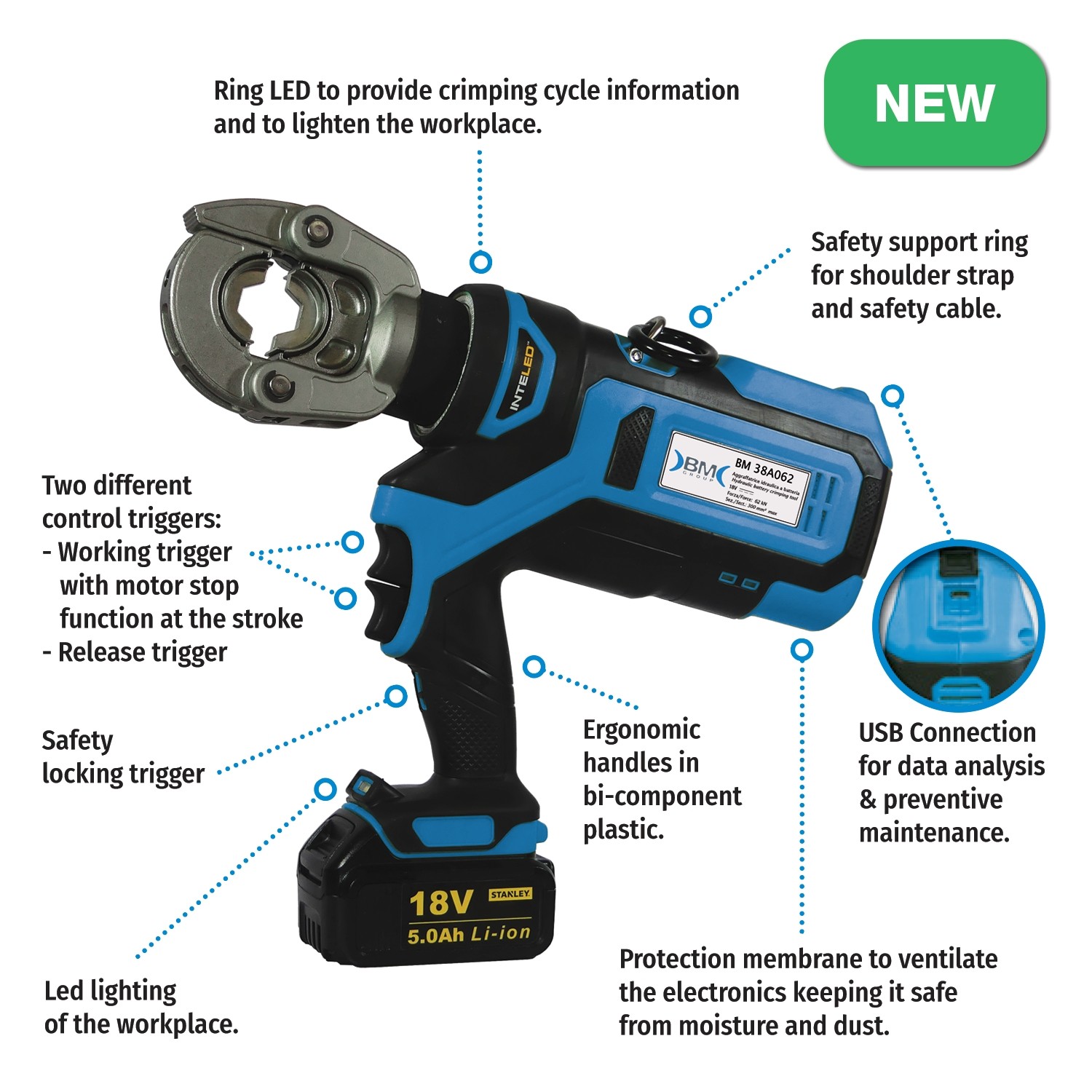

• ring LED to provide crimping cycle information and to lighten the workplace
• working trigger with motor stop function at the stroke
• release trigger
• ergonomic handles in bi-component plastic
• handling ring for transportation (strap) or safety cable
• USB connection for data analysis & preventive maintenance
• safety locking trigger
• protection membrane to ventilate the electronics keeping it safe from moisture and dust
• LED display panel for battery charge level, cycle conformity, maintenance
• electronic protection in case of overpressure
• quick motor stop function at crimping or cutting end for high user safety
• energy saving function for switching off the tool
• rimping speed improved by a high performance motor
• 2 hydraulic pump stages for improved fast advance

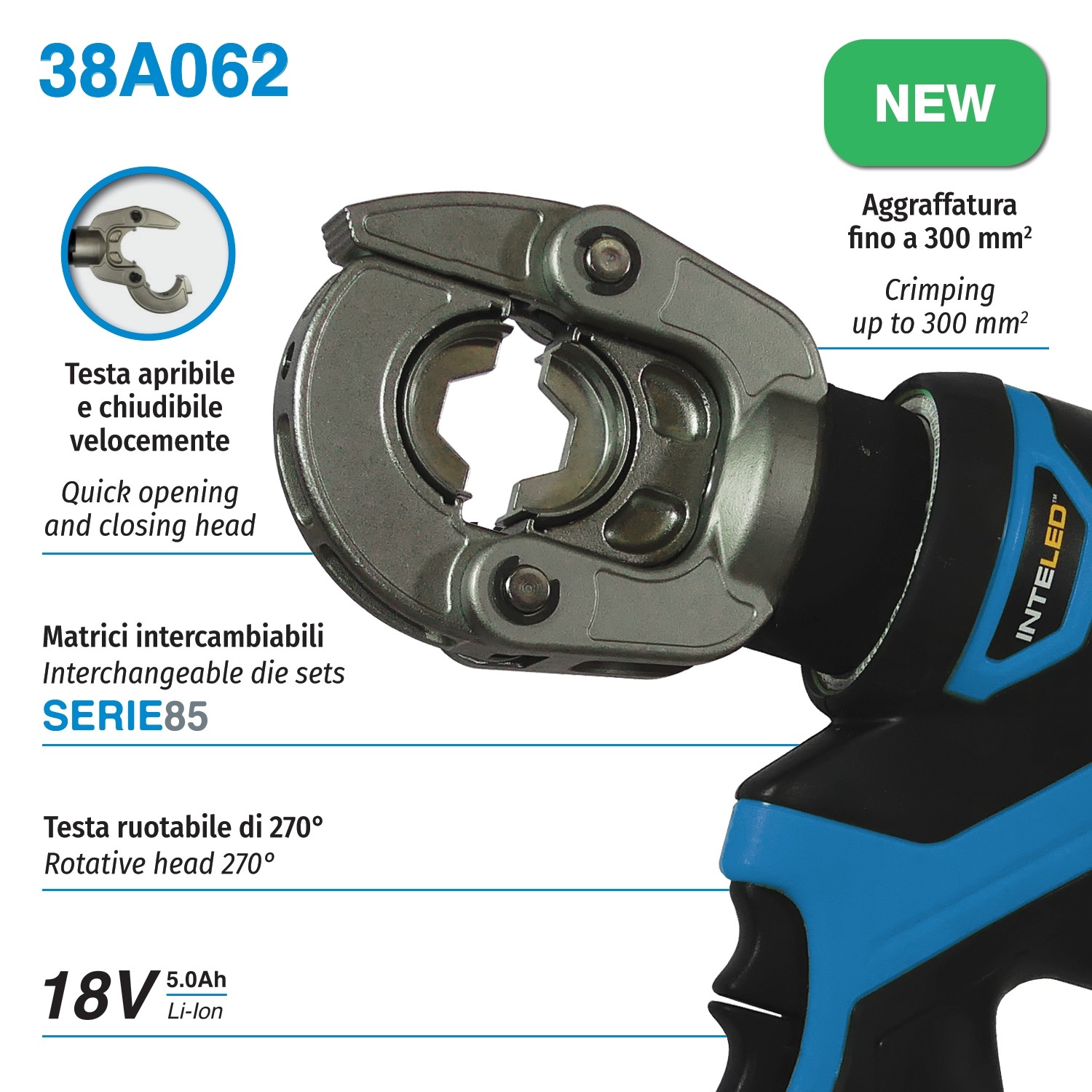

• quick opening & closing head
• dies retention spheres
• hexagonal crimping up to 300 mm²
• excellent ratio weight/capacity
• interchangeable die set
• rotative head 270°
| Product Category | hydraulic crimping tool |
| Bat | 13 mm |
| Crimping force at die level | 62 kN |
| Crimping time | from 3 to 5 s |
| Dies | 85 series |
| Battery | Stanley, Lithium, 18V 5.0Ah |
| Battery capacity | about 340 crimps (CU 185 mm²) |
| USB socket | Micro |
| Field of use | terminals
• Class 1,2,5 conductors from 10 to 300 mm²
• Class 6 conductors from 10 to 185 mm²
• DIN standard from 10 to 240 mm²
• NFC standard from 6 to 300 mm²
• Medium voltage from 25 to 300 mm²
• Aluminum and bimetallic from 16 to 240 mm²
• Insulated from 10 to 95 mm²
• C shunt from 10 to 50 mm²
• End-sleeves from 50 to 95 mm² |
| Etim 9 | EC000168 |
| cid | 31AA12B |
