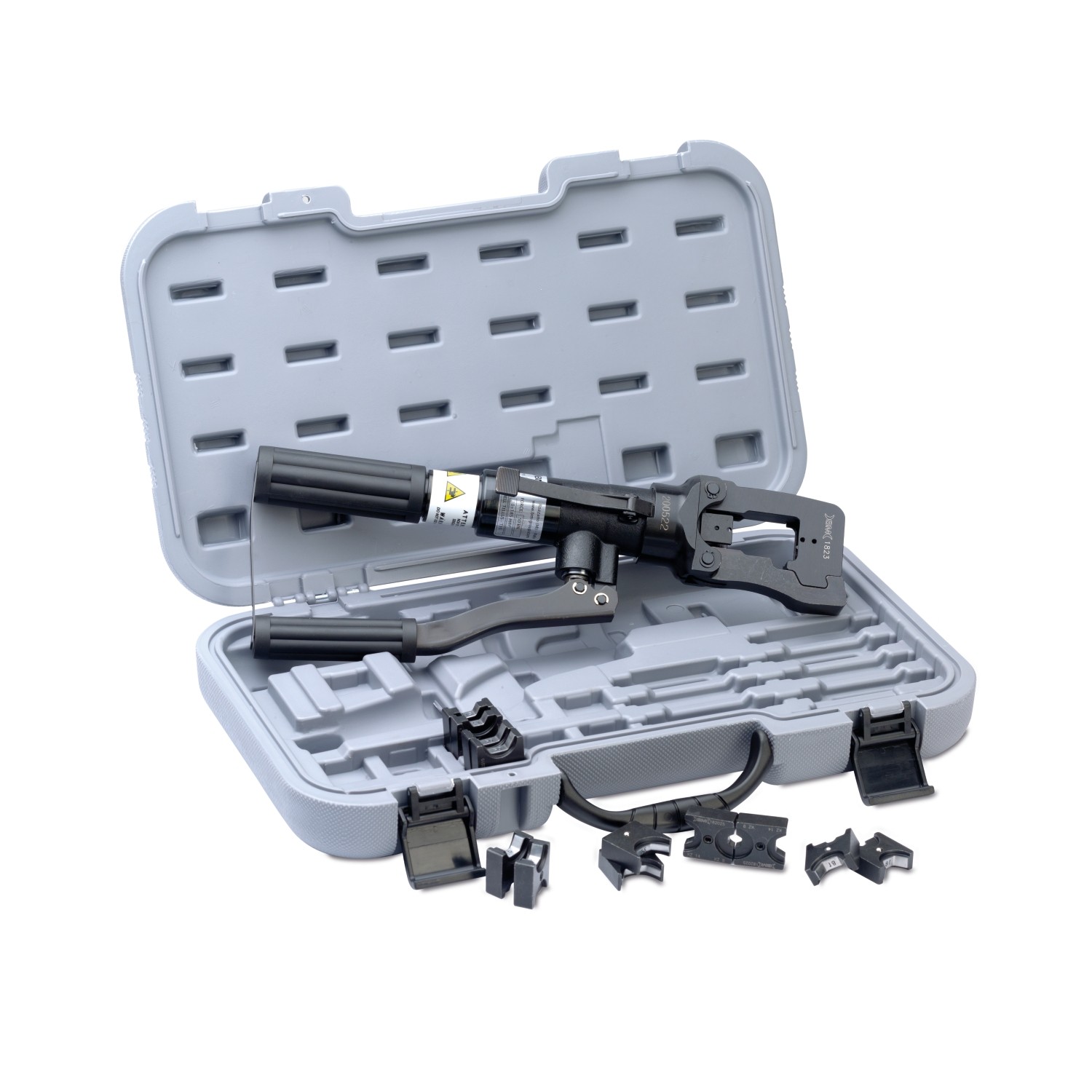

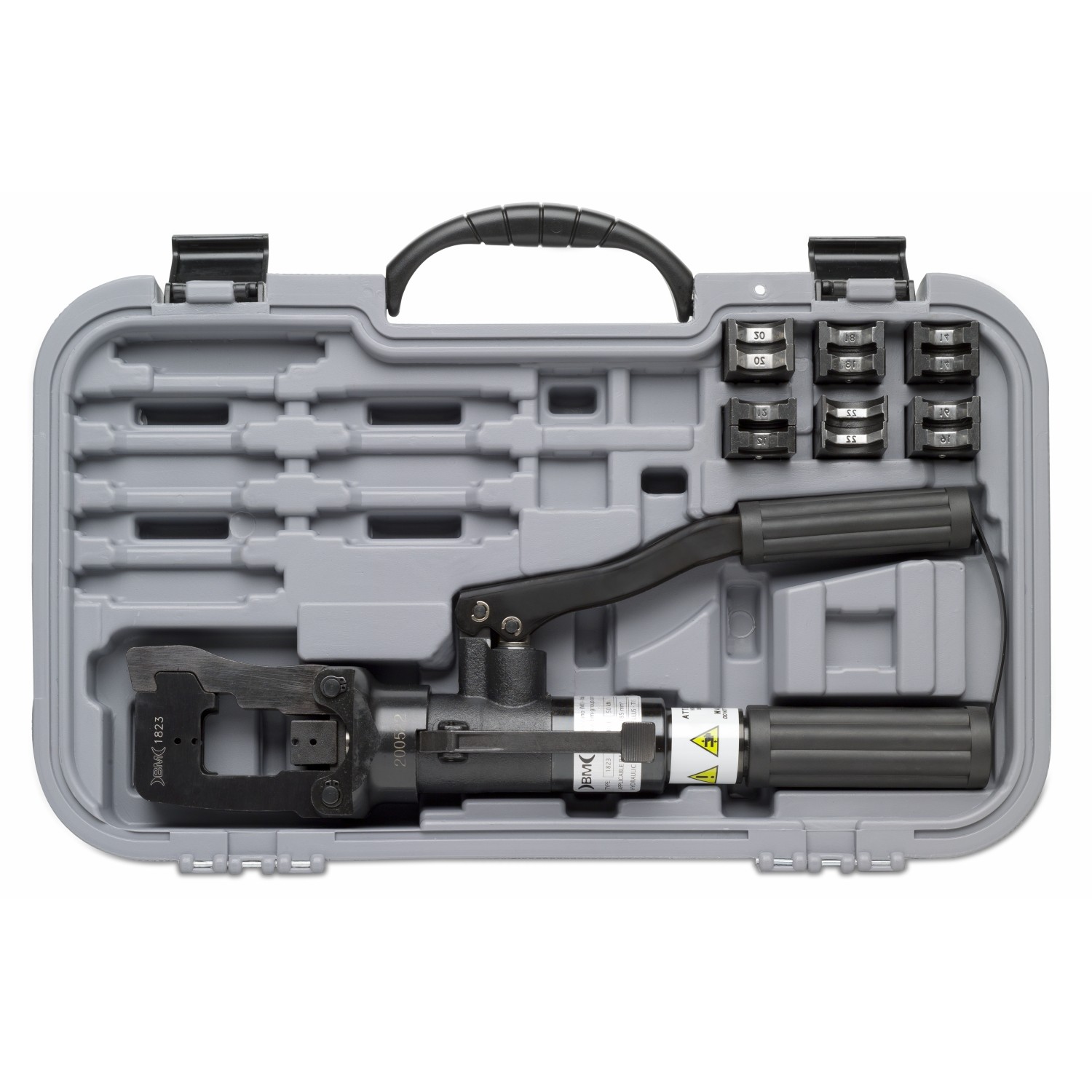

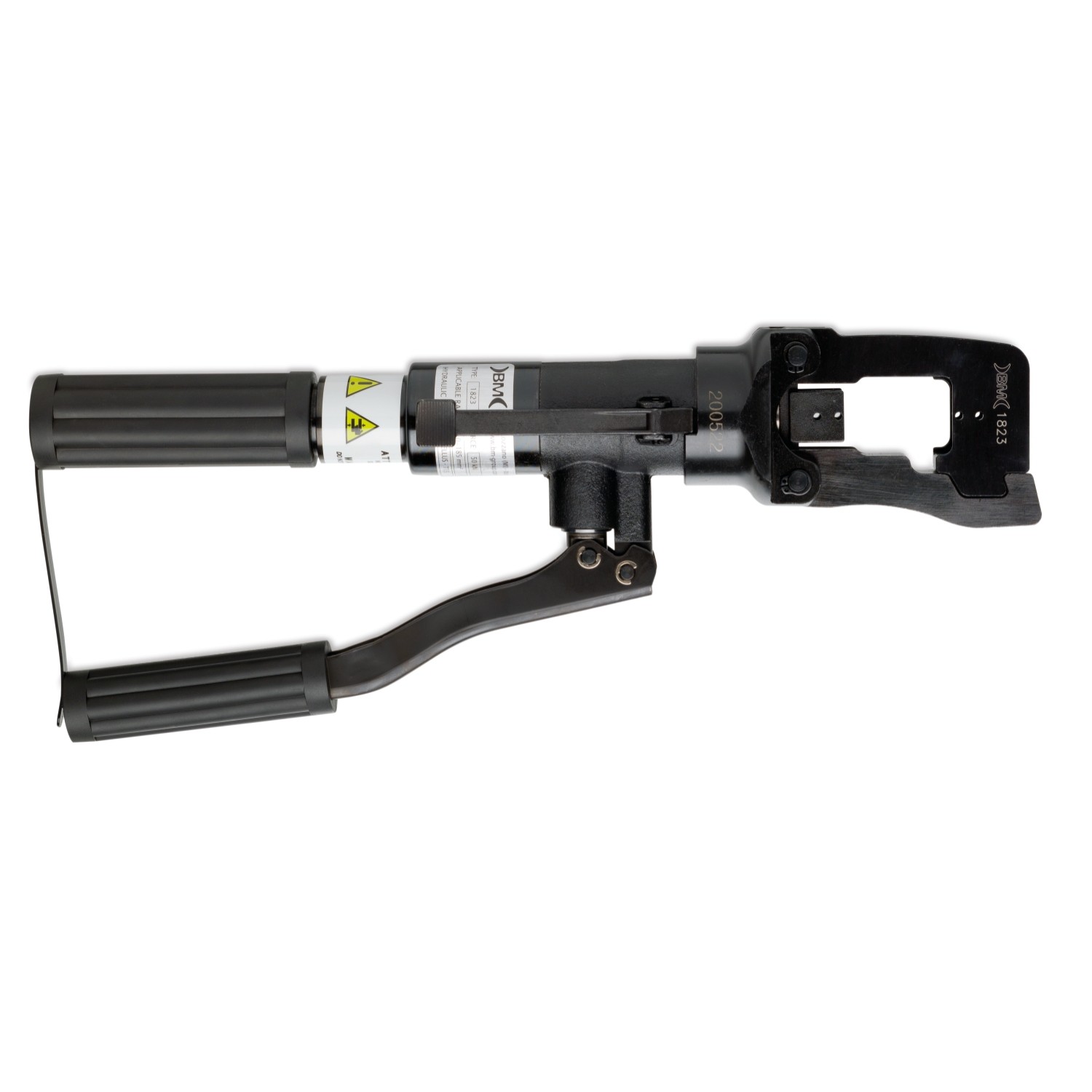

CRIMPING TOOL · HYDRAULIC · MANUAL · 50KN · DIES SERIES 82

• lateral snap opening for quick and easy die positioning
• 180° swivel head for easy crimping in narrow places
• two pistons advancement speeds: one for quickly matching die terminal, the other for crimping
• automatic end-of-work release device to guarantee the crimping quality
• release lever device to open the tool at the end of operation and in case of a wrong maneuver
Product Categoryhydraulic crimping tool
Crimping force at die level50 kN
Dies82 series
Field of useterminals
• uninsulated from 10 to 240 mm² (185 mm² for DIN)
• uninsulated class 6 and DIN from 10 to 185 mm²
• medium voltage from 25 to 150 mm²
• aluminum from 16 to 150 mm²
• bimetallic from 16 to 150 mm²
• bimetallic DIN from 16 to 150 mm²
• insulated from 10 to 95 mm²
• C shunt from 10 to 35 mm²
• end-sleeve from 50 to 150 mm²
Etim 9EC000168
cid31AA11M
PDF documents
Item
Code		 DescriptionLength
[mm]		Width
[mm]		Thickness
[mm]		Weight
[kg]		Pack size LxWxH
[mm]		 Quantity per
Wishlist
1823P kit including:
• 50 kN press
• carrying case		380140702450x280x80VA
1823A1 kit including:
• 50 kN press
• die set for uninsulated terminals from 10 to 150 mm²
• die set for C shunts from 16 to 35 mm²
• carrying case		380140702450x280x80VA
1823A2 kit including:
• 50 kN press
• die set for uninsulated terminals from 10 to 185 mm²
• carrying case		380140702450x280x80VA
1823A3 kit including:
• 50 kN press
• die set for uninsulated terminals from 10 to 240 mm²
• carrying case		380140702450x280x80VA
1823A4 kit including:
• 50 kN press
• die set for uninsulated DIN terminals (DIN 46235, 46234, 46267/1)
from 10 to 185 mm²
• carrying case		380140702450x280x80VA
