DIES SERIES 83

Product Category	dies
Surface finish	burnished
Material	steel + heat treatment
Series	83
Compatibility	• BM 183/183P (hydraulic manual crimping tool) • BM 383/37A055 (hydraulic battery crimping tool) • BM 283 (crimping head)
Etim 9	EC001282
cid	31AA11F

Coded items

Item Code	Crimping type	ID	Terminal type	Conductor material	Section [mm²]	Section [AWG/MCM]
183550			prerounding	copper and aluminium	50	(1/0)
183570			prerounding	copper and aluminium	70	(2/0)
183595			prerounding	copper and aluminium	95	(3/0)
183512			prerounding	copper and aluminium	120	(4/0)
183515			prerounding	copper and aluminium	150	(300)
183310	hexagonal	6 25	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	10 185	(8) (400)
183010	hexagonal	7 7 22 22 22 22	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper copper copper aluminium	10 10 185 150 120 ÷ 150 120	(8) (8) (400) (300) (4/0-300) (4/0)
183016	hexagonal	7.5 7.5 20 20 20 20 20	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201 for bimetallic uninsulated terminals	copper copper copper copper copper aluminium aluminium	16 16 150 120 95 70 35 ÷ 95	(6) (6) (300) (4/0) (3/0) (2/0) (2-3/0)
183316	hexagonal	8 22	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	16 150	(6) (300)
183025	hexagonal	9 9 18 18	for uninsulated copper terminals for class 6 uninsulated terminals for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper copper copper	25 25 120 95	(4) (4) (4/0) (3/0)
183325	hexagonal	10 10 20	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper copper	25 25 120	(4) (4) (4/0)
183035	hexagonal	11 11 16	for uninsulated copper terminals for class 6 uninsulated terminals for class 1, 2, 5 uninsulated terminals	copper copper copper	35 35 95	(2) (2) (3/0)

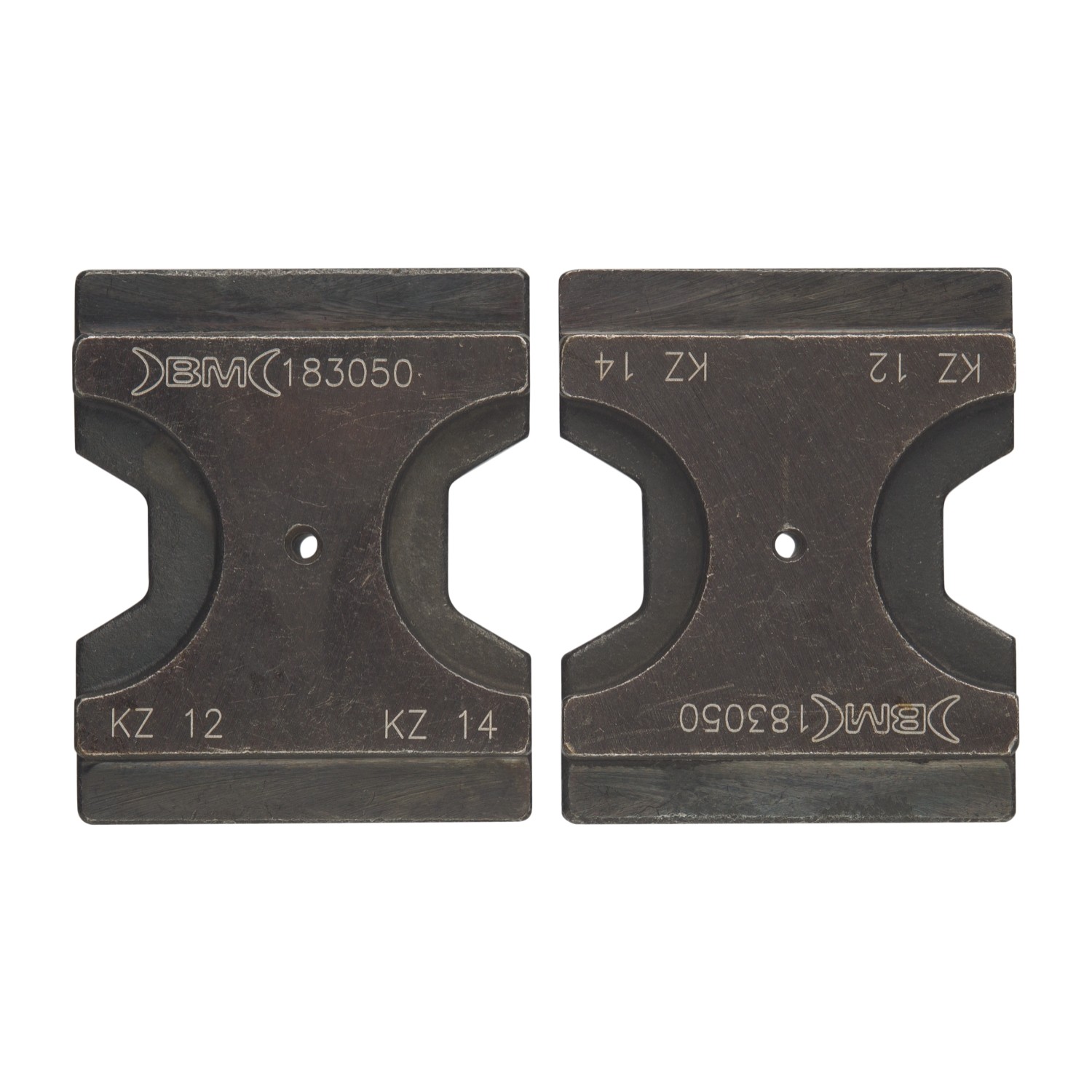

183050	hexagonal	12 12 12 14 14	for class 1, 2, 5 uninsulated terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201 for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper aluminium copper copper	50 35 ÷ 50 16 ÷ 25 70 70	(1/0) (2-1/0) (6-4) (2/0) (2/0)
183335	hexagonal	12 18	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	35 95	(2) (3/0)
183435	hexagonal	13 13	for class 6 uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper aluminium	50 35	(1/0) (2)
183350	hexagonal	14 16	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	50 70	(1/0) (2/0)
183450	hexagonal	15 15	for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium aluminium	16 ÷ 25 50	(6-4) (1/0)
183495	hexagonal	21	for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium	95	(3/0)
183024	hexagonal	25 25 25 25	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper aluminium aluminium	240 185 120 ÷ 150 150	(500) (400) (4/0-300) (300)
183324	hexagonal	28 28 28 28	for class 1, 2, 5 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium	300 240 240 ÷ 300 185	(600) (500) (500-600) (400)
183110	radial containment		for insulated terminals	copper	10	(8)
183116	radial containment		for insulated terminals	copper	16	(6)
183125	radial containment		for insulated terminals	copper	25	(4)
183135	radial containment		for insulated terminals	copper	35	(2)
183150	radial containment		for insulated terminals	copper	50	(1/0)
183170	radial containment		for insulated terminals	copper	70	(2/0)
183195	radial containment		for insulated terminals	copper	95	(3/0)
183210	oval		for C shunts	copper	10	(8)
183225	oval		for C shunts	copper	16 ÷ 25	(6-4)
183235	oval		for C shunts	copper	35	(2)
183270	oval		for C shunts	copper	50 ÷ 70	(1/0-2/0)
183295	oval		for C shunts	copper	95	(3/0)
183650	trapezoidal		for end-sleeve terminals	copper	50	(1/0)
183670	trapezoidal		for end-sleeve terminals	copper	70	(2/0)
183695	trapezoidal		for end-sleeve terminals	copper	95	(3/0)
183612	trapezoidal		for end-sleeve terminals	copper	120	(4/0)
183615	trapezoidal		for end-sleeve terminals	copper	150	(300)
183704	hexagonal		for NFC terminals for NFC terminals	copper copper	4 120	(12) (4/0)
183706	hexagonal		for NFC terminals for NFC terminals	copper copper	6 35	(10) (2)
183710	hexagonal		for NFC terminals for NFC terminals	copper copper	10 50	(8) (1/0)
183716	hexagonal		for NFC terminals for NFC terminals	copper copper	16 70	(6) (2/0)
183725	hexagonal		for NFC terminals for NFC terminals	copper copper	25 95	(4) (3/0)
183715	hexagonal		for NFC terminals	copper	150	(300)
183718	hexagonal		for NFC terminals	copper	185	(400)
183724	hexagonal		for NFC terminals	copper	240	(500)
