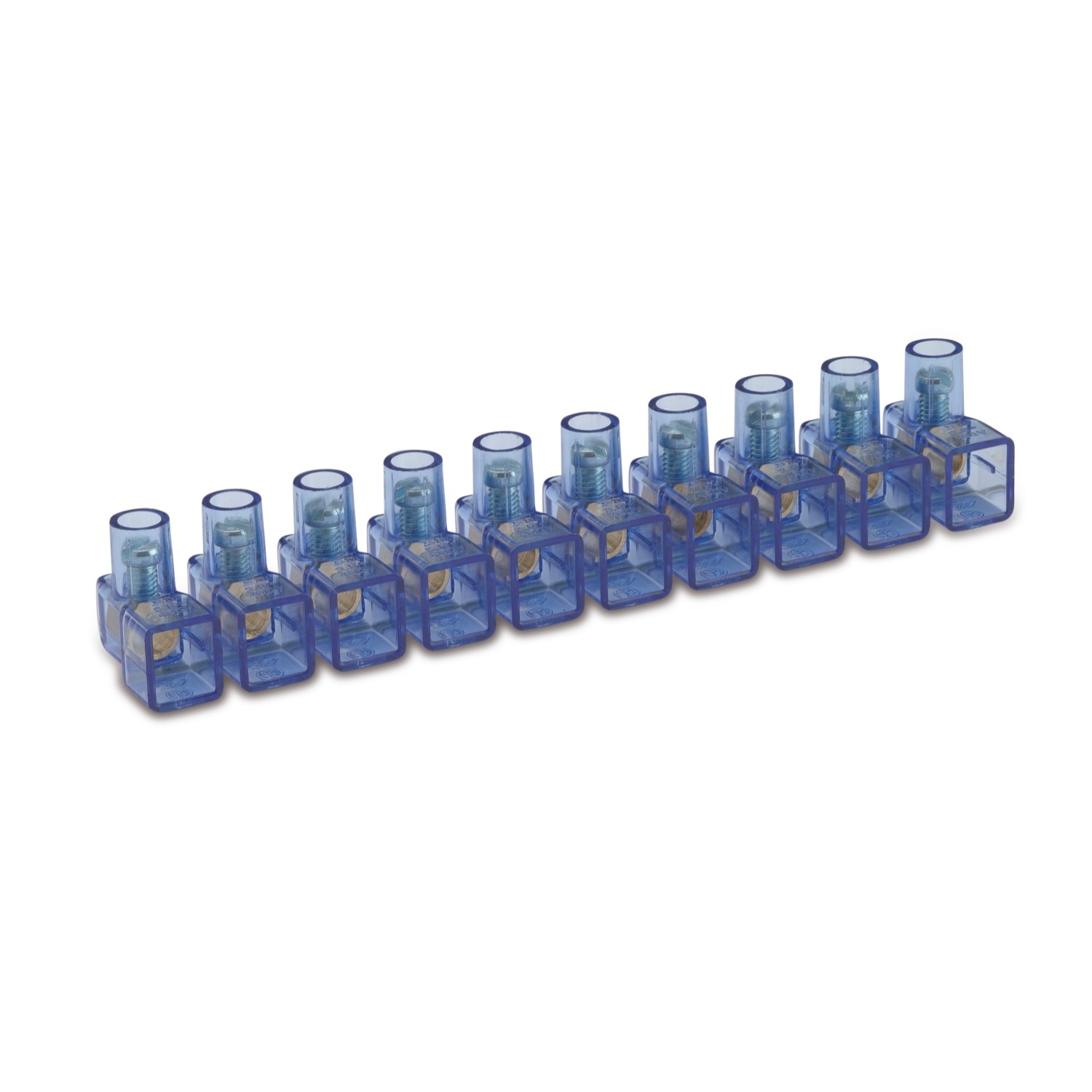

ONE-WAY TERMINAL BLOCKS · END CONNECTORS · BARS

Product Categoryterminal blocks for free connections
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodybrass
Captive screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max operating temperature85 °C
Protection gradeIP20
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9EC001284
cid41MB01A
Images with
dimensions
Item
Code
Conductor section
[mm²]
Connection capability
Section
[mm²]
Connection capability
N. rigid conductors
Connection capability
N. flexible conductors
Rated voltage
[V]
Test current
[A]
ScrewD1
[mm]
L1
[mm]
W1
[mm]
S1
[mm]
Ways Quantity per
Wishlist
991 1.51.5
1
0.75
2
2 ÷ 3
2 ÷ 4
2
2 ÷ 3
2 ÷ 4
45018M33,17,51514,51010/1000
992 2.52.5
1.5
1
2
2 ÷ 3
2 ÷ 4
2
2 ÷ 3
2 ÷ 4
45024M3.54,1917,518,21010/600
9924 44
2.5
1.5
2
2 ÷ 3
2 ÷ 4
2
2 ÷ 3
2 ÷ 4
45032M44,510,321201010/400
993 66
4
2.5
2
2 ÷ 3
2 ÷ 4
2
2
2 ÷ 4
45041M4611,822,5231010/300
994 1010
6
4
2
2 ÷ 3
2 ÷ 4
2
2
2 ÷ 4
45057M67,914,726261010/200
995 1616
10
6
2
2 ÷ 3
2 ÷ 4
2
2
2 ÷ 3
45076M810,518,831,832,21010/100
