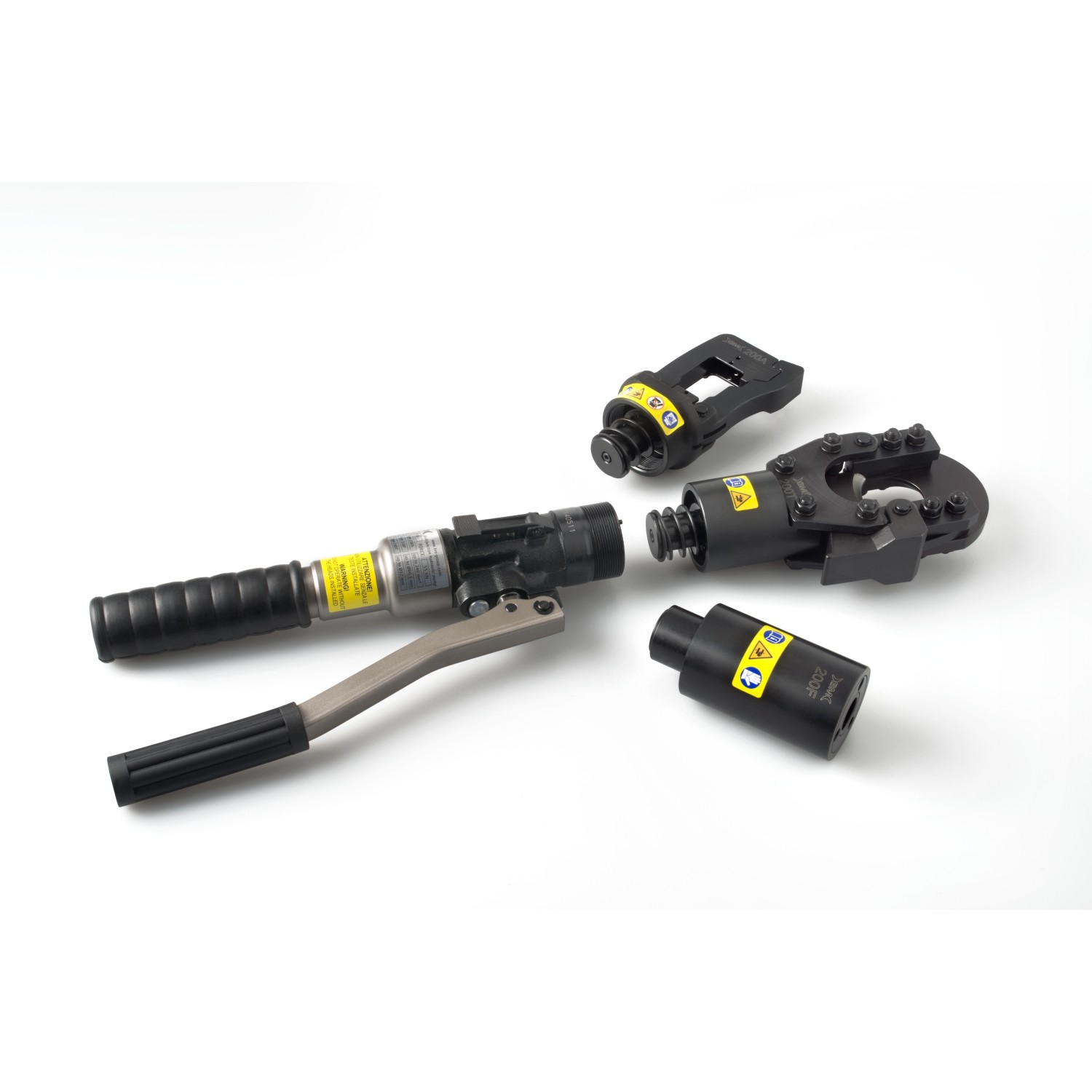

MULTI-HEAD HYDRAULIC PRESS WITH CRIMPING, CUTTING AND PUNCHING HEADSTOCKS

Product was successfully added to your shopping cart.

MULTI-HEAD HYDRAULIC PRESS WITH CRIMPING, CUTTING AND PUNCHING HEADSTOCKS

CRIMPING HEADSTOCK · FOR MULTI-HEAD PRESS · UP TO 185 mm² (SERIES 82)

• interchangeable headstocks
• two pistons advancement speeds, one for quick approach, the other for operation
• automatic end-of-work release device to guarantee crimping/cutting/punching quality
• release device activated by a button to open the tool at the end of the operation and in case of a wrong maneuver

Product Category	multi-head hydraulic press
Force	50 kN
Crimping head	see 200A headstock
Cable/wire rope cutters tool head	see 200T headstock
Punching head	see 200F headstock
Etim 9	EC000142 (200PT) EC000168 (200, 200PA) EC001085 (200PF)
cid	31AD01A

Coded items

Item
Code Description Length
[mm] Width
[mm] Thickness
[mm] Weight
[kg] Pack size LxWxH
[mm]  Quantity per
Wishlist

200

assortment

370

125

8,3

480x380x180

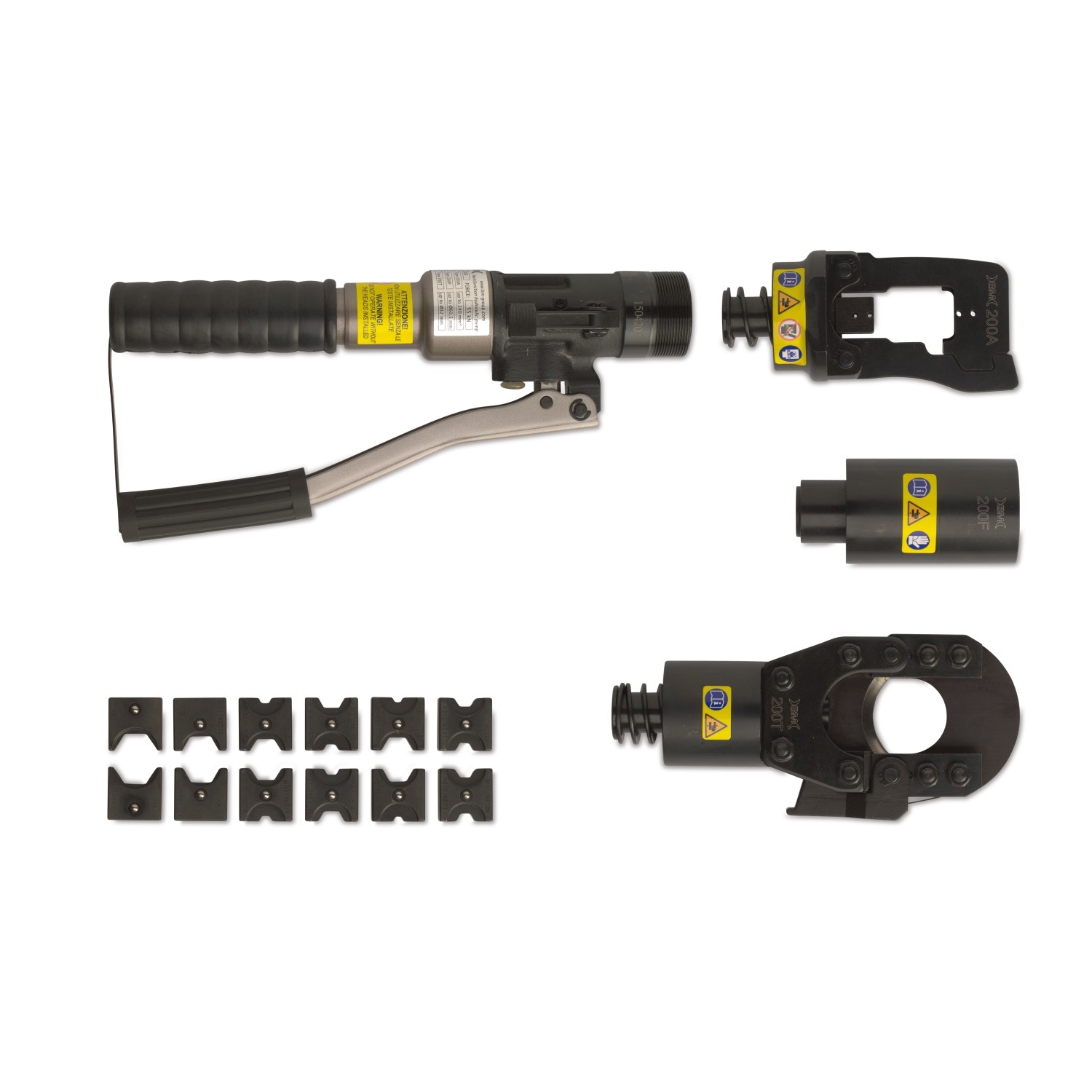

Component	Art.	Description

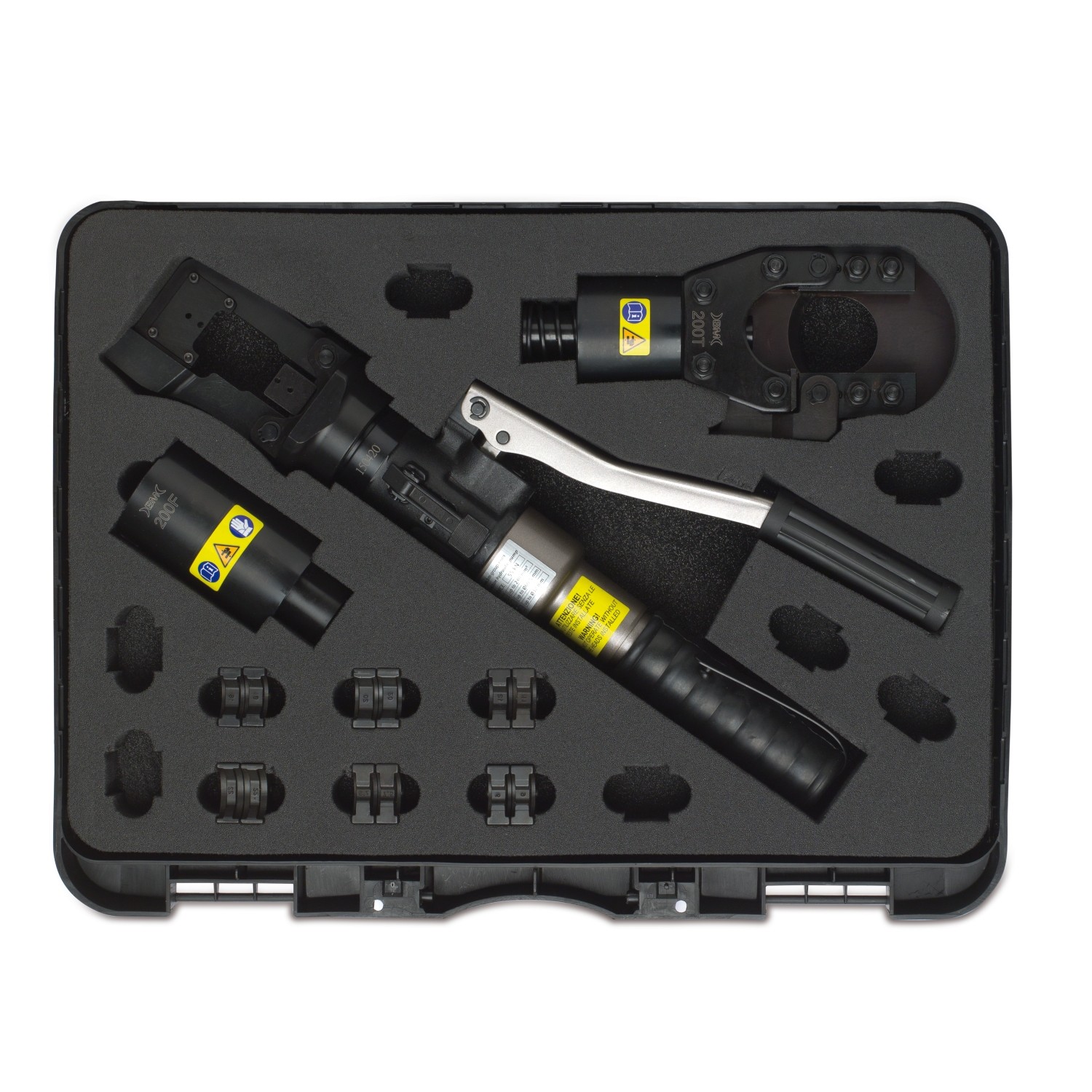

200P		Hydraulic press and case
200A	31AA13A	Crimping head including dies-set for uninsulated terminals 10 ÷ 185 mm²
200T	31AB04A	Cable/wire rope cutter head
200F	31AC06A	Metal sheets driller

200PA

assortment

430

120

3,7

480x380x180

Image	Component	Art.	Description
	200P		Hydraulic press and case
	200A	31AA13A	Crimping head including dies-set for uninsulated terminals 10 ÷ 185 mm²

200PF

assortment

400

120

3,8

480x380x180

Image	Component	Art.	Description
	200P		Hydraulic press and case
	200F	31AC06A	Metal sheets driller

200PT

assortment

500

120

480x380x180

Image	Component	Art.	Description
	200P		Hydraulic press and case
	200T	31AB04A	Cable/wire rope cutter head
