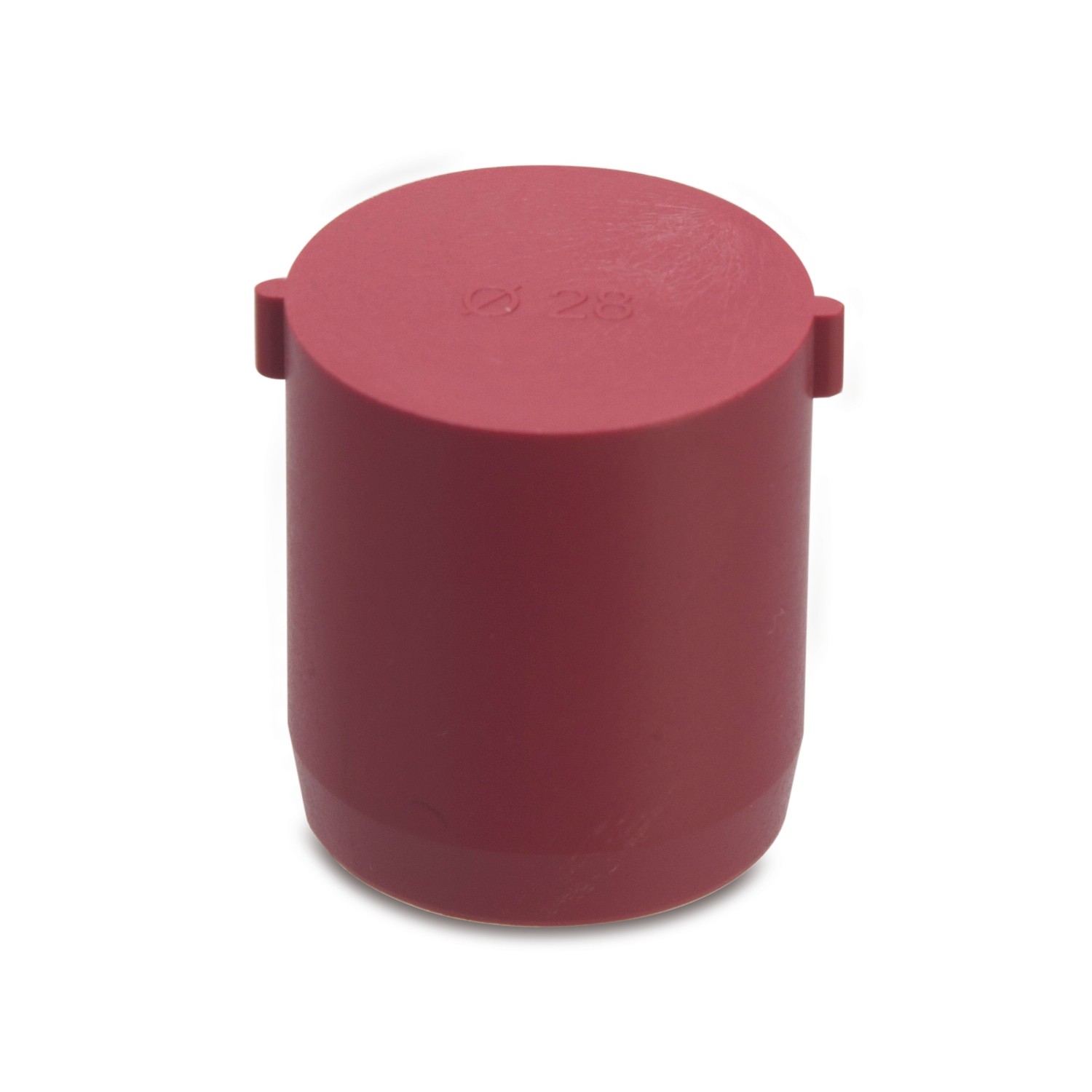

ACCESSORIES FOR NYLON CABLE GLANDS: IP68 STOP-ENDS

ACCESSORIES FOR NYLON CABLE GLANDS: PG THREAD · FLAT GASKETS

Product Category	accessories
Material	red polyamide
Operating temperature	from -40 °C to +100 °C
Applications	suitable to close IP68 nylon and brass cable gland holes
Assembly	insert the plug with the end-stop wings on the cable gland gasket and tighten
Tightening torque	1 N/m
Etim 9	EC002265
cid	22PC01B

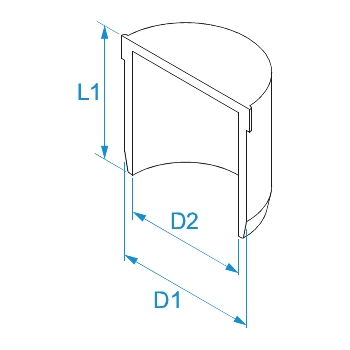

Images with
dimensions

Coded items

Item Code	D1 [mm]	D2 [mm]	L1 [mm]	Suitable for cable glands with thread Metric	Suitable for cable glands with thread PG		Quantity per Wishlist
4206	6	2,8	16	M12 M16 M20	PG7 PG9 PG11 PG13.5	50/1750
4213	13	8,5	22	M25	PG16 PG21	50/1750
4220	20	14,5	22	M32 M40	PG29	25/875
4228	28	22	30		PG36	25/875
4238	38	32	35	M50 M63	PG42 PG48	10/350
