[OLD] CRIMPING TOOL · HYDRAULIC · MANUAL · 50KN · DIES SERIES 82

[OLD] CRIMPING TOOL · HYDRAULIC · MANUAL · 125KN · DIES SERIES 84

Replaced by
• 182P --> 1823P
• 182 --> 1823A1
• 1823 --> 1823A2
• 1824 --> 1823A3

FEATURES:
• lateral snap opening for quick and easy die positioning
• 180° swivel head for easy crimping in narrow places
• automatic end-of-work release device to guarantee the crimping quality
• release lever device to open the tool at the end of operation and in case of a wrong maneuver

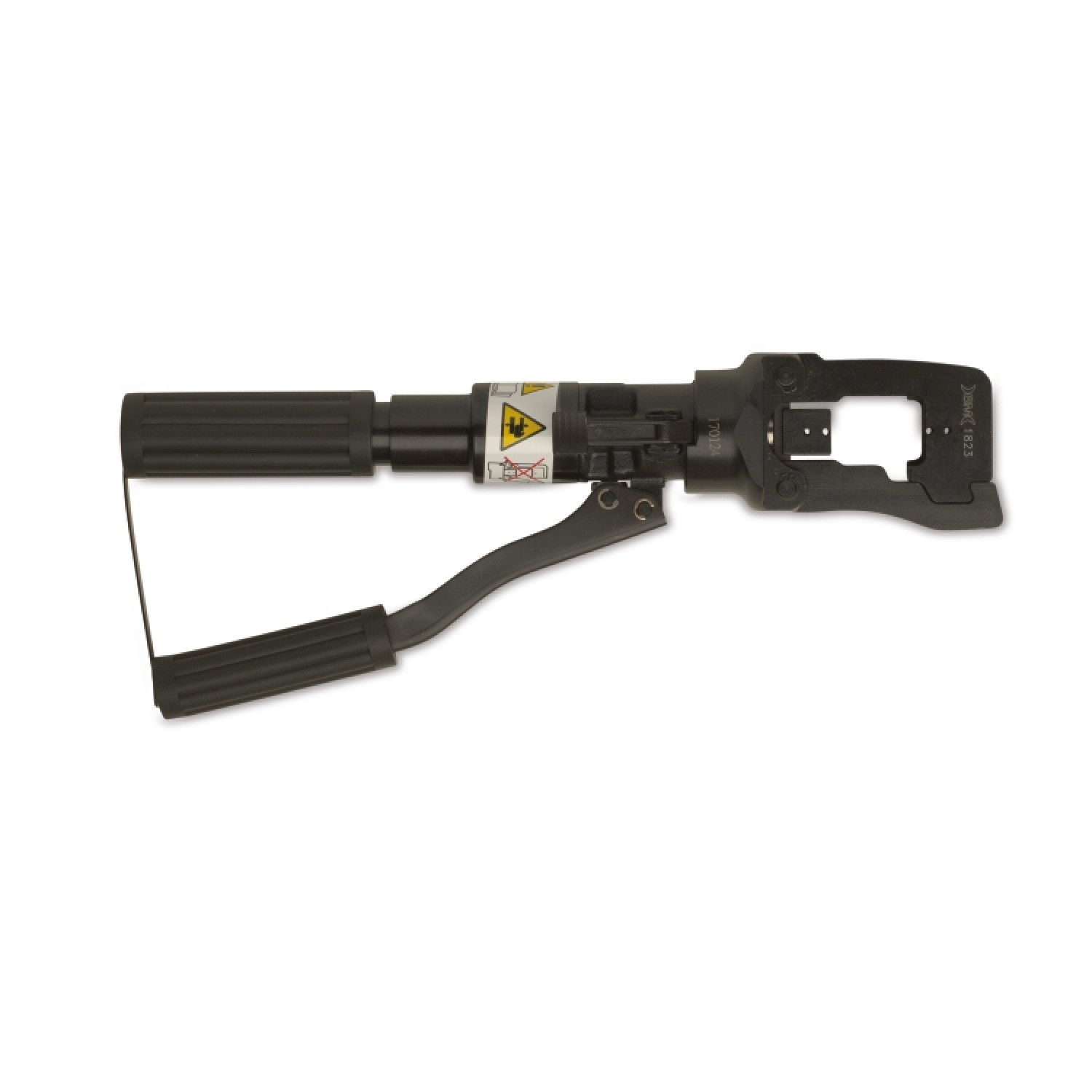

Product Category	hydraulic crimping tool
Crimping force at die level	50 kN
Dies	82 series
Field of use	terminals• uninsulated from 10 to 240 mm² (180 mm² for DIN)• uninsulated class 5 and DIN from 10 to 185 mm²• medium voltage from 25 to 150 mm²• aluminum from 16 to 150 mm²• bimetallic from 16 to 150 mm²• bimetallic DIN from 16 to 150 mm²• insulated from 10 to 95 mm²• C shunt from 10 to 35 mm²• end-sleeve from 50 to 150 mm²
Etim 9	-
cid	31AA11A

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]	
182	kit including: • 50 kN press • die set for uninsulated terminals from 10 to 150 mm² • die set for C shunts from 16 to 35 mm² • carrying case	370	125	50	2	450x300x100	VA
182P	50 kN press with carrying case	370	125	50	2	450x300x100	VA
1824	kit including: • 50 kN press • die set for uninsulated terminals from 10 to 240 mm² • carrying case	370	125	50	2	450x300x100	VA
1823	kit including: • 50 kN press • die set for uninsulated terminals from 10 to 185 mm² • carrying case	370	125	50	2	450x300x100	VA
