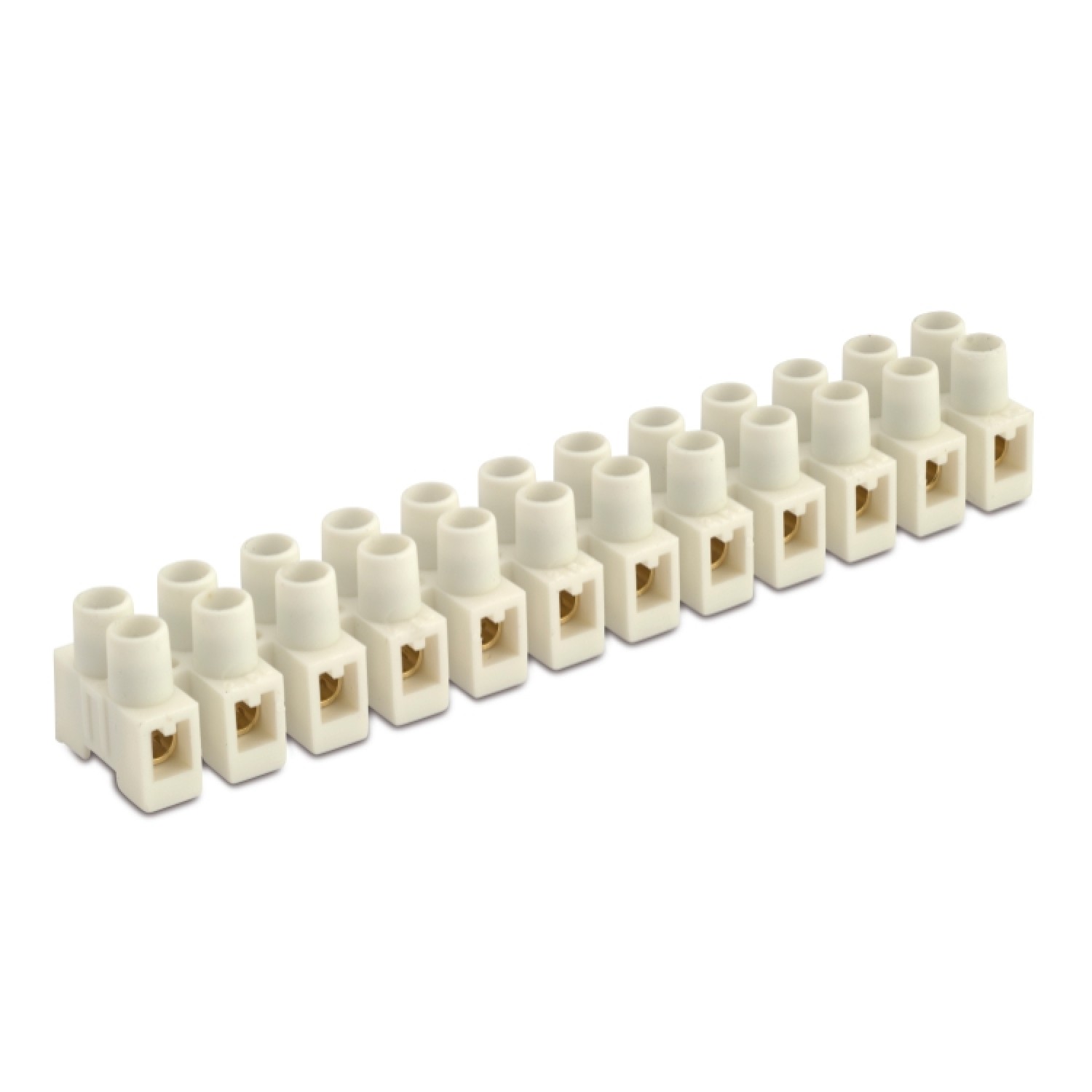

MULTIWAY TERMINAL BLOCKS · POLYPROPYLENE · 12 WAYS · 920 SERIES

Product Category	multiway terminal blocks
Insulating housing	polypropylene (PP) natural color
Conductive body	brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Test voltage	2500 V (9200, 9201, 9202, 9203), 3000 V (9204)
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004, EN 60335-1: 2002 + A2: 2006 (Par. 30.2.3), IEC/EN 60695-2-11
Etim 9	EC001284
cid	41MA01A

Images with
dimensions

Coded items

Item Code	Section [mm²]	Color	Rated voltage [V]	Test current [A]	Stripping length [mm]	Screw	Torque [Nm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
9200	2,5	Natural	400	24	5	M3	0,25	93,7	8	5,6	2,4	16	6	14,7	9	3	2,2	50/700
9201	4	Natural	400	32	7	M3	0,25	116,5	10	6	4	20,5	10	17,2	9,5	3,1	3,1	50/500
9202	6	Natural	400	41	7,5	M3.5	0,4	139,5	12	7,5	4,5	23,5	10	20,1	11,8	4,2	3,6	50/300
9203	16	Natural	450	76	8,5	M4	0,7	175,5	15	10,5	4,4	25,3	11	22,5	13	6	4,1	25/200
9204	25	Natural	500	101	11,5	M5	0,8	228	19,5	14	5,3	35,2	15	33,5	19	7,2	4,1	10/80
