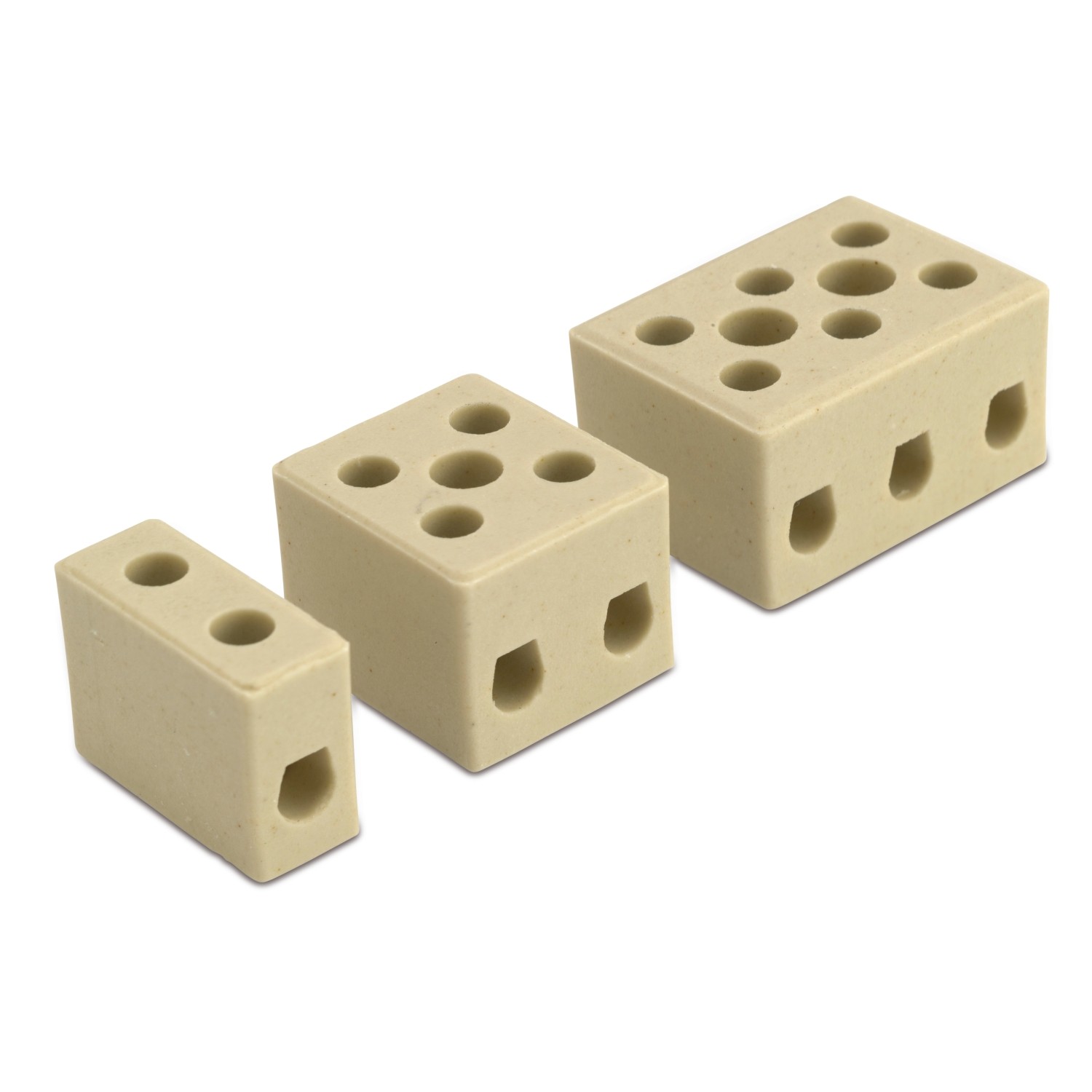

MULTIWAY TERMINAL BLOCKS · STEATITE

Terminal blocks for high temperature applications

Product Category	multiway terminal blocks
Insulating housing	steatite
Conductive body	brass
Screw	galvanized steel
Conductor type	rigid and flexible
Mounting hole	through hole (no threaded)
Max operating temperature (metallic parts)	300 °C
Max operating temperature (insulating housing)	1000 °C
Rated voltage	450 V
Protection grade	IP00
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MA12A

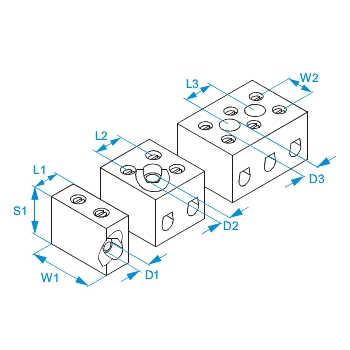

Images with
dimensions

Item Code	Section [mm²]	Ways	Test current [A]	Screw	Torque [Nm]	L1 [mm]	L2 [mm]	L3 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
9516	4	1	32	M3	0,25	10			25	10	18,5	3,1			117/117
9517	4	2	32	M3	0,25	22	11,5		25	10	18,5	3,1	4,1	5,8	54/54
9518	4	3	32	M3	0,25	34	11,5	11,5	25	10	18,5	3,1	4,1	6,5	36/36
9519	6	1	41	M3.5	0,4	11			26	10	20,5	4,2			117/117
9520	6	2	41	M3.5	0,4	24	12,5		26	10	20,5	4,2	4	5,8	54/54
9521	6	3	41	M3.5	0,4	37	12,5	12,5	26	10	20,5	4,2	4	7,3	36/36
9522	16	1	76	M4	0,7	15			32,5	13	23	6			54/54
9523	16	2	76	M4	0,7	30	14,8		32,5	13	23	6	4	6,9	27/27
9524	16	3	76	M4	0,7	45	14,8	14,8	32,5	13	23	6	4,1	7,9	18/18
