PDF documents
Images with

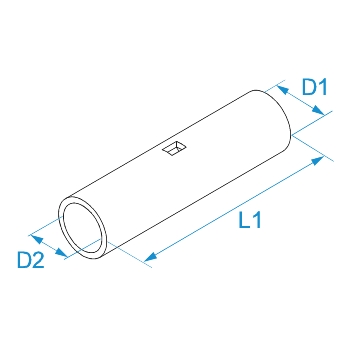

dimensions
dimensions
| Item Code |
Section[mm²] | Section[AWG/kcmil] | Indent | L1[mm] | D1[mm] | D2[mm] | | CAD FILE | Quantity per Wishlist |
|---|---|---|---|---|---|---|---|---|---|
| 01160* | 0.25 ÷ 1.5 | (22 - 16) | - | 15 | 3,3 | 1,8 | 200/2000 | 3D | |
| 01260* | 1.5 ÷ 2.5 | (16 - 14) | - | 15 | 4,1 | 2,5 | 200/2000 | 3D | |
| 01360* | 4 ÷ 6 | (12 - 10) | - | 15 | 5,5 | 3,7 | 100/1000 | 3D | |
| 01460* | 10 | (8) | 7 | 25 | 7 | 5 | 100/100 | 3D | |
| 01560 | 16 | (6) | 7,5 | 28 | 8 | 6 | 100/100 | 3D | |
| 01660 | 25 | (4) | 9 | 28 | 9,5 | 7 | 100/100 | 3D | |
| 01760 | 35 | (2) | 11 | 36 | 11,5 | 8,5 | 100/100 | ||
| 01860 | 50 | (1/0) | 12 | 36 | 13 | 10 | 50/50 | ||
| 01960 | 70 | (2/0) | 14 | 45 | 15 | 12 | 50/50 | ||
| 03160 | 95 | (3/0) | 16 | 46 | 17 | 13,8 | 50/50 | ||
| 03260 | 120 | (4/0) | 18 | 50 | 19,5 | 15,5 | 50/50 | ||
| 03360 | 150 | (300) | 20 | 60 | 21 | 17 | 25/25 | ||
| 03460 | 185 | (400) | 22 | 64 | 24 | 19 | 25/25 | ||
| 03560 | 240 | (500) | 25 | 73 | 27 | 21,5 | 25/25 | ||
| 03660 | 300 | (600) | 28 | 75 | 30 | 24 | 25/25 | ||
| 03760• | 400 | (800) | 35 | 85 | 35 | 27 | 10/10 | ||
| 03860• | 500 | (1000) | 38 | 97 | 38 | 30 | 10/10 | ||
| 03960• | 600/630 | (1250) | 42 | 104 | 42 | 33,6 | 10/10 |
