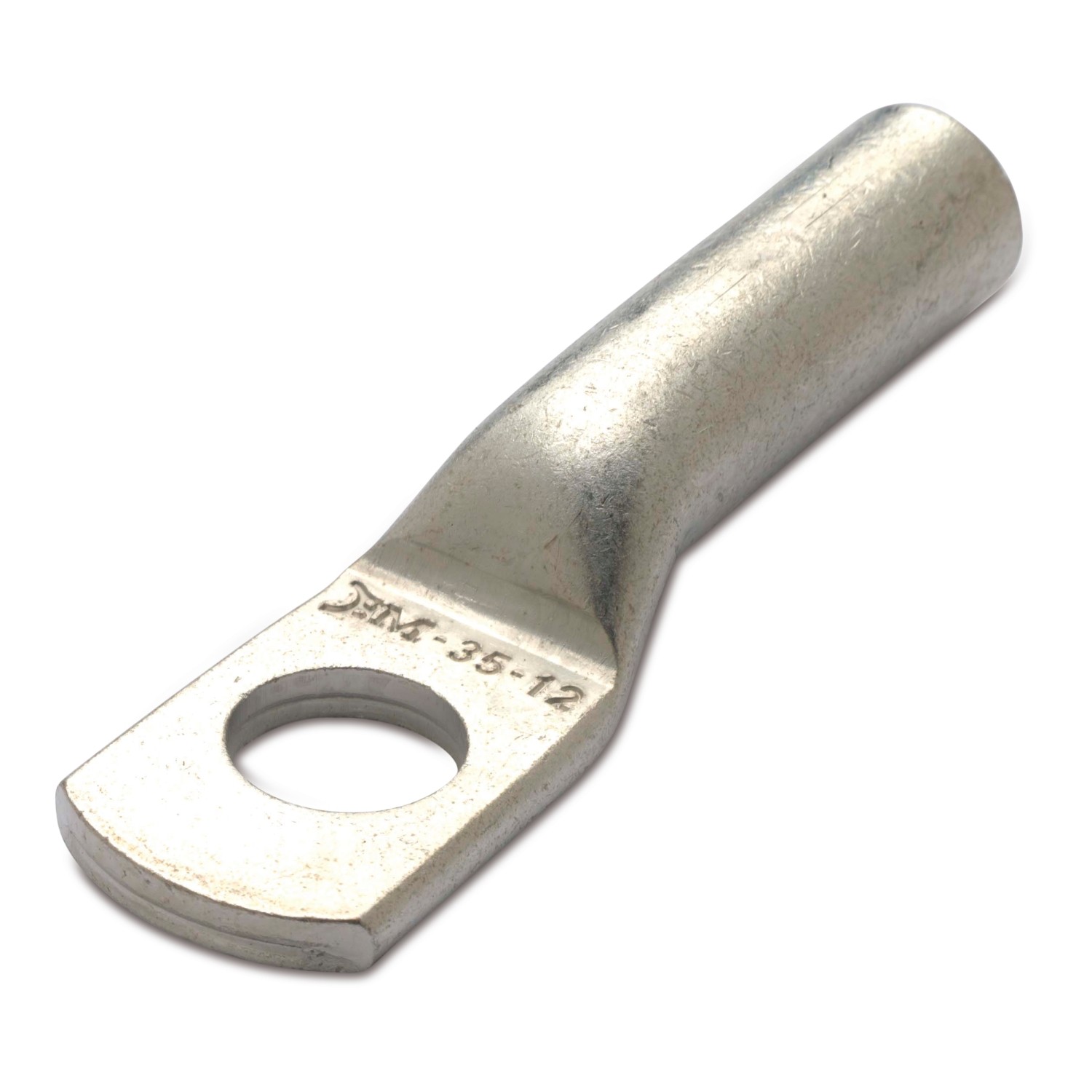

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · MEDIUM VOLTAGE

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · MEDIUM VOLTAGE · DOUBLE HOLE

Product Category	terminal lugs
Terminal material	tinned copper
Rated voltage	from 1 kV to 35 kV AC
Operating temperature	from -50 °C to +150 °C
Conductor class	Class 2 (stranded non compacted circular, compacted circular and shaped conductors) according to EN 60228
Inspection hole	no
Etim 9	EC001051
cid	11TA05A

Images with
dimensions

Coded items

Item Code	Conductor section no compacted circular or shaped [mm²]	Conductor compacted circular section [mm²]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
73025	25	35	8	5/16"	10	16,5	72	37	11	13	10	7	8,4	25/25
73125	25	35	12	1/2"	10	20	76	37	13	16	10	7	13	25/25
73035	35	-	12	1/2"	12	23	76	36	13	16	13	8,4	13	25/25
73050	50	-	12	1/2"	12	20	77	35	17,5	13,5	13	9,5	13	25/25
73070	70	-	12	1/2"	16	27	82	37,5	16	14	18	11,5	13	25/25
73095	95	-	12	1/2"	20	28	86,5	43	16	14	20	13,5	13	25/25
73120	120	150	12	1/2"	22	32	93,5	49,5	16	14	23	15,3	13	25/25
73150	150	160	12	1/2"	22	34	100	49	16	13	23,5	17	13	10/10
73200	185	240	14	9/16"	28	41,5	103	54	18	16	30	20	15	10/10
73240	240	300-315	14	9/16"	28	43	103	53	18	16	30	21,8	15	10/10
73300	300	-	14	9/16"	28	43	120	58	23	19	30	24	15	10/10
73400	400	-	14	9/16"	35	50	131	66	23	19	35	27	15	10/10
73500	500	-	16	5/8"	38	54,5	147	68	22	19	38	30	17	5/5
73630	630	-	16	5/8"	42	61	163	83	25	23	42	33,6	17	5/5
