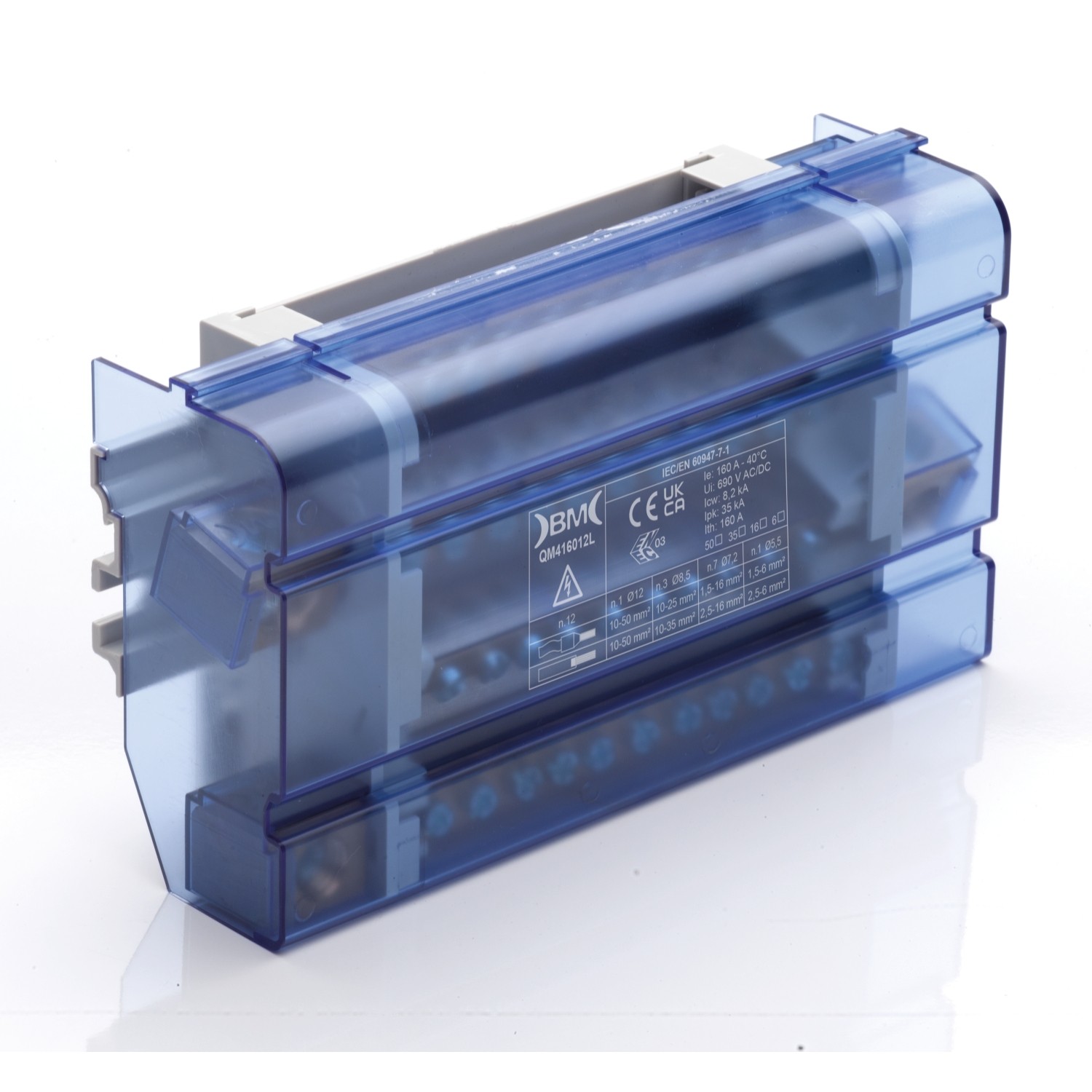

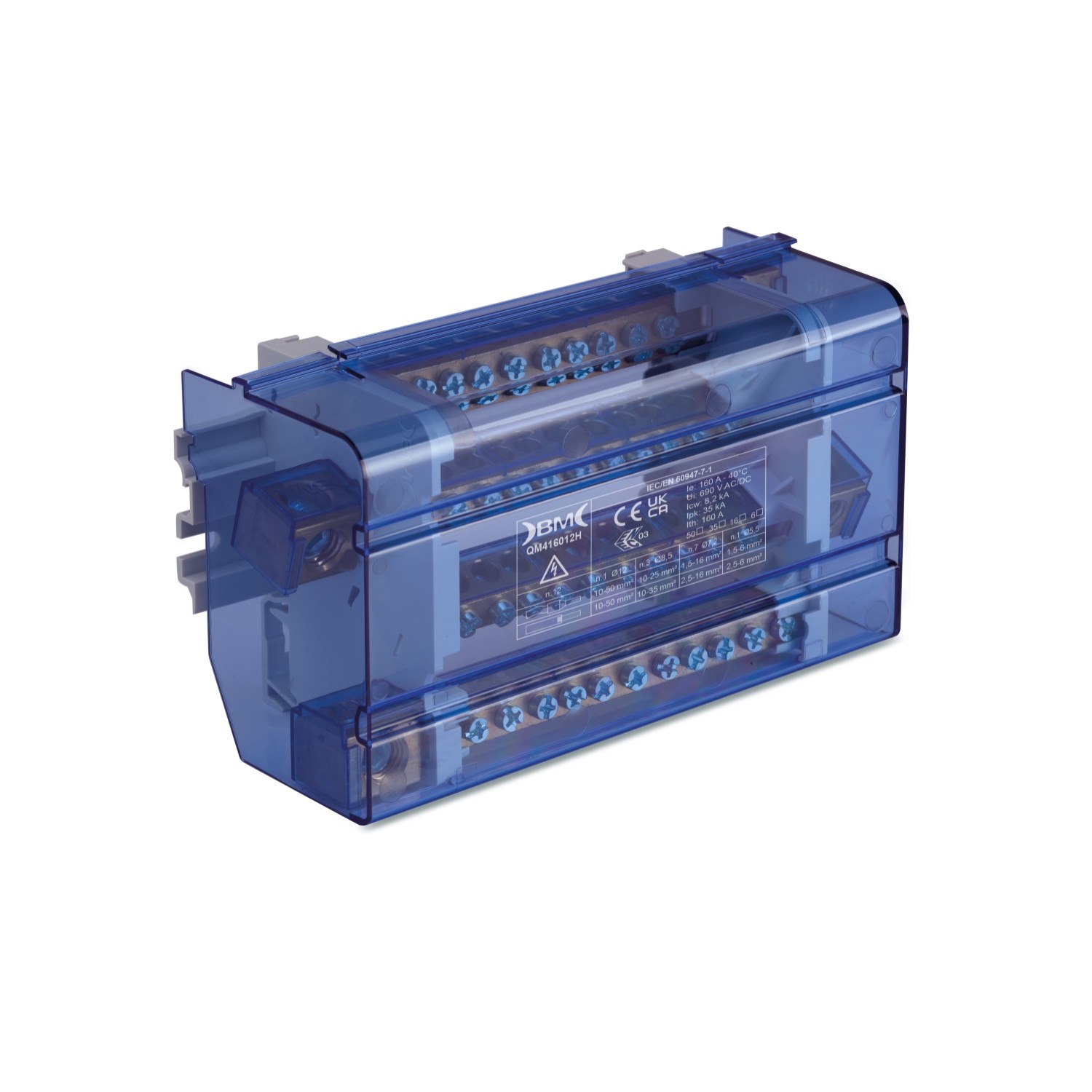

DISTRIBUTION BLOCKS · 4-WAYS · 160A

New
Product Categorymodular terminal blocks
Insulating housingpolycarbonate (PC) UL 94 V0
Protectionstransparent polycarbonate (PC) UL 94 V0
Connection barsbrass
Screwsgalvanized steel
Insulation self-extinguishingIEC/EN 60695-2-11 at 850 °C
Ambient Temperature40 °C
Rated insulation voltage690 V
Pollution degree3
According to std.IEC/EN 60947-7-1
Etim 9EC001894
cid41MC01I
PDF documents
Images with
dimensions
Item
Code		 Rated Current In
[A]		Short-Time Current Icw
[kA]		Peak Current Ipk
[kA]		Connections for way
[mm x Nr.]		Conductor section
flexible with end-sleeve
[mm²]		Conductor section
rigid
[mm²]		Tightening torque
[Nm]		L1
[mm]		W1
[mm]		S1
[mm]		 Quantity per
Wishlist
QM416012L 1608,235Ø 12 x 1
Ø 8,5 x 3
Ø 7,2 x 7
Ø 5,5 x 1		10 - 50
10 - 25
1,5 - 16
1,5 - 6		10 - 50
10 - 35
2,5 - 16
2,5 - 6		8 - 10
2 - 3
2 - 3
2 - 3		17550981/1
