BRASS CABLE GLANDS · METRIC THREAD · IP68 · WITH LONG THREAD

Product was successfully added to your shopping cart.

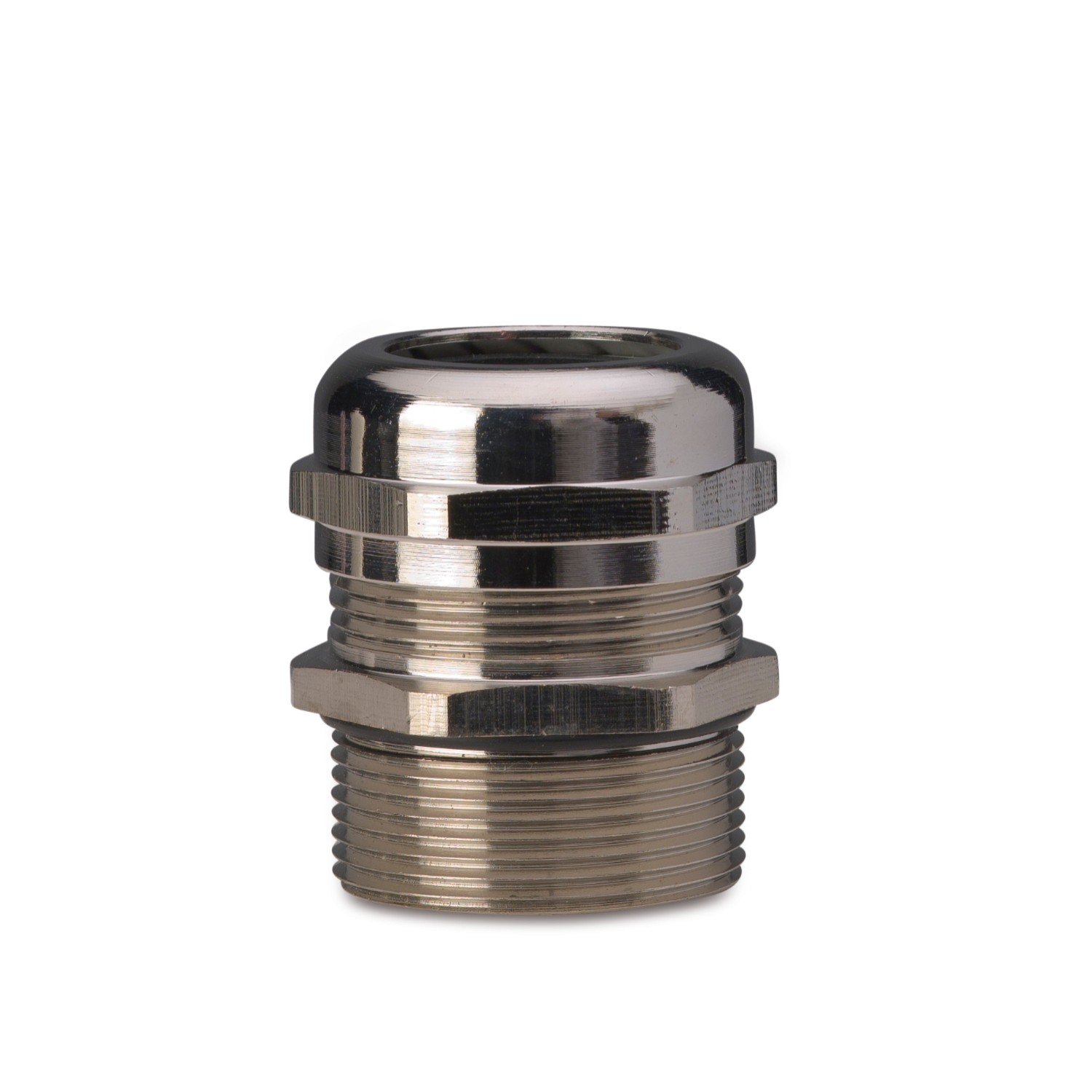

BRASS CABLE GLANDS · METRIC THREAD · IP68 · WITH LONG THREAD

BRASS CABLE GLANDS · METRIC THREAD · IP68 · STANDARD

BRASS CABLE GLANDS · METRIC THREAD · IP54 · STANDARD

Product Category	brass cable glands
Material	nickel-plated brass
Operating temperature	from -40 °C to +100 °C
Inner gasket and o-ring	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Cage in	polyamide (PA 6.6)
Etim 9	EC000441
cid	22PB01B

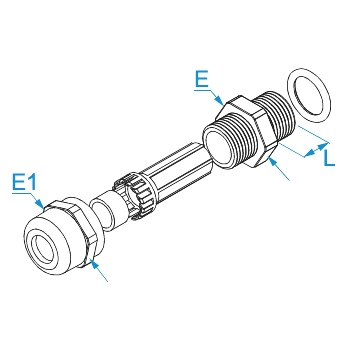

Images with
dimensions

Coded items

Item Code	Metric thread size (EN60423)	Ø cable [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]		Quantity per Wishlist
2512L	M 12 x 1.5	3 - 6,5	10	14	14	25/25
2517L	M 16 x 1.5	4 - 8	10	18	18	25/25
2520L	M 20 x 1.5	6 - 12	10	22	22	25/25
2525L	M 25 x 1.5	10 - 14	12	27	24	25/25
2532L	M 32 x 1.5	15 - 22	14	34	34	10/10
2540L	M 40 x 1.5	18 - 25	15	45	45	5/5
2550L	M 50 x 1.5	32 - 38	15	58	58	5/5
2563L	M 63 x 1.5	37 - 44	15	68	64	5/5
