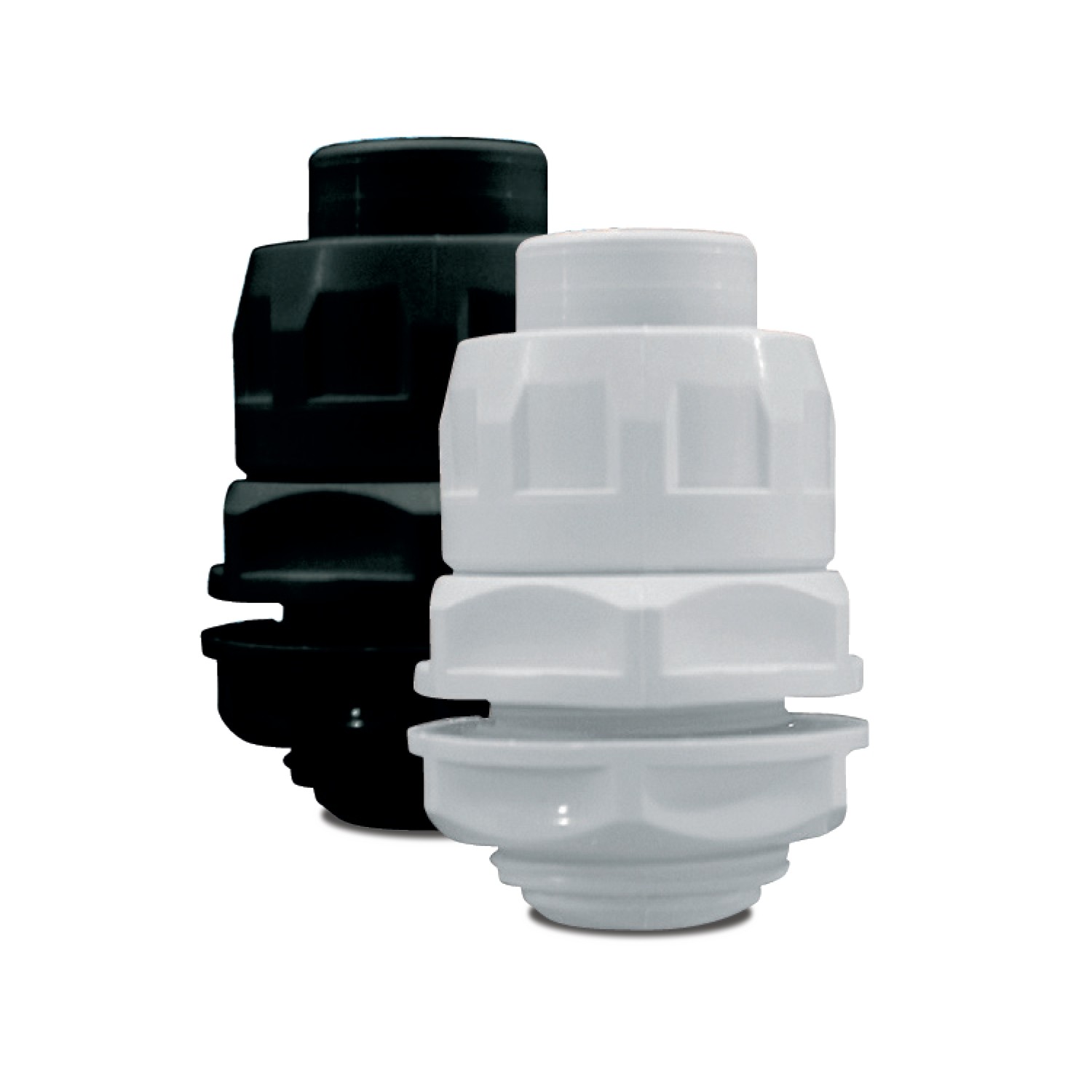

IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · GAS THREAD · RGG/RGGN

Supplied with GAS thread fixing nut.

Product Category	conduit fixings accessories for spiral conduits
Material	fireproof polypropylene
Pitch	gas
Resistance to shock	class 3 (>2 kg from 10 cm at -5 °C)
Min. temperature	class 2 (-5 °C)
Max. temperature	class 1 (+60°C)
Resistance to fire	self-extinguishing
Glow wire test	pass at 850 °C
Protection grade	IP65
Standard	EN 61386-1, EN 61386-23
Etim 9	EC001178
cid	75RD03A

Item Code	Color	Gas thread [ISO 228/1]	Sheathing diameter [mm]	
TP5RGG10	Grey RAL 7035	G 1/4"	10	10/140
TP5RGGN10	Black RAL 9005	G 1/4"	10	10/140
TP5RGG12	Grey RAL 7035	G 3/8"	12	10/120
TP5RGGN12	Black RAL 9005	G 3/8"	12	10/120
TP5RGG14	Grey RAL 7035	G 1/2"	14	10/100
TP5RGGN14	Black RAL 9005	G 1/2"	14	10/100
TP5RGG16	Grey RAL 7035	G 1/2"	16	10/100
TP5RGGN16	Black RAL 9005	G 1/2"	16	10/100
TP5RGG20	Grey RAL 7035	G 3/4"	20	10/70
TP5RGGN20	Black RAL 9005	G 3/4"	20	10/70
TP5RGG22	Grey RAL 7035	G 3/4"	22	10/60
TP5RGGN22	Black RAL 9005	G 3/4"	22	10/60
TP5RGG25	Grey RAL 7035	G 1"	25	10/40
TP5RGGN25	Black RAL 9005	G 1"	25	10/40
TP5RGG28	Grey RAL 7035	G 1"	28	10/40
TP5RGGN28	Black RAL 9005	G 1"	28	10/40
TP5RGG32	Grey RAL 7035	G 1" 1/4	32	5/25
TP5RGGN32	Black RAL 9005	G 1" 1/4	32	5/25
TP5RGG35	Grey RAL 7035	G 1" 1/4	35	5/20
TP5RGGN35	Black RAL 9005	G 1" 1/4	35	5/20
TP5RGG40	Grey RAL 7035	G 1" 1/2	40	5/20
TP5RGGN40	Black RAL 9005	G 1" 1/2	40	5/20
TP5RGG50	Grey RAL 7035	G 2"	50	5/15
TP5RGGN50	Black RAL 9005	G 2"	50	5/15
