IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · PG THREAD · RGP/RGPN

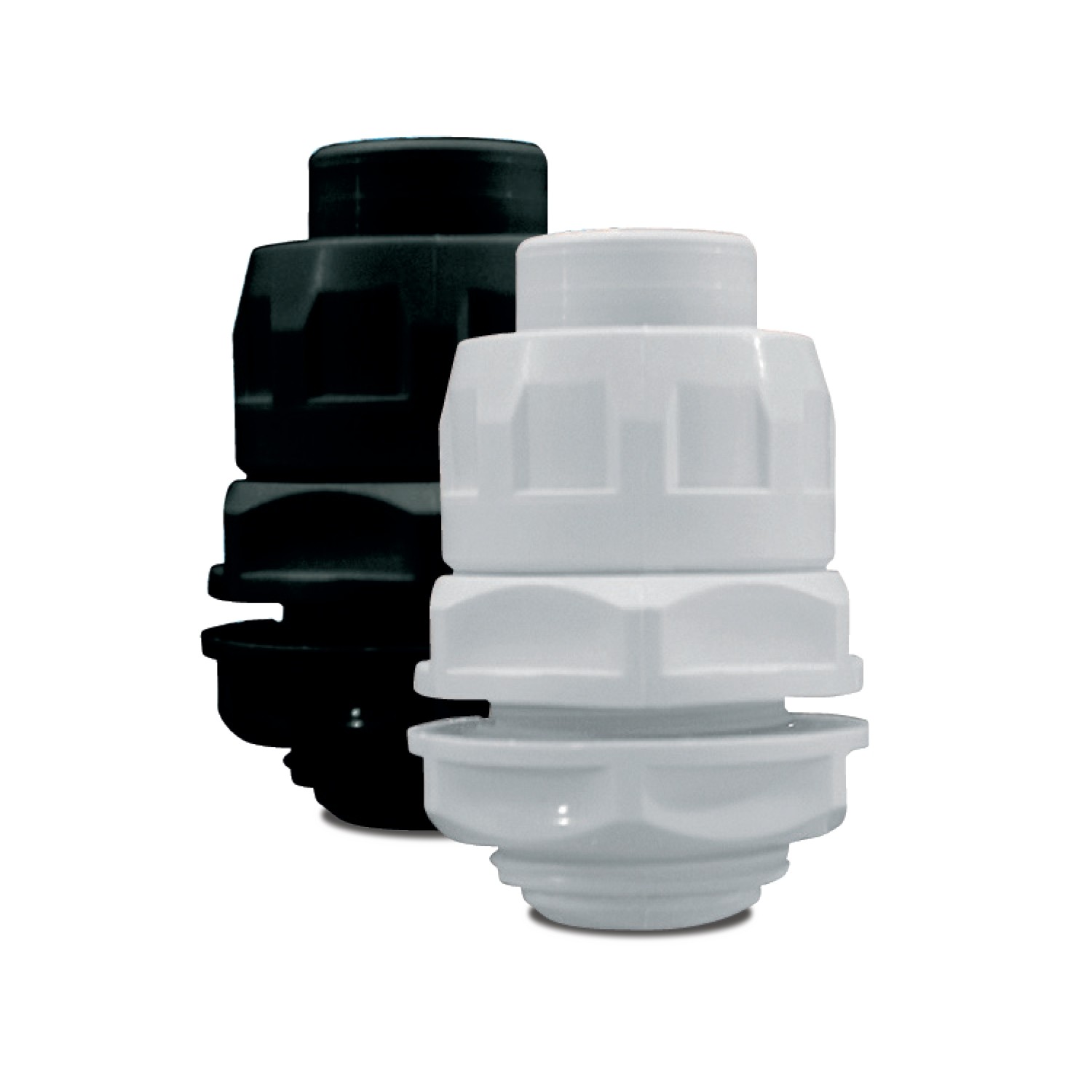

Swivel straight fitting for spiral conduits.
Supplied with PG thread fixing nut.

Product Category	conduit fixings accessories for spiral conduits
Material	fireproof polypropylene
Pitch	PG
Resistance to shock	class 3 (>2 kg from 10 cm at -5 °C)
Min. temperature	class 2 (-5 °C)
Max. temperature	class 1 (+60°C)
Resistance to fire	self-extinguishing
Glow wire test	pass at 850 °C
Protection grade	IP65
Standard	EN 61386-1, EN 61386-23
Etim 9	EC001178
cid	75RD02A

Item Code	Color	PG thread [DIN 40430]	Sheathing diameter [mm]	
TP5RGP10	Grey RAL 7035	PG 9	10	10/160
TP5RGPN10	Black RAL 9005	PG 9	10	10/160
TP5RGP12	Grey RAL 7035	PG 11	12	10/160
TP5RGPN12	Black RAL 9005	PG 11	12	10/160
TP5RGP12/13	Grey RAL 7035	PG 13.5	12	10/160
TP5RGPN12/13	Black RAL 9005	PG 13.5	12	10/160
TP5RGP14	Grey RAL 7035	PG 13.5	14	10/100
TP5RGPN14	Black RAL 9005	PG 13.5	14	10/100
TP5RGP16	Grey RAL 7035	PG 11	16	10/100
TP5RGPN16	Black RAL 9005	PG 11	16	10/100
TP5RGP16/13	Grey RAL 7035	PG 13.5	16	10/100
TP5RGPN16/13	Black RAL 9005	PG 13.5	16	10/100
TP5RGP16/16	Grey RAL 7035	PG 16	16	10/100
TP5RGPN16/16	Black RAL 9005	PG 16	16	10/100
TP5RGP20	Grey RAL 7035	PG 21	20	10/70
TP5RGPN20	Black RAL 9005	PG 21	20	10/70
TP5RGP22	Grey RAL 7035	PG 21	22	10/60
TP5RGPN22	Black RAL 9005	PG 21	22	10/60
TP5RGP25	Grey RAL 7035	PG 29	25	10/50
TP5RGPN25	Black RAL 9005	PG 29	25	10/50
TP5RGP28	Grey RAL 7035	PG 29	28	10/40
TP5RGPN28	Black RAL 9005	PG 29	28	10/40
TP5RGP32	Grey RAL 7035	PG 36	32	5/20
TP5RGPN32	Black RAL 9005	PG 36	32	5/20
TP5RGP35	Grey RAL 7035	PG 36	35	5/20
TP5RGPN35	Black RAL 9005	PG 36	35	5/20
