IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · METRIC THREAD · RGM/RGMN

Previous

IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · PG THREAD · RGP/RGPN

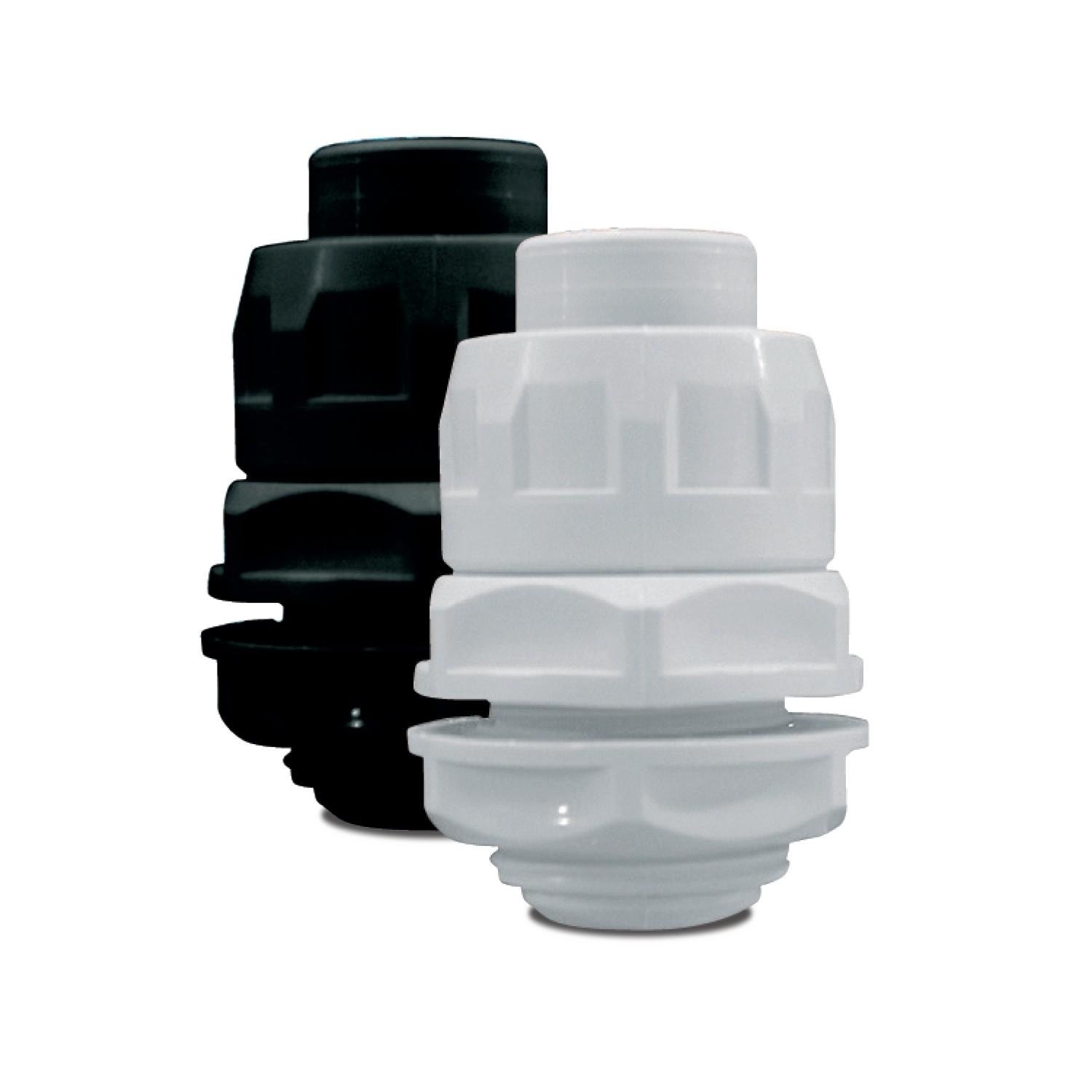

Swivel straight fitting for spiral conduits.
Supplied with metric thread fixing nut.
Product Categoryconduit fixings accessories for spiral conduits
Materialfireproof polypropylene
Pitchmetric
Resistance to shockclass 3 (>2 kg from 10 cm at -5 °C)
Min. temperatureclass 2 (-5 °C)
Max. temperatureclass 1 (+60°C)
Resistance to fireself-extinguishing
Glow wire testpass at 850 °C
Protection gradeIP65
StandardEN 61386-1, EN 61386-23
Etim 9EC001178
cid75RD01A
PDF documents
Item
Code		 ColorMetric thread
[EN 60423]		Sheathing diameter
[mm]		 Quantity per
Wishlist
TP5RGM10 Grey RAL 7035M 12 x 1.51010/150
TP5RGMN10 Black RAL 9005M 12 x 1.51010/150
TP5RGM12 Grey RAL 7035M 16 x 1.51210/150
TP5RGMN12 Black RAL 9005M 16 x 1.51210/150
TP5RGM16 Grey RAL 7035M 20 x 1.51610/100
TP5RGMN16 Black RAL 9005M 20 x 1.51610/100
TP5RGM20 Grey RAL 7035M 25 x 1.52010/70
TP5RGMN20 Black RAL 9005M 25 x 1.52010/70
TP5RGM25 Grey RAL 7035M 32 x 1.52510/40
TP5RGMN25 Black RAL 9005M 32 x 1.52510/40
TP5RGM32 Grey RAL 7035M 40 x 1.5325/25
TP5RGMN32 Black RAL 9005M 40 x 1.5325/25
TP5RGM40 Grey RAL 7035M 50 x 1.5405/20
TP5RGMN40 Black RAL 9005M 50 x 1.5405/20
TP5RGM50 Grey RAL 7035M 63 x 1.5505/15
TP5RGMN50 Black RAL 9005M 63 x 1.5505/15
