IP40 ACCESSORIES · 90 DEGREE ELBOW CONDUIT · CU

Previous

IP40 ACCESSORIES · JUNCTION SLEEVE · MA

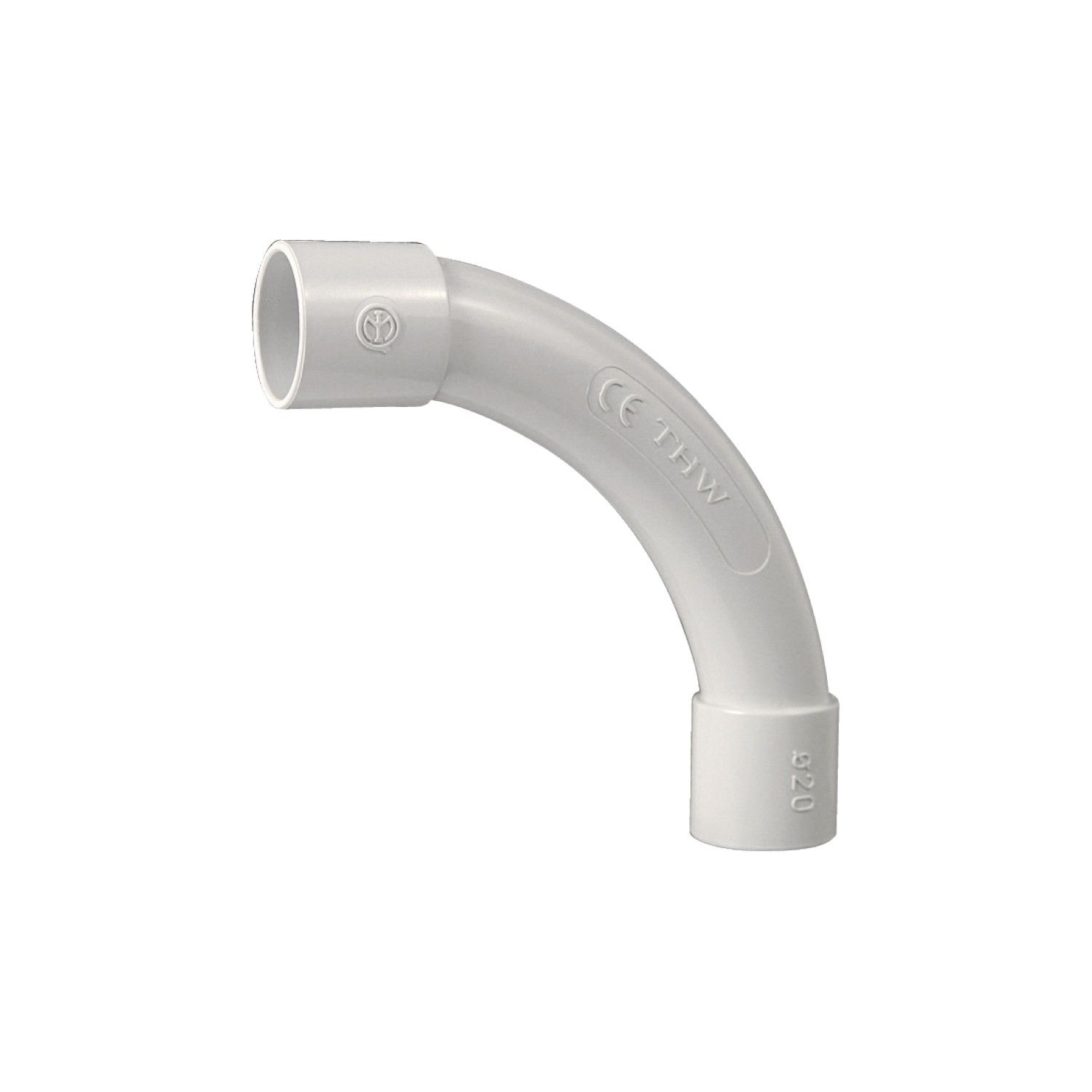

90 degree elbow conduit, narrow radius, for rigid conduits.
Product CategoryIP40 conduit fixings accessories
Materialrigid PVC
Resistance to shockclass 3 (>2 kg from 10 cm at -5 °C)
Min. temperatureclass 2 (-5 °C)
Max. temperatureclass 1 (+60°C)
Resistance to fireself-extinguishing
Glow wire testpass at 850 °C
Protection gradeIP40
StandardEN 61386-1, EN 61386-21
Etim 9EC000936
cid75RB02A
PDF documents
Item
Code		 ColorConduit diameter
[mm]		 Quantity per
Wishlist
TP4CU16 Grey RAL 70351610/180
TP4CU20 Grey RAL 70352010/220
TP4CU25 Grey RAL 70352510/220
TP4CU32 Grey RAL 7035325/120
TP4CU40 Grey RAL 7035405/60
TP4CU50 Grey RAL 7035505/35
