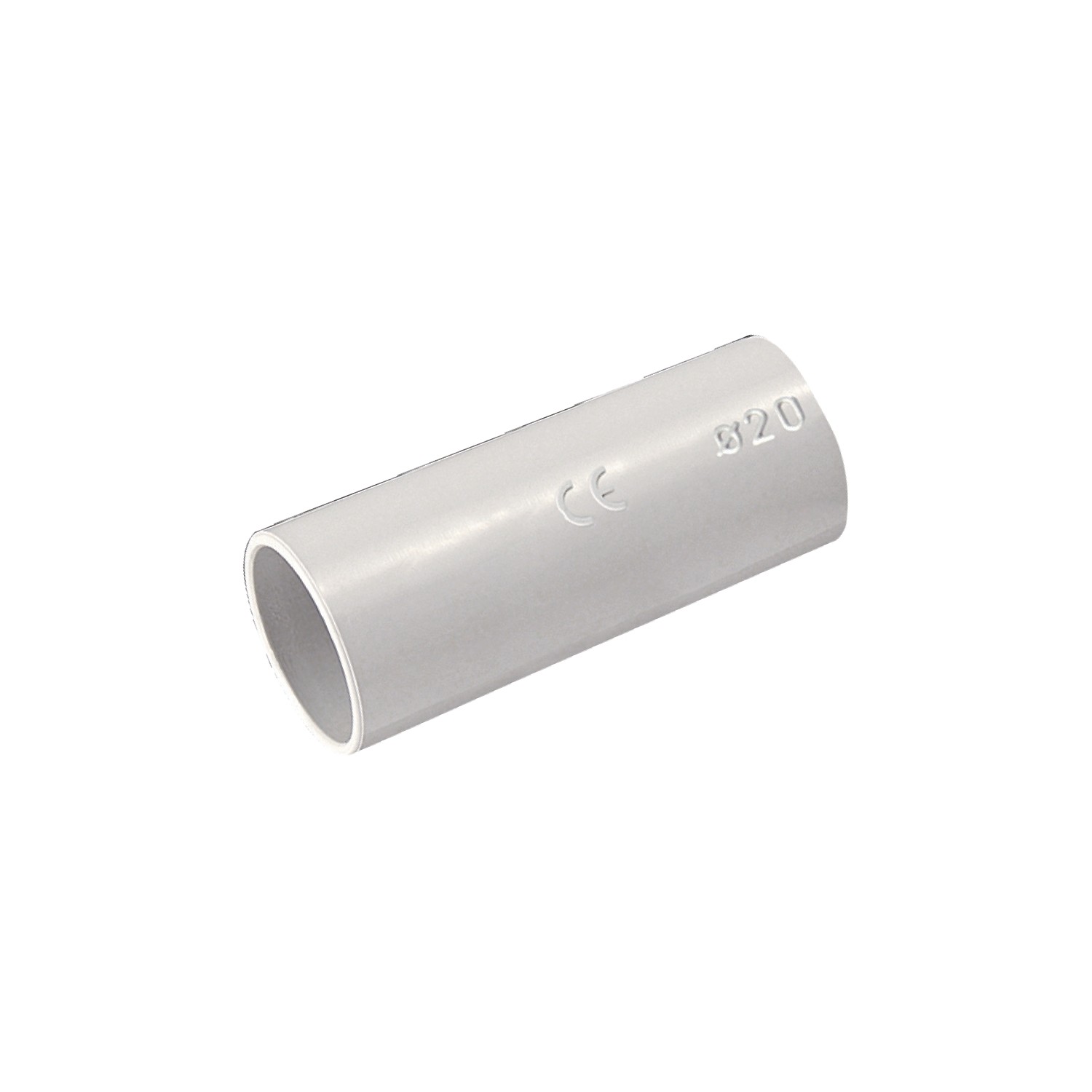

IP40 ACCESSORIES · JUNCTION SLEEVE · MA

IP40 ACCESSORIES · 90 DEGREE ELBOW CONDUIT · CU

Adaptable to conduit imperfections (oval shape, increased/reduced diameter within standard range).
Easy and full insertion up to half-length to facilitate the passage of cables and probes.
Better sealing thanks to its Trilo System joint.
New design that allows for seamless joints between conduits.

Product Category	IP40 conduit fixings accessories
Material	rigid PVC
Resistance to shock	class 3 (>2 kg from 10 cm at -5 °C)
Min. temperature	class 2 (-5 °C)
Max. temperature	class 1 (+60°C)
Resistance to fire	self-extinguishing
Glow wire test	pass at 850 °C
Protection grade	IP40
Standard	EN 61386-1, EN 61386-21
Etim 9	EC000939
cid	75RB01A

Coded items

Item Code	Color	Conduit diameter [mm]	
TP4MA16	Grey RAL 7035	16	20/300
TP4MA20	Grey RAL 7035	20	20/400
TP4MA25	Grey RAL 7035	25	20/240
TP4MA32	Grey RAL 7035	32	10/120
TP4MA40	Grey RAL 7035	40	5/80
TP4MA50	Grey RAL 7035	50	5/50
