PUNCHING TOOL · HYDRAULIC · MANUAL

PUNCHERS · ROUND (SERIES T)

Product Category	mechanical drillers
Force	55 kN
Puncher dies	T series, Q series and R series
Punch connection thread	M16 x 1.5
Maximum punching dimensions	• round punching: 72 mm (48 mm for inox) • square punching: 68 mm x 68 mm • rectangular punching: 46 mm x 92 mm
Maximum punching thickness	• iron sheet: max 3 mm • ASI inox 304 steel sheet: max 2 mm • aluminum and plastic material: max 5 mm
How to use	• make the hole on the sheet with the drill • pass the guide pin through the pre-drilled hole • assembly the die and the punch on both sides of the sheet • perform the punching
Etim 9	EC001085
cid	31AC04A

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

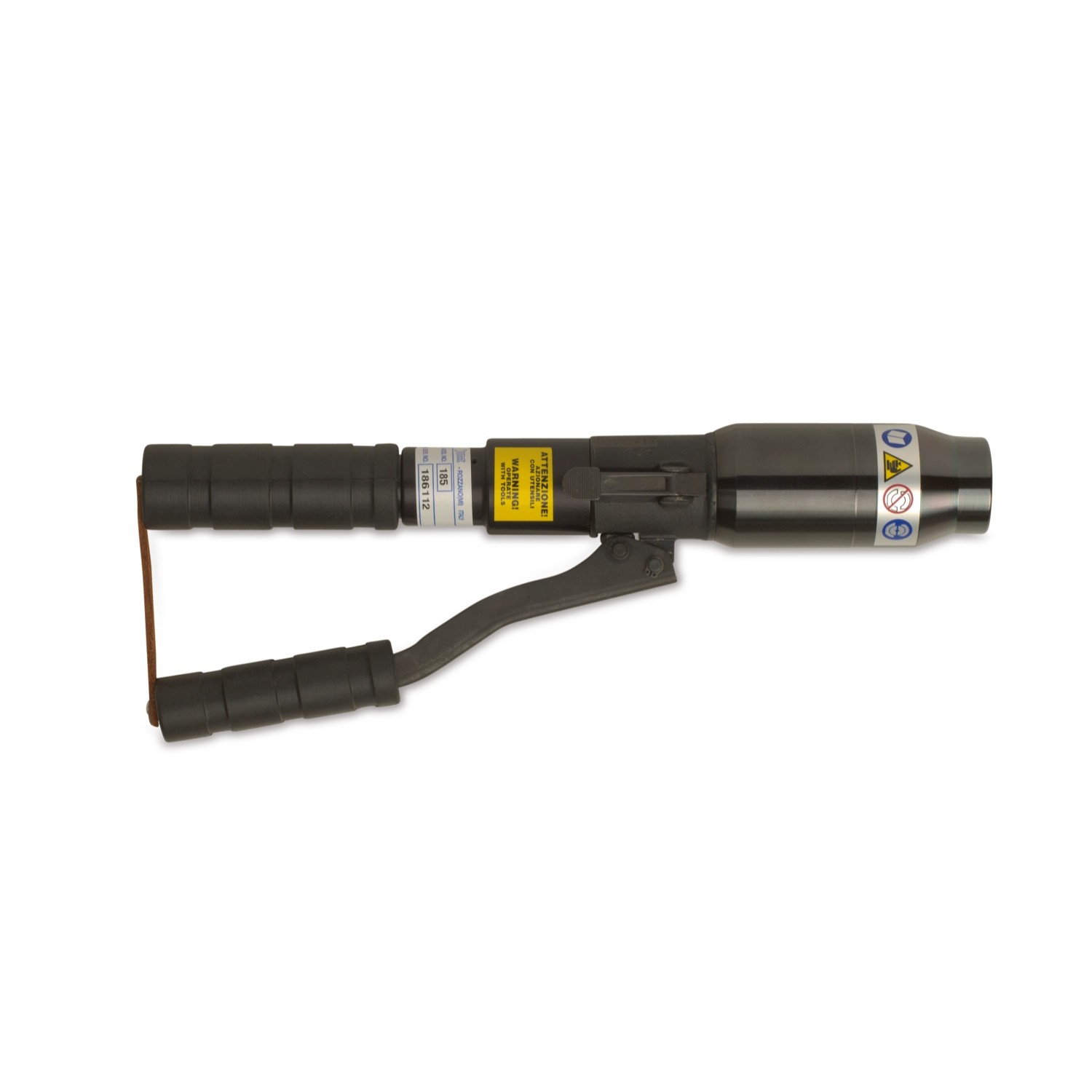

185	Hand hydraulic punching press complete with carrying case	360	120	50	2,7	450x300x100	VA

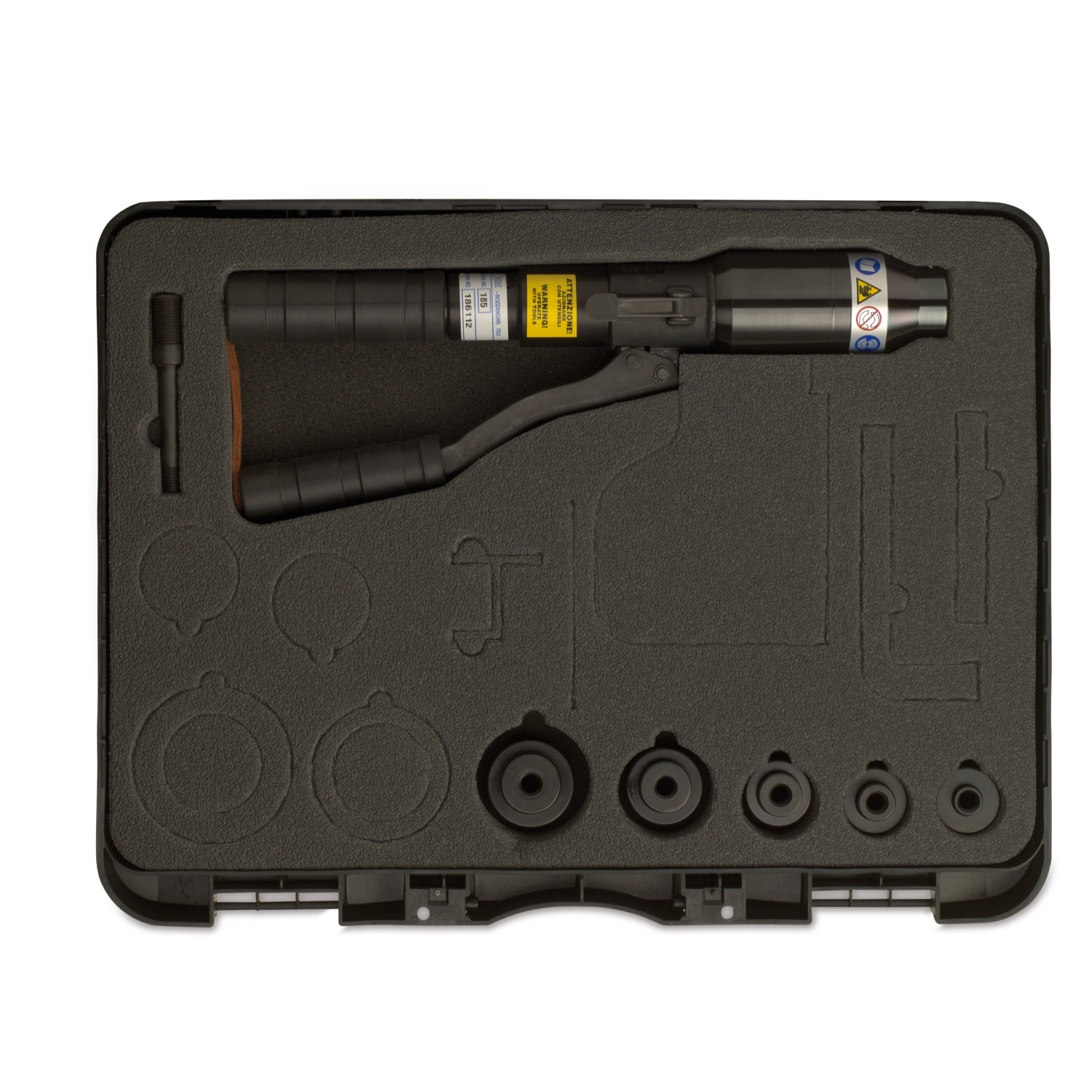

1856	Punching press kit complete with • BM 185 manual hydraulic punching press with carrying case • round punchers Ø 15.5 - Ø 19.5 - Ø 22.5 - Ø 26.5 - Ø 30.5 • guide pin Ø 11	360	120	50	2,7	450x300x100	VA
