PUNCHING HEADSTOCK · FOR MULTI-HEAD PRESS

Previous

CUTTING HEADSTOCK · FOR MULTI-HEAD PRESS · UP TO 32 mm

Previous

ACCESSORIES FOR BM 200 · ADAPTOR FOR PUMPS

Product Categorymulti-head drilling heads
Puncher diesT series, Q series and R series
Punch connection threadM16 x 1.5
Maximum punching dimensions• round punching: 60,5 mm
• square punching: 50 mm x 50 mm
• rectangular punching: 65 mm x 38 mm
Maximum punching thickness• iron sheet (max 3mm)
• steel sheet (max 1.5mm)
How to use• insert the head into BM 200 manual hydraulic multi-head tool
• make the hole on the sheet with the drill
• pass the guide pin through the pre-drilled hole
• assembly the die and the punch on both sides of the sheet
• perform the punching
Features• to use the crimping head it is necessary to combine BM 200 manual hydraulic multi-head tool
• with BM 200CC adapter, it is possible to combine a pump
Etim 9EC001085
cid31AC06A
PDF documents
Item
Code		 DescriptionLength
[mm]		Width
[mm]		Thickness
[mm]		Weight
[kg]		Pack size LxWxH
[mm]		 Quantity per
Wishlist

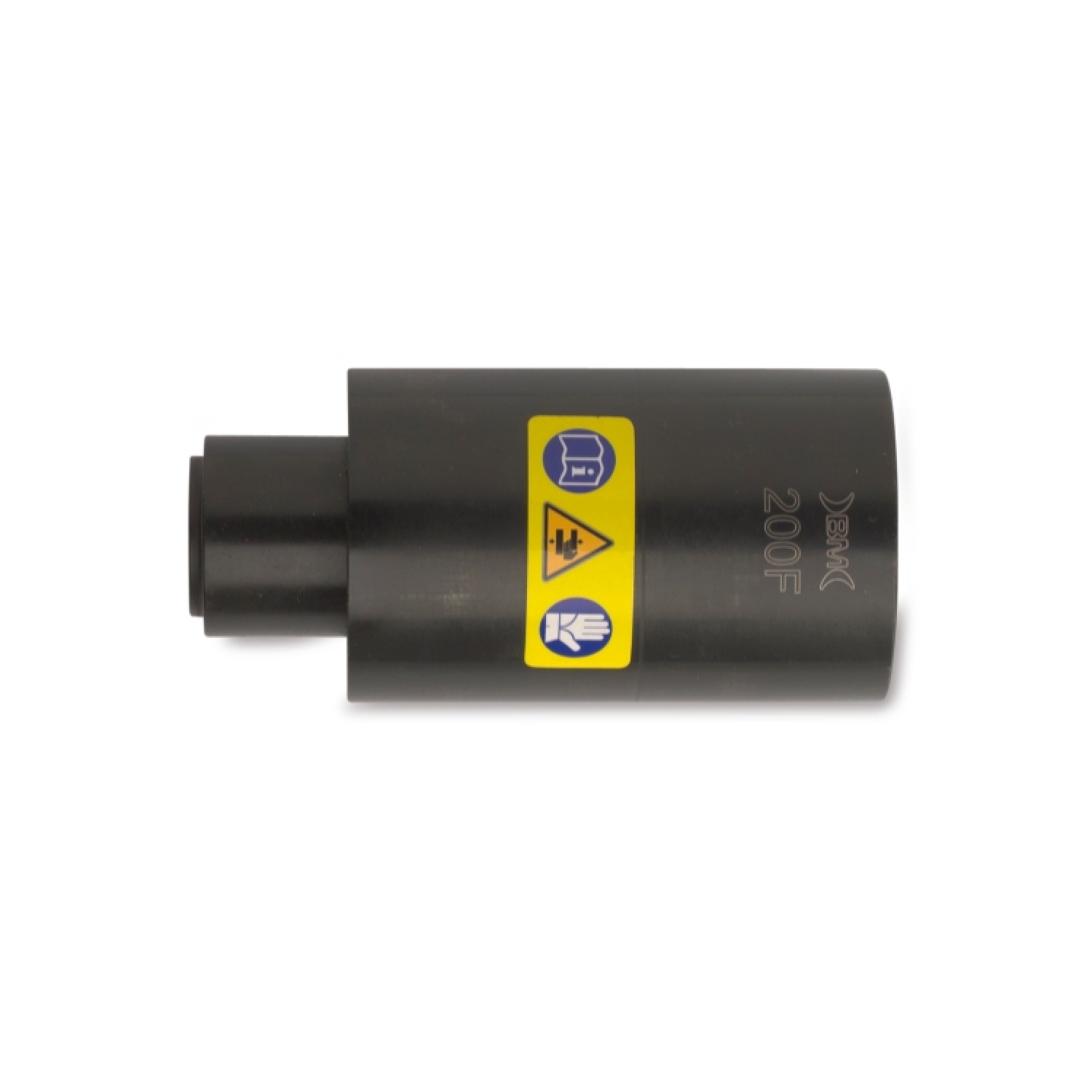

200F Hydraulic punching head for manual multi-head hydraulic tool BM 2009060601,6NASC
