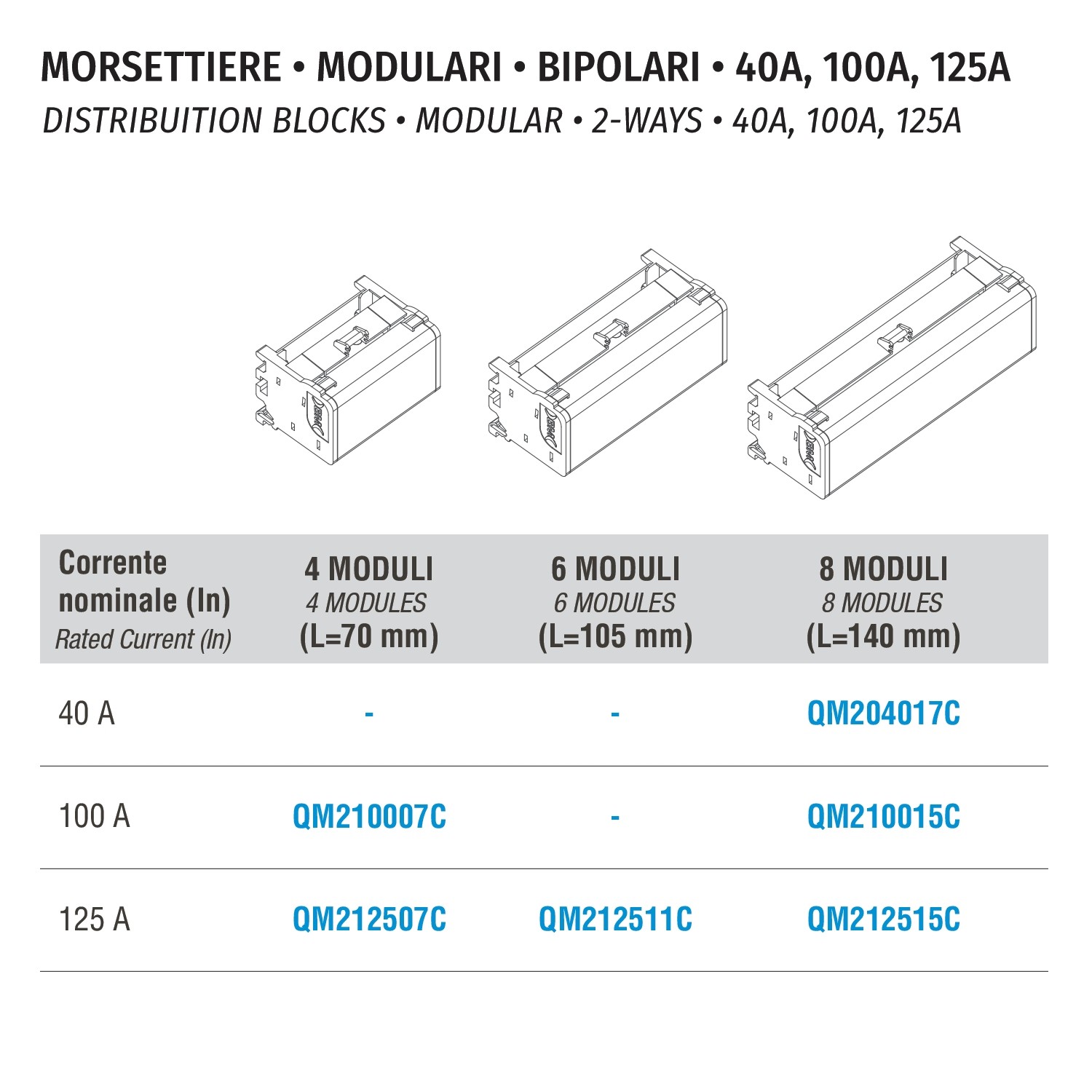

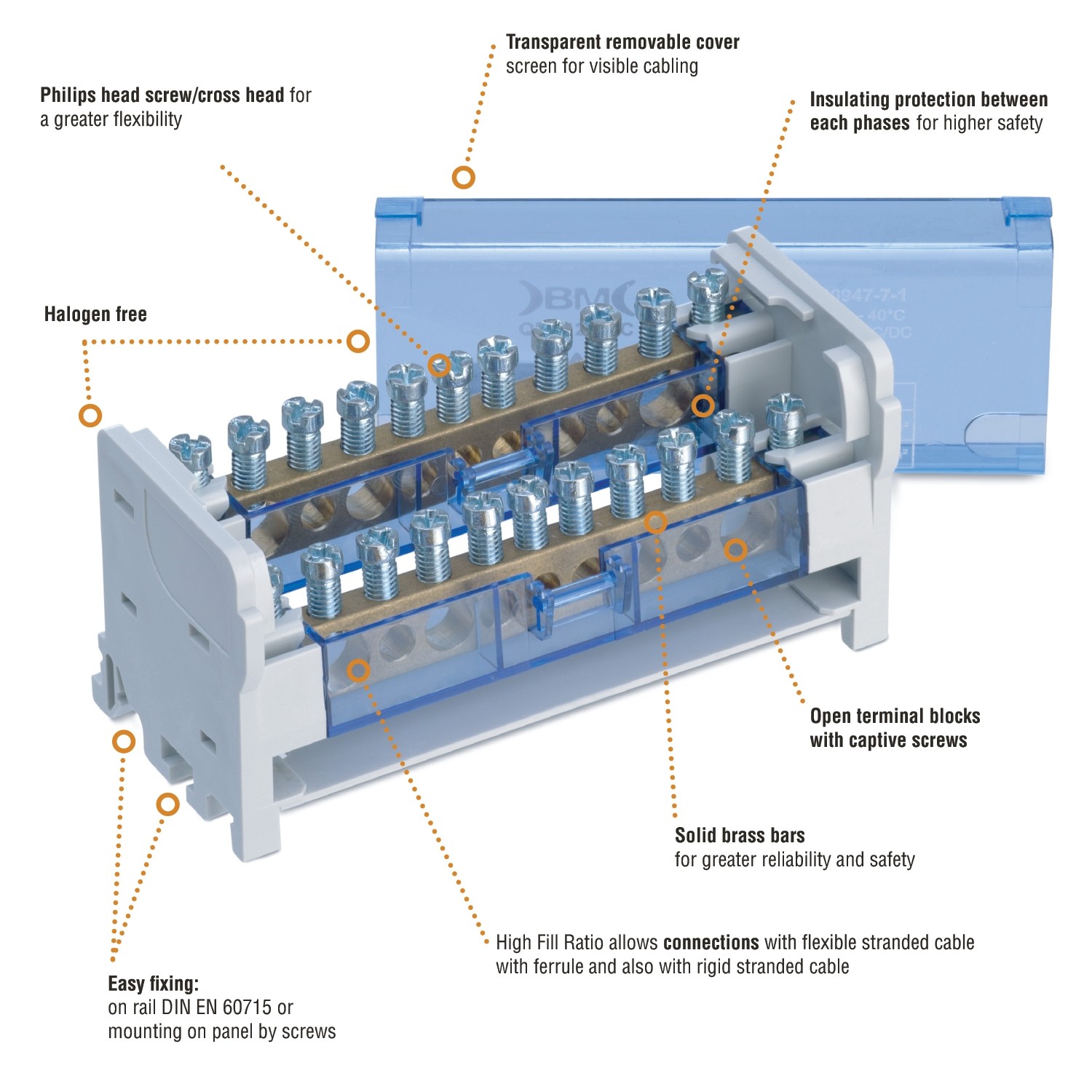

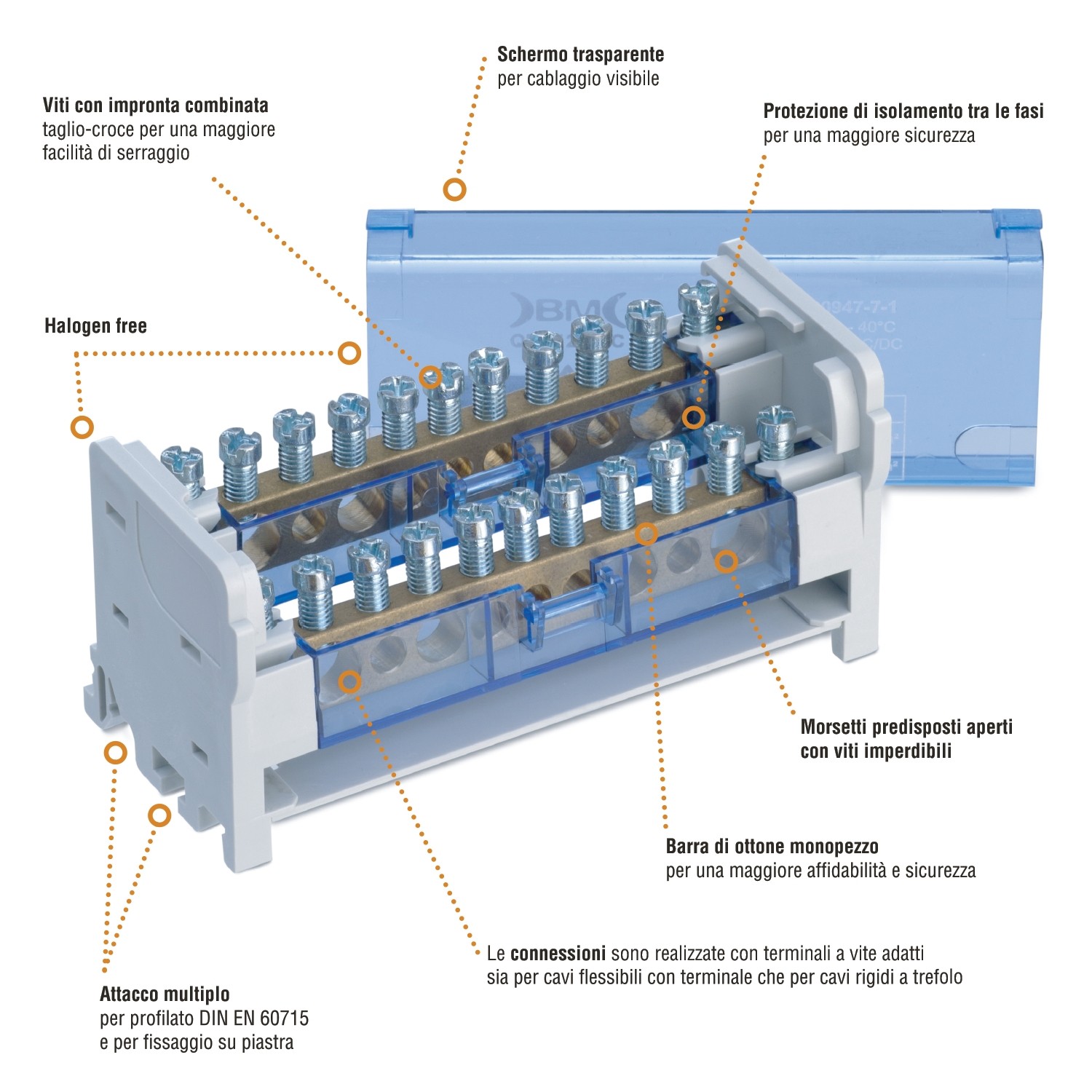

DISTRIBUTION BLOCKS · 2-WAYS · 40A, 100A, 125 A

New
Product Categorymodular terminal blocks
Insulating housingpolycarbonate (PC) UL 94 V0
Protectionstransparent polycarbonate (PC) UL 94 V0
Connection barsbrass
Screwsgalvanized steel
Insulation self-extinguishingIEC/EN 60695-2-11 at 850 °C
Ambient Temperature40 °C
Rated insulation voltage500 V
Pollution degree3
According to std.IEC/EN 60947-7-1
Etim 9EC001894
cid41MC01G
PDF documents
Images with
dimensions
Item
Code		 Rated Current In
[A]		Short-Time Current Icw
[kA]		Peak Current Ipk
[kA]		Connections for way
[mm x Nr.]		Conductor section
flexible with end-sleeve
[mm²]		Conductor section
rigid
[mm²]		Tightening torque
[Nm]		L1
[mm]		W1
[mm]		S1
[mm]		 Quantity per
Wishlist
QM204017C 404,520Ø 6 x 2
Ø 4,3 x 15		4 - 10
0,75 - 4		6 - 16
1,5 - 4		2 - 3
1,2 - 1,5		14050471/1
QM210007C 1004,520Ø 7,5 x 2
Ø 5,3 x 5		6 - 16
1,5 - 6		10 - 25
2,5 - 6		2 - 3
2 - 3		7050471/1
QM210015C 1004,520Ø 8,5 x 2
Ø 5,5 x 7
Ø 4,5 x 6		10 - 25
1,5 - 6
0,75 - 4		10 - 25
2,5 - 6
1,5 - 4		2 - 3
2 - 3
1,2 - 1,5		14050471/1
QM212507C 1254,520Ø 9 x 1
Ø 7,5 x 1
Ø 5,3 x 5		10 - 25
6 - 16
1,5 - 6		10 - 35
10 - 25
2,5 - 6		2 - 3
2 - 3
2 - 3		7050471/1
QM212511C 1254,520Ø 9 x 2
Ø 7,5 x 2
Ø 5,3 x 7		10 - 25
6 - 16
1,5 - 6		10 - 35
10 - 25
2,5 - 6		2 - 3
2 - 3
2 - 3		10550471/1
QM212515C 1254,520Ø 9 x 2
Ø 7,5 x 2
Ø 5,3 x 11		10 - 25
6 - 16
1,5 - 6		10 - 35
10 - 25
2,5 - 6		2 - 3
2 - 3
2 - 3		14050471/1
