ACCESSORIES FOR NYLON CABLE GLANDS: PG THREAD · HEXAGONAL LOCKNUTS WITH FLANGE

Recommended use to preserve UL certification of the 49xx cable glands when installed on throughu -hole panels.

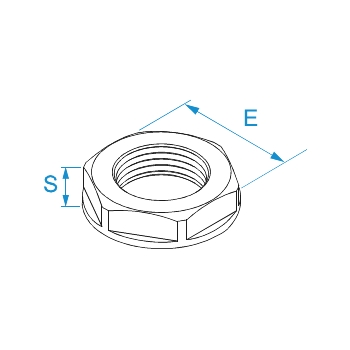

Images with
dimensions

Item Code	Color	PG thread size (DIN40430)	E wrench [nut]	S [mm]		CAD FILE
4807*	Grey RAL 7035	PG 7	19	5	100/100	3D
4807N*	Black RAL 9005	PG 7	19	5	100/100	3D
4809*	Grey RAL 7035	PG 9	22	5	100/100
4809N*	Black RAL 9005	PG 9	22	5	100/100
4811*	Grey RAL 7035	PG 11	24	5	100/100	3D
4811N*	Black RAL 9005	PG 11	24	5	100/100	3D
4813	Grey RAL 7035	PG 13.5	27	6	100/100
4813N	Black RAL 9005	PG 13.5	27	6	100/100
4816	Grey RAL 7035	PG 16	30	6	100/100
4816N	Black RAL 9005	PG 16	30	6	100/100
4821	Grey RAL 7035	PG 21	36	7	100/100
4821N	Black RAL 9005	PG 21	36	7	100/100
4829•	Grey RAL 7035	PG 29	46	7	50/50
4829N•	Black RAL 9005	PG 29	46	7	50/50
4836	Grey RAL 7035	PG 36	60	8	25/25
4836N	Black RAL 9005	PG 36	60	8	25/25
4842•	Grey RAL 7035	PG 42	65	8	25/25
4842N•	Black RAL 9005	PG 42	65	8	25/25
4848•	Grey RAL 7035	PG 48	70	8	10/10
4848N•	Black RAL 9005	PG 48	70	8	10/10
