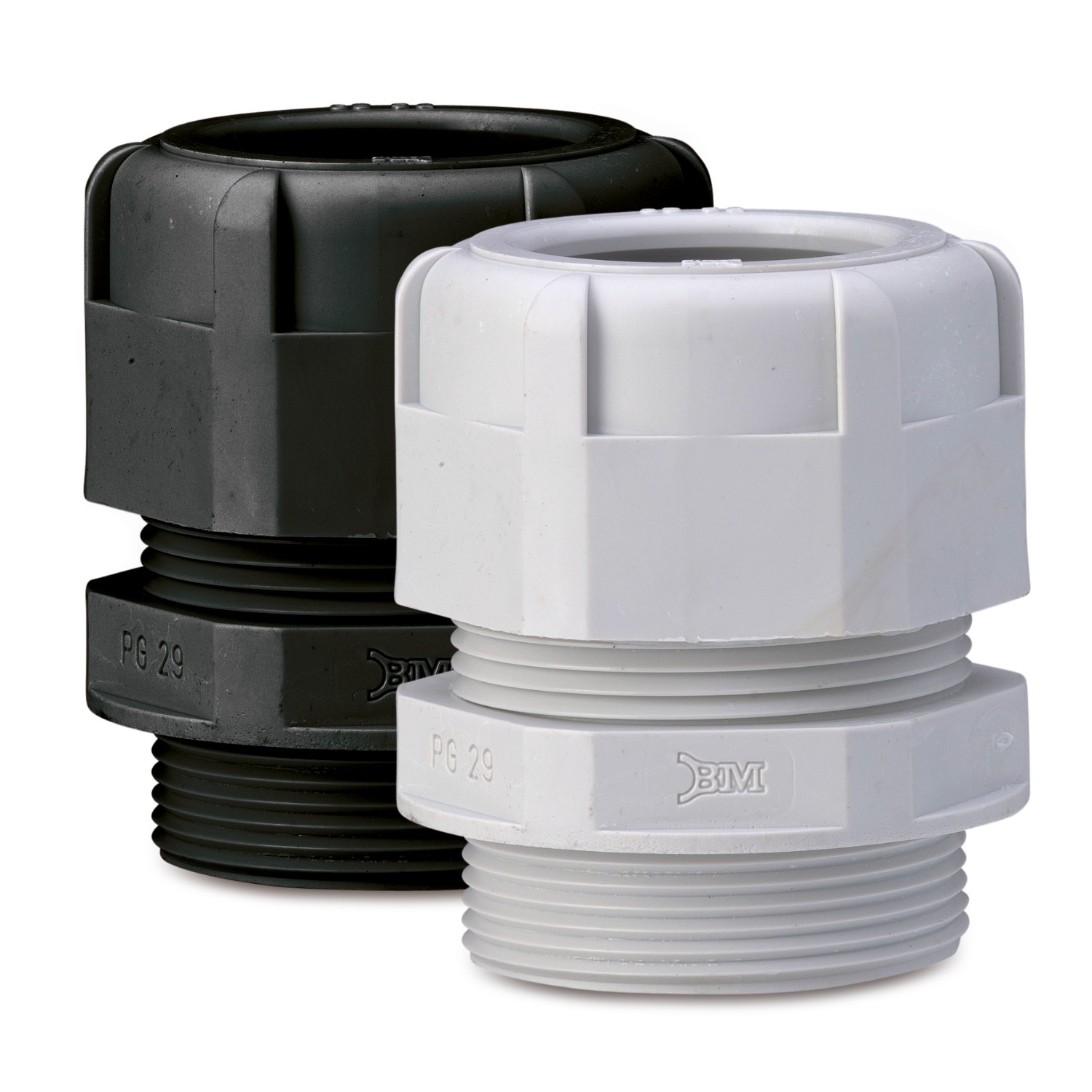

NYLON CABLE GLANDS · PG THREAD · IP68 · WITH FLANGE

NYLON CABLE GLANDS · PG THREAD · IP68 · WITH LOCKNUT

NYLON CABLE GLANDS · PG THREAD · IP68 · WITH LONG THREAD

Cable glands with UL certification.
When installing the cable gland on panels with through hole, you need to use the 48xx nuts to preserve UL certification.

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature	from -20 °C to +90 °C
Inner gasket	NBR (nitrile rubber), 60 Shore A
According to std.	EN 62444:2013
Assembly	no gasket needed; tighten on a flat and smooth surface.
Etim 9	EC000441
cid	22PA03C

Images with
dimensions

Coded items

Item Code	Color	PG thread size (DIN40430)	Ø cable [mm]	L [mm]	E wrench [nut]		CAD FILE
4907**	Grey RAL 7035	PG 7	3 - 6,5	8	15	50/50	3D
49071**	Black RAL 9005	PG 7	3 - 6,5	8	15	50/50	3D
4909**	Grey RAL 7035	PG 9	4 - 8	8	19	50/50	3D
49091**	Black RAL 9005	PG 9	4 - 8	8	19	50/50	3D
4911**	Grey RAL 7035	PG 11	5 - 10	8	22	50/50	3D
49111**	Black RAL 9005	PG 11	5 - 10	8	22	50/50	3D
4913*	Grey RAL 7035	PG 13.5	6 - 12	10	24	50/50
49131*	Black RAL 9005	PG 13.5	6 - 12	10	24	50/50
4916*	Grey RAL 7035	PG 16	10 - 14	10	27	50/50
49161*	Black RAL 9005	PG 16	10 - 14	10	27	50/50
4921*	Grey RAL 7035	PG 21	13 - 18	11	33	25/25
49211*	Black RAL 9005	PG 21	13 - 18	11	33	25/25
4929	Grey RAL 7035	PG 29	18 - 25	11	42	20/20
49291	Black RAL 9005	PG 29	18 - 25	11	42	20/20
4936*	Grey RAL 7035	PG 36	22 - 32	13	53	10/10
49361*	Black RAL 9005	PG 36	22 - 32	13	53	10/10
