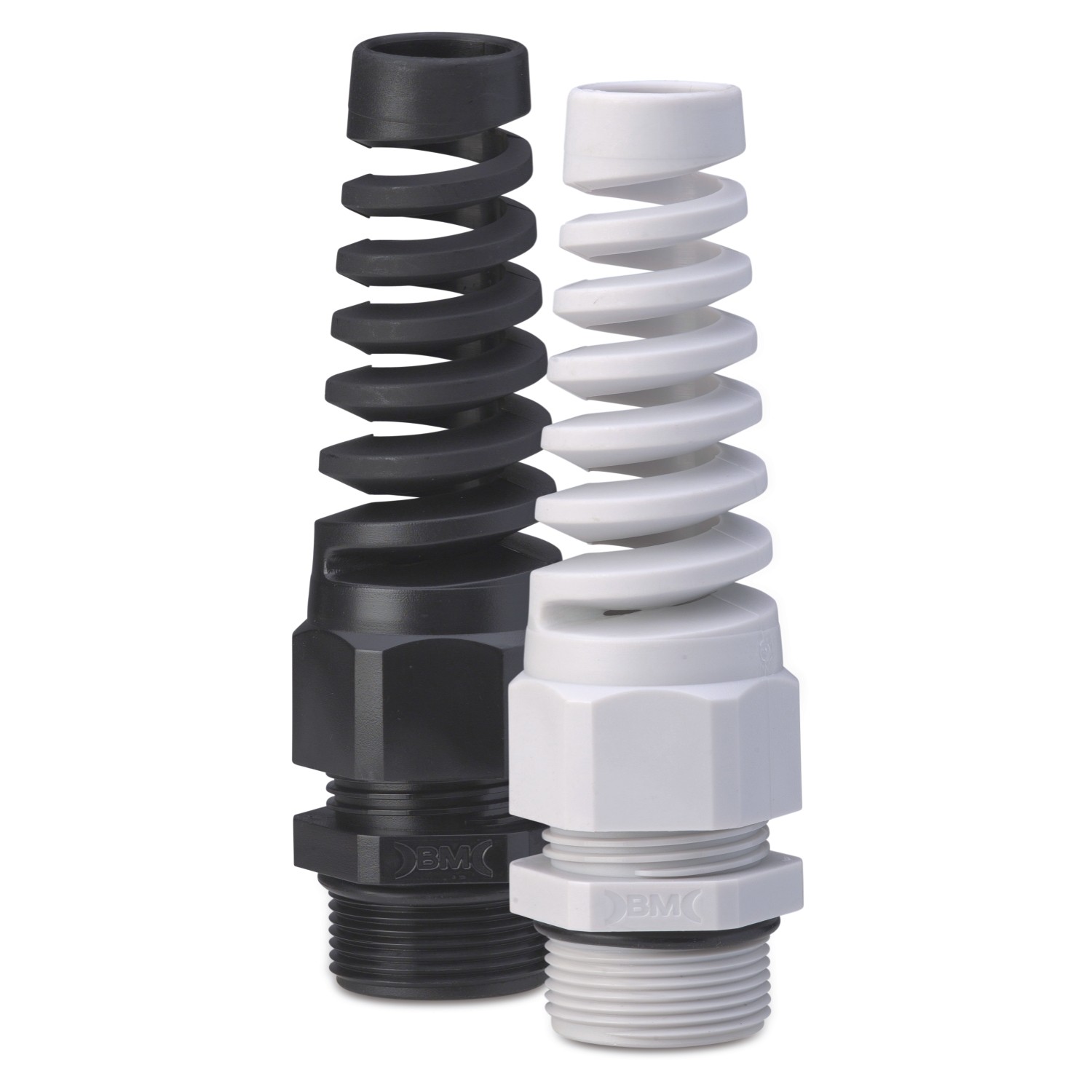

NYLON CABLE GLANDS · PG THREAD · IP68 · WITH SPIRAL CABLE PROTECTION

Previous

NYLON CABLE GLANDS · PG THREAD · IP68 · WITH LONG THREAD

Previous

NYLON CABLE GLANDS · PG THREAD · IP54 · REINFORCED WITH FIBERGLASS

Product Categorynylon cable glands
Materialpolyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperaturefrom -20 °C to +90 °C
Inner gasket and washerNBR (nitrile rubber), 70 Shore A
According to std.EN 62444:2013
Assemblydo not remove or move the gasket; tighten on a flat and smooth surface.
Etim 9EC000441
cid22PA03E
Images with
dimensions
Item
Code
ColorPG thread size (DIN40430)Ø cable
[mm]
L
[mm]
E wrench
[nut]
Quantity per
Wishlist
4007S Grey RAL 7035PG 73 - 6,5151625/25
4007SN Black RAL 9005PG 73 - 6,5151625/25
4009S Grey RAL 7035PG 94 - 8151925/25
4009SN Black RAL 9005PG 94 - 8151925/25
4011S Grey RAL 7035PG 115 - 10152210/10
4011SN Black RAL 9005PG 115 - 10152210/10
4013S Grey RAL 7035PG 13.56 - 11152410/10
4013SN Black RAL 9005PG 13.56 - 11152410/10
4016S Grey RAL 7035PG 1610 - 13152710/100
4016SN Black RAL 9005PG 1610 - 13152710/100
4021S Grey RAL 7035PG 2113 - 16153310/10
4021SN Black RAL 9005PG 2113 - 16153310/10
