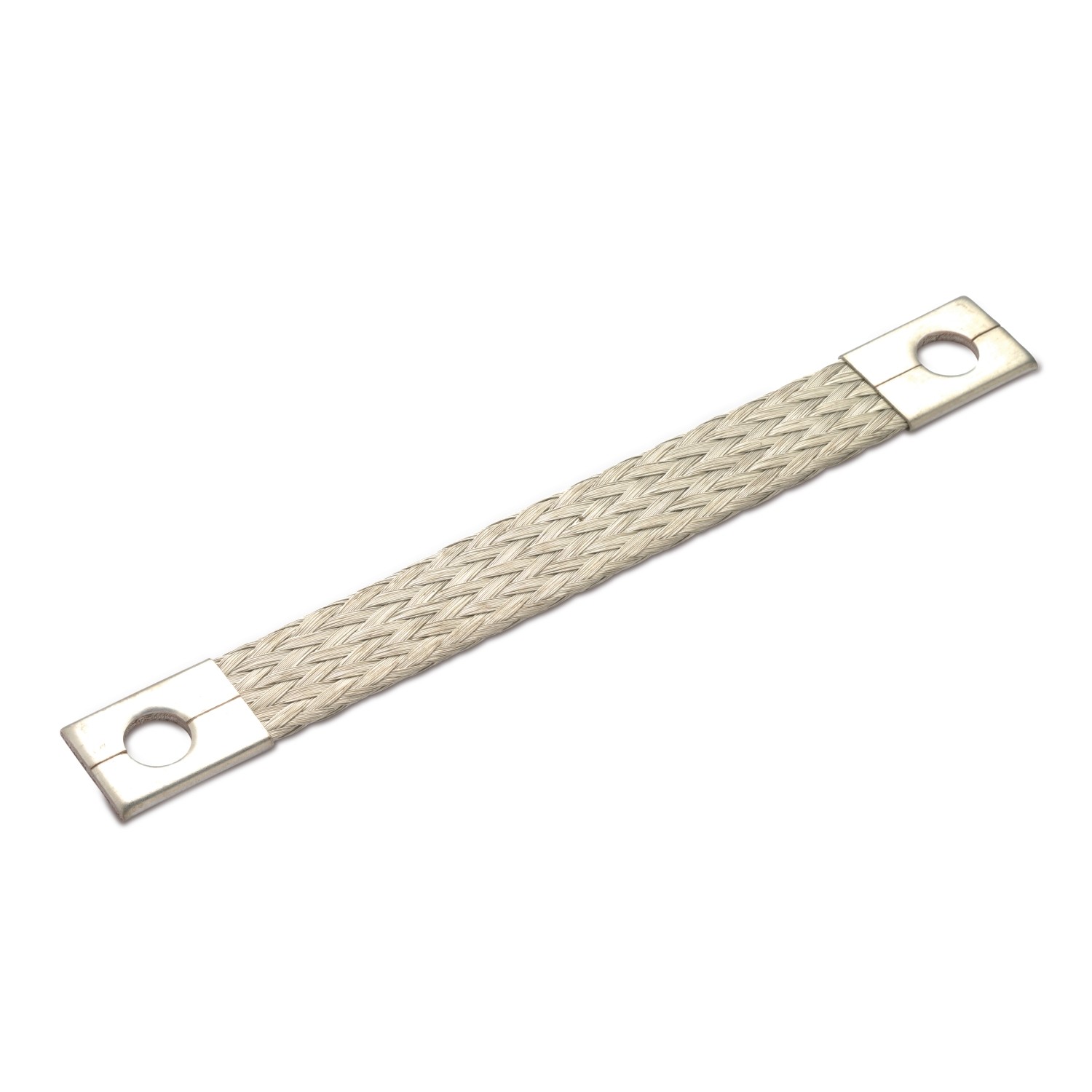

FLEXIBLE COPPER TWISTED PAIRS FOR EARTHING CONNECTIONS

FLEXIBLE COPPER TWISTED PAIRS FOR EARTHING CONNECTIONS

Different sizes are available on demand.

Product Category	flat twisted pair
Material	tinned copper
Operating temperature	from -50 °C to +150 °C
Single wire	Cu-ETP EN13602
Etim 9	EC002809
cid	QE01B

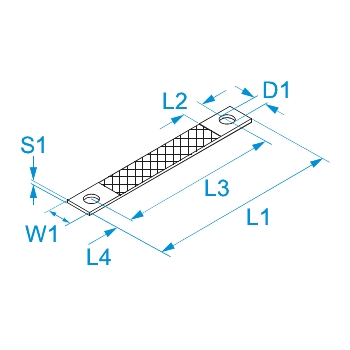

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	W1 [mm]	S1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	Rated current (ΔT = 30 °C) [A]		Quantity per Wishlist
61015	10	(8)	17	2	150	12	130	10	9	90	25/25
61020	10	(8)	17	2	200	12	180	10	9	90	25/25
61025	10	(8)	17	2	250	12	230	10	9	90	25/25
61115	16	(6)	17	2,5	150	12	130	10	9	120	25/25
61120	16	(6)	17	2,5	200	12	180	10	9	120	25/25
61125	16	(6)	17	2,5	250	12	230	10	9	120	25/25
61130	16	(6)	17	2,5	320	12	300	10	9	120	25/25
61135	16	(6)	17	2,5	350	12	330	10	9	120	25/25
61142	16	(6)	17	2,5	420	12	400	10	9	120	25/25
61157	16	(6)	17	2,5	570	12	550	10	9	120	25/25
61166	16	(6)	17	2,5	660	12	640	10	9	120	25/25
61215	25	(4)	22	3	150	12	130	10	9	150	25/25
61220	25	(4)	22	3	200	12	180	10	9	150	25/25
61225	25	(4)	22	3	250	12	230	10	9	150	25/25
61230	25	(4)	22	3	300	12	280	10	9	150	25/25
