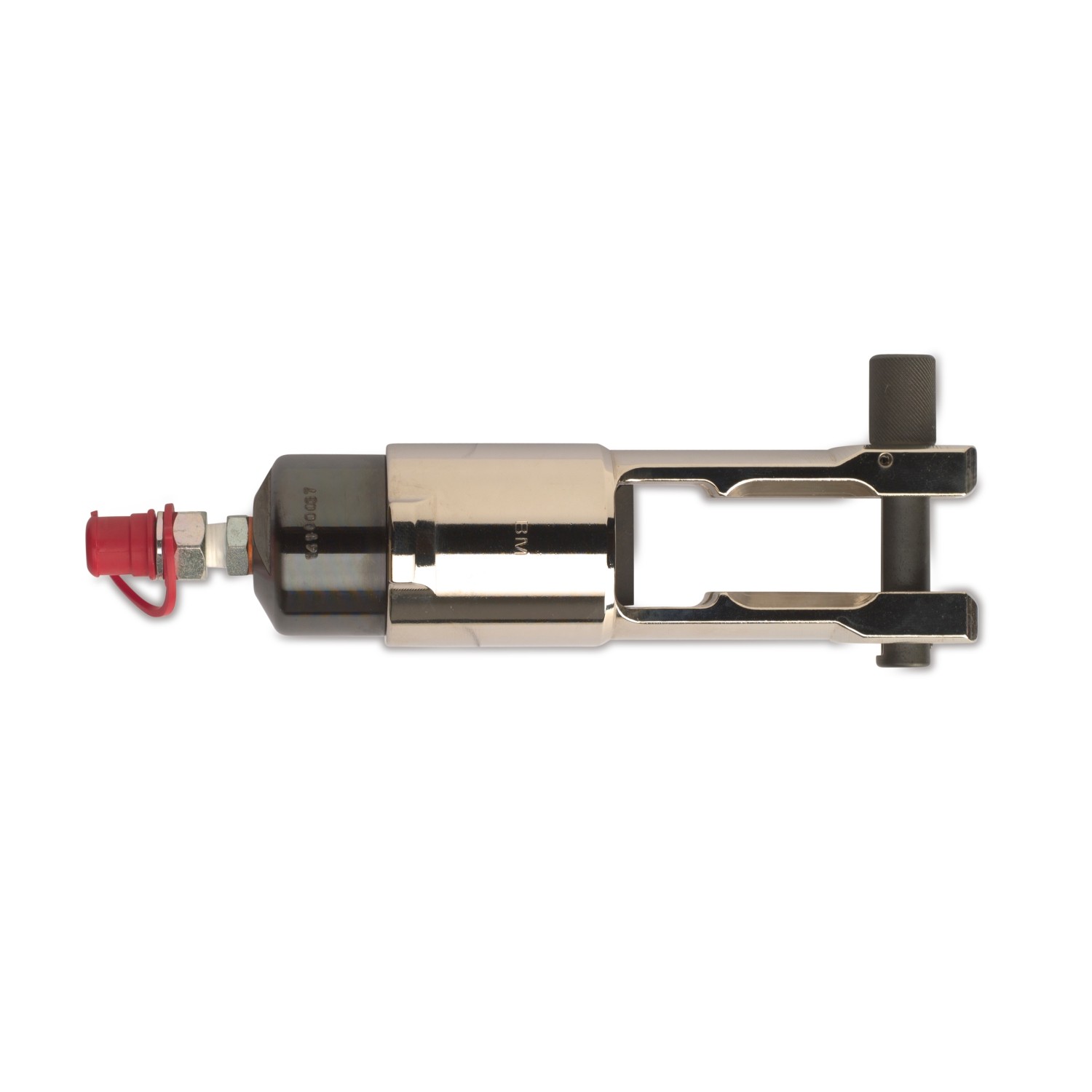

[OLD] CRIMPING HEAD · FOR PUMPS · UP TO 240 mm² (SERIES 83)

[OLD] CRIMPING TOOL · HYDRAULIC · MANUAL · 80KN · DIES SERIES 83

Replaced by
• 283 --> 2833

FEATURES:
• pivot opening
• with male quick coupling fitting with automatic locking
• for operation it must be combined with a pump with an operating pressure of 700 bar

Product Category	heads for pumps up to 240 mm²
Crimping force at die level	80 kN
Dies	83 series
Field of use	terminals • uninsulated and DIN from 10 to 240 mm² (180 mm² for DIN) • uninsulated class 6 from 10 to 185 mm² • medium voltage from 25 to 240 mm² • aluminum from 16 to 185 mm² • bimetallic from 16 to 150 mm² • bimetallic DIN from 16 to 185 mm² • insulated from 10 to 95 mm² • C shunt from 10 to 95 mm² • end-sleeve from 50 to 150 mm²
Etim 9	-
cid	31AA14A

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]	
283	80 kN crimping head for pump	290	70	70	3,3	350x250x100	VA
