Replaced by
• 183P --> 1833
• 183 --> 1833A1

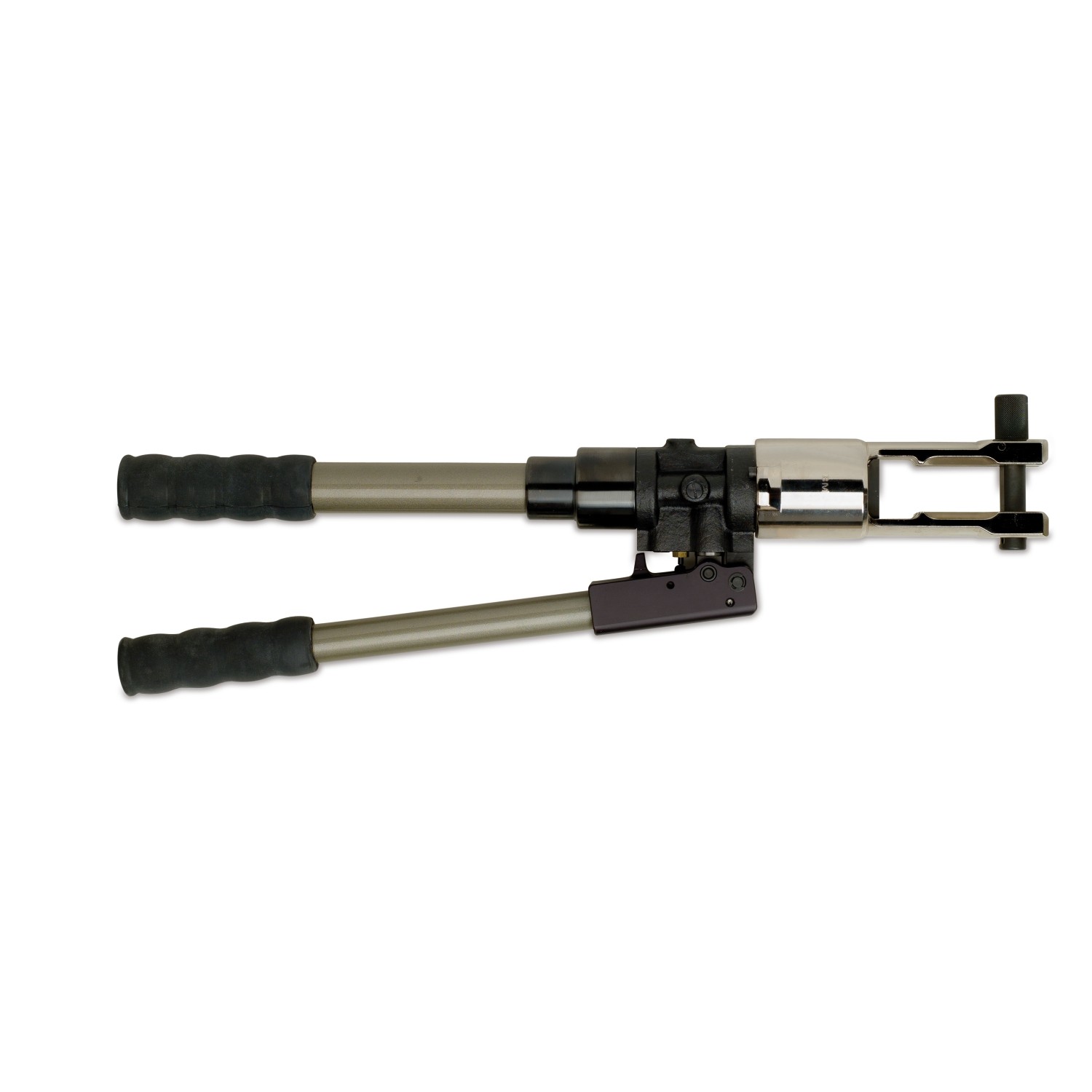

FEATURES:
• pivot opening
• 180° swivel head for easy crimping in narrow places
• two pistons advancement speeds: one for quickly matching die and terminal, the other for crimping
• automatic end-of-work release device to guarantee the crimping quality
• release device activated by a rotation of the handle to open the tool at the end of operation and in case of a wrong maneuver
Product Category | hydraulic crimping tool |
Crimping force at die level | 80 kN |
Dies | 83 series |
Field of use | terminals • uninsulated and DIN from 10 to 240 mm² (180 mm² for DIN) • uninsulated class 6 from 10 to 185 mm² • medium voltage from 25 to 240 mm² • aluminum from 16 to 185 mm² • bimetallic from 16 to 150 mm² • bimetallic DIN from 16 to 185 mm² • insulated from 10 to 95 mm² • C shunt from 10 to 95 mm² • end-sleeve from 50 to 150 mm² |
Etim 9 | - |
cid | 31AA11B |
