Item Code |
Type | Section[mm²] | Section[AWG] | Ø insulant[mm] | Operating temperature | Tools | L1[mm] | L2[mm] | L3[mm] | L4[mm] | D1[mm] | | Quantity per Wishlist |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

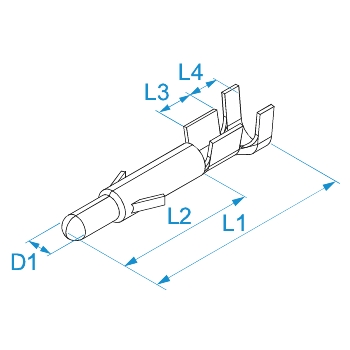

02230 | male | 0.5÷2.0 | (20-14) | 1.9 - 3.4 | from -25 °C to 105 °C max | 53P000 +53M2C2 | 20,5 | 12,8 | 3,2 | 2,8 | 2 | 4000/4000 | |

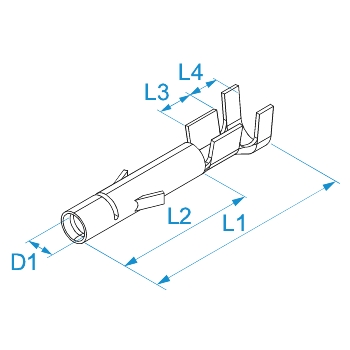

02240 | female | 0.5÷2.0 | (20-14) | 1.9 - 3.4 | from -25 °C to 105 °C max | 53P000 +53M2C2 | 20,5 | 12,8 | 3,2 | 2,8 | 1,9 | 4000/4000 |
