ONE-WAY TERMINAL BLOCKS · END CONNECTORS · 2 INPUTS

Previous

ONE-WAY TERMINAL BLOCKS · END CONNECTORS · WITH MANUAL TIGHTENING

Previous

ONE-WAY TERMINAL BLOCKS · END CONNECTORS · BARS · WITH INDIRECT CLAMPING

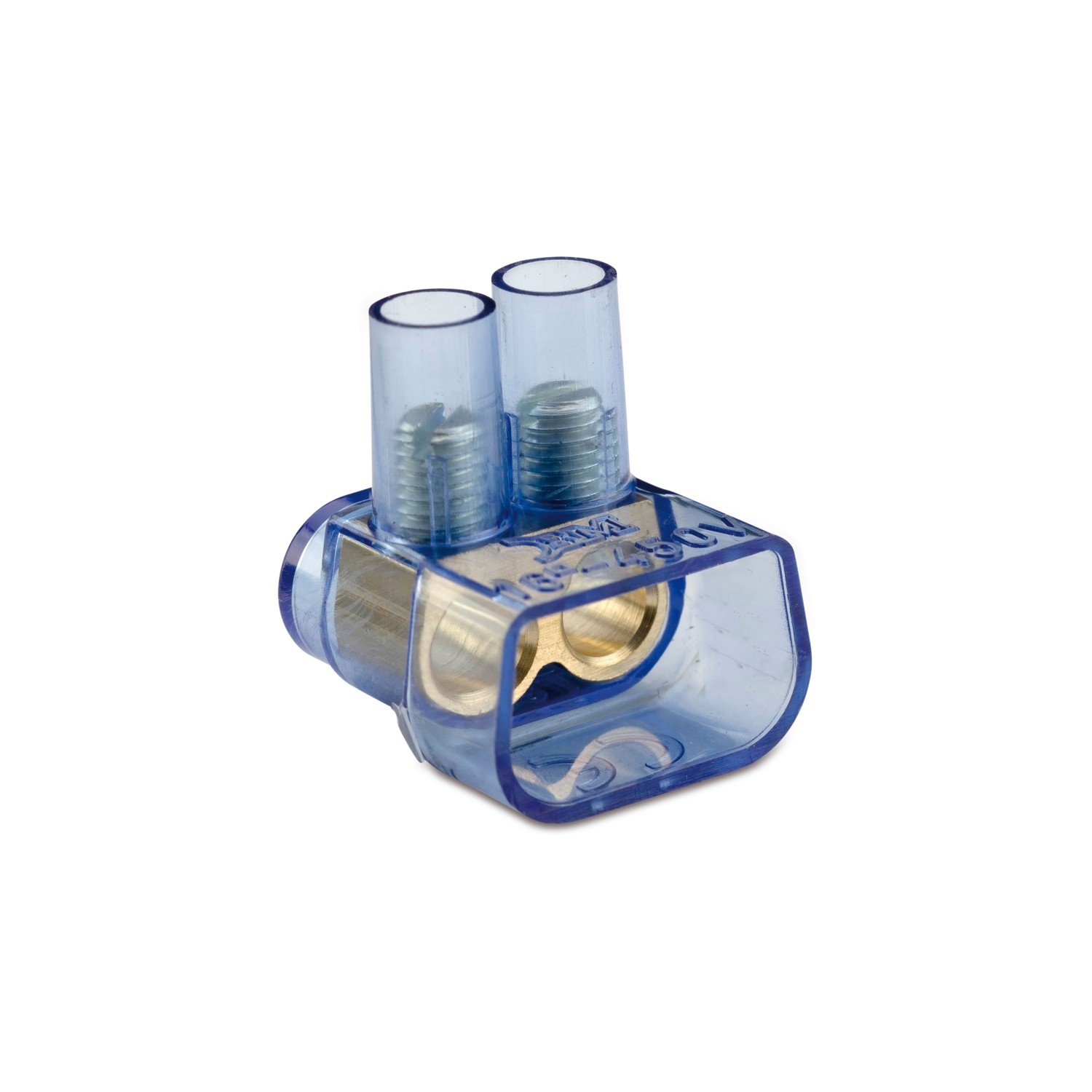

Product Categoryterminal blocks for free connections
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodybrass
Captive screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max operating temperature85 °C
Protection gradeIP20
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9EC001284
cid41MB01E
PDF documents

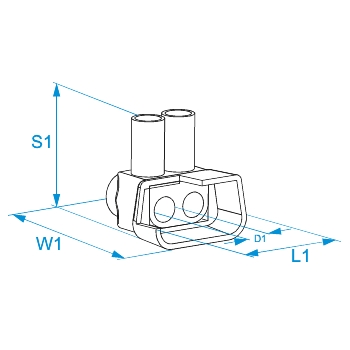

Images with
dimensions
Item
Code		 Conductor section
[mm²]		Connection capability
Section
[mm²]		Connection capability
N. rigid conductors		Connection capability
N. flexible conductors		Rated voltage
[V]		Test current
[A]		ScrewD1
[mm]		L1
[mm]		W1
[mm]		S1
[mm]		 Quantity per
Wishlist
9416 2 x 1616
10
6		2-
2
2		45076M55,520,522,624,530/30
9425 2 x 2525
16
10		2-
2
2		450101M672526,225,420/20
9435 2 x 3535
25
16		2-
2
2		450125M893231,233,410/10
