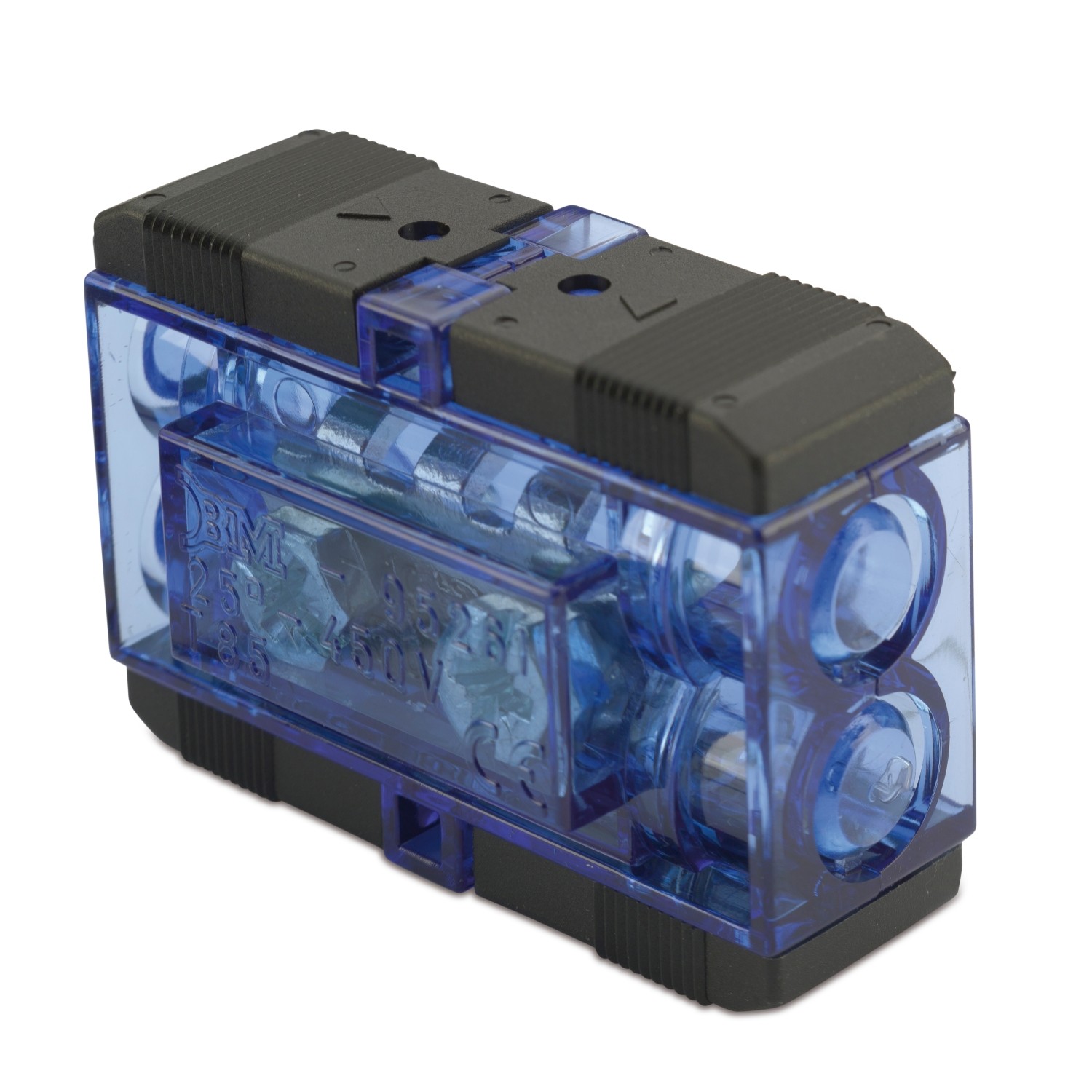

INDIRECT CLAMPING TERMINAL BLOCK · TWIN BLOCK

One-way terminal block with multiple inputs and indirect clamping for electrical cables,
useful for channel or flying shunts or junctions.
Product Categoryone-way terminal blocks
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodynickel-plated die-cast brass
Safety clip inblack polyamide (PA 6.6)
Screw ingalvanized steel
Max operating temperature85 °C
Clamping typeindirect
Test voltage2500 V
Protection gradeIP20
According to std.EN 60947-7-1, EN 60998-1: 2004, EN 60998-2-1: 2004, EN 60999
Etim 9EC001062
cid41MB09A
PDF documents
Images with
dimensions
Item
Code		 Conductor section
[mm²]		Connectable flexible conductors
Primary
[mm²]		Connectable flexible conductors
Derivative
[mm²]		Rated voltage
[V]		L1
[mm]		W1
[mm]		S1
[mm]		 Quantity per
Wishlist
95261 10-2525
25
25
16
16
10		25
16
10
16
10
10		4506427431/10
95262 25-5050
50
50
35
35
25		50
35
25
35
25
25		4507134491/10
95263 50-9595
95
95
70
70
50		95
70
50
70
50
50		4507741611/10
95264 70-120120
120
120
95
95
70		120
95
70
95
70
70		4509050721/5
