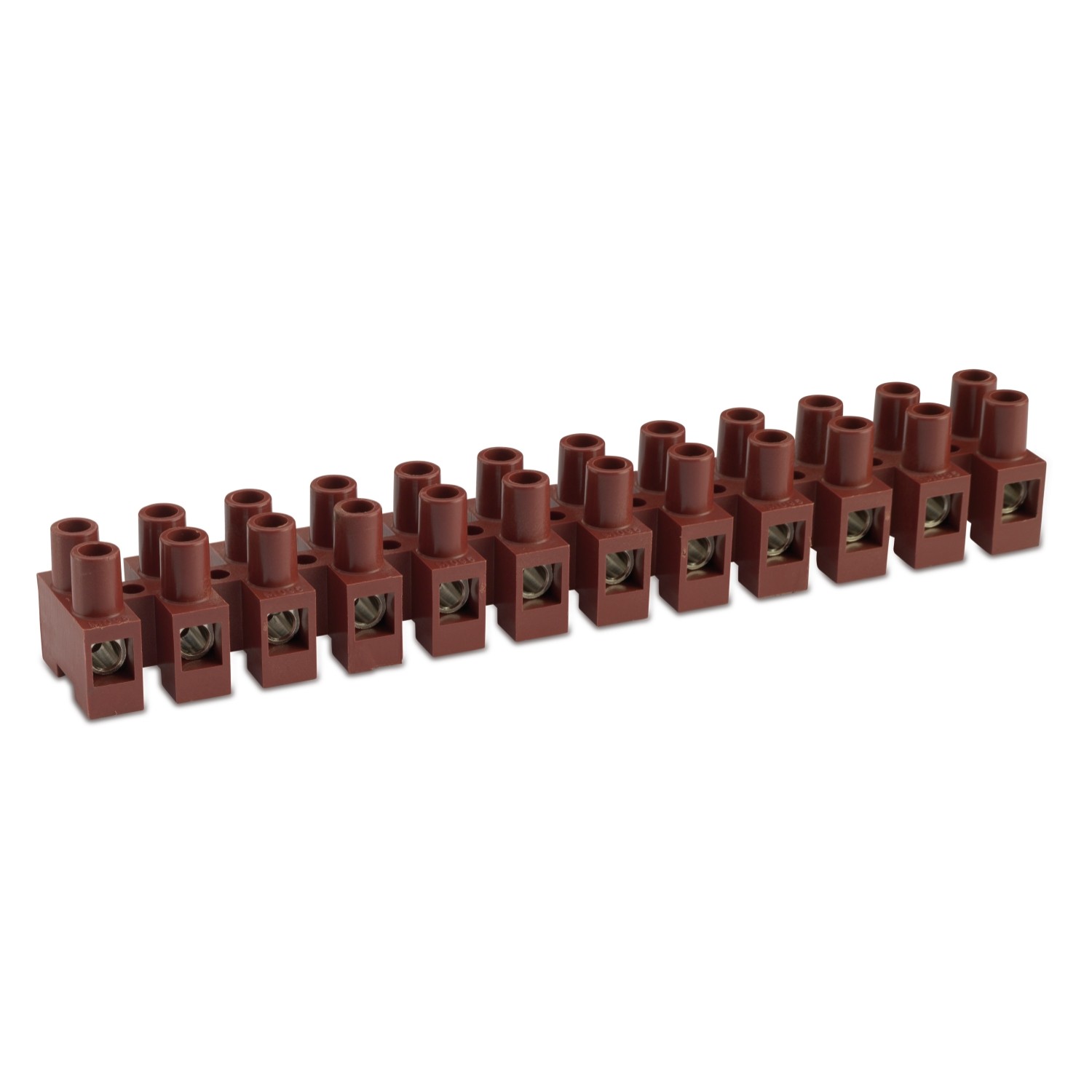

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M095 SERIES WITH FIBERGLASS AND WIRE PROTECTION

Product was successfully added to your shopping cart.

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M095 SERIES WITH FIBERGLASS AND WIRE PROTECTION

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M095 SERIES WITH FIBERGLASS

ACCESSORIES FOR M093 SERIES · PROTECTION COVERS WITH FIBERGLASS · FROM 3 TO 5 WAYS

High temperature version with wire protection of the M095 series

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M4)
Wire protection	stainless steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
Stripping length	9 mm
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MA07D

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	6	-	400	41	140	0,7
	-	18-8	600	50	110	1,2

file n° E 70156

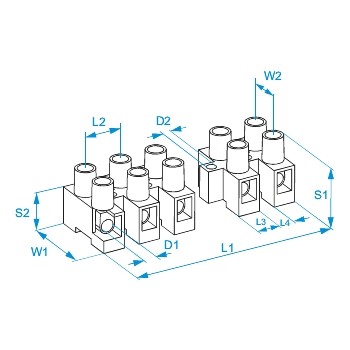

Images with
dimensions

Coded items

Item Code	Ways	Color	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
95FS1	1	Brown	9,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS2	2	Brown	24,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS3	3	Brown	39 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS4	4	Brown	54,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS5	5	Brown	69,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS6	6	Brown	84 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS7	7	Brown	99 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS8	8	Brown	114,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS9	9	Brown	129,5 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS10	10	Brown	145 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95FS11	11	Brown	160,2 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	Contact BM
95GFCS	12	Brown	174 ± 1	15	9,4	5,6	25,3	11	25,7	15,7	5	4,2	10/200
