ONE-WAY TERMINAL BLOCKS · 11 INPUTS

Product was successfully added to your shopping cart.

ONE-WAY TERMINAL BLOCKS · 11 INPUTS

ONE-WAY TERMINAL BLOCKS · 6 INPUTS

ACCESSORIES FOR ONE-WAY TERMINAL BLOCKS WITH MULTIPLE INPUTS · DIN BAR BASE

Product Category	one-way terminal blocks
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass
Screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MB06A

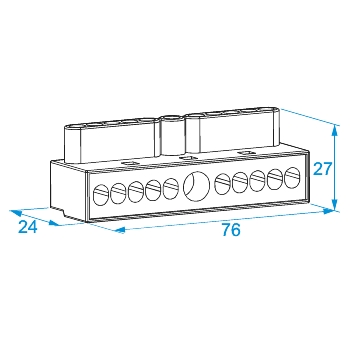

Images with
dimensions

Coded items

Item Code	Conductor section [mm²]	Rated voltage [V]	Test current [A]	Inputs	Stripping length [mm]	Screw		Quantity per Wishlist
9982	(2,5 ÷ 6) x 10 (6 ÷ 16) x 1	750	40	11	11	M4	25/25
