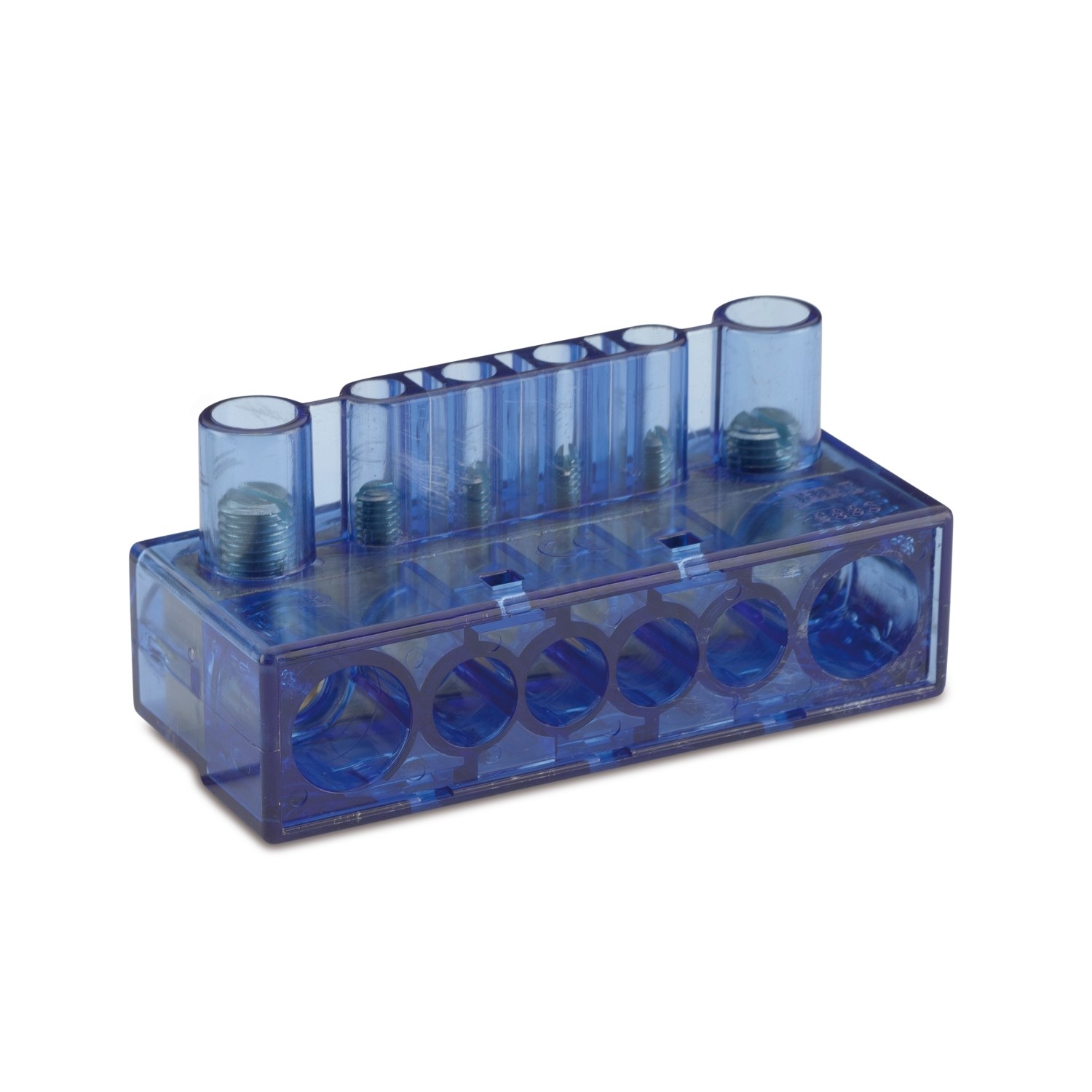

ONE-WAY TERMINAL BLOCKS · 6 INPUTS

Previous

ONE-WAY TERMINAL BLOCKS · 5 INPUTS

Previous

ONE-WAY TERMINAL BLOCKS · 11 INPUTS

Product Categoryone-way terminal blocks
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodybrass
Screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max operating temperature85 °C
Protection gradeIP20
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9EC001284
cid41MB05A
PDF documents

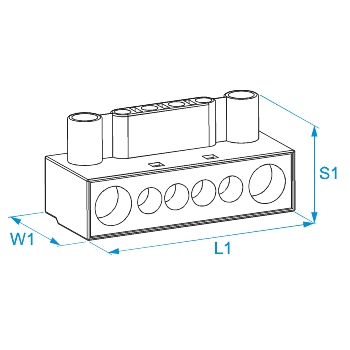

Images with
dimensions
Item
Code		 Conductor section
[mm²]		Rated voltage
[V]		Test current
[A]		InputsStripping length
[mm]		ScrewL1
[mm]		W1
[mm]		S1
[mm]		 Quantity per
Wishlist
9981 (2,5 ÷ 6) x 4
(6 ÷ 16) x 2		75040611M448242625/25
9983 (6 ÷ 16) x 4
(16 ÷ 35) x 2		750125616
18		M5, M877353525/25
