ONE-WAY TERMINAL BLOCKS · 4 INPUTS

Product was successfully added to your shopping cart.

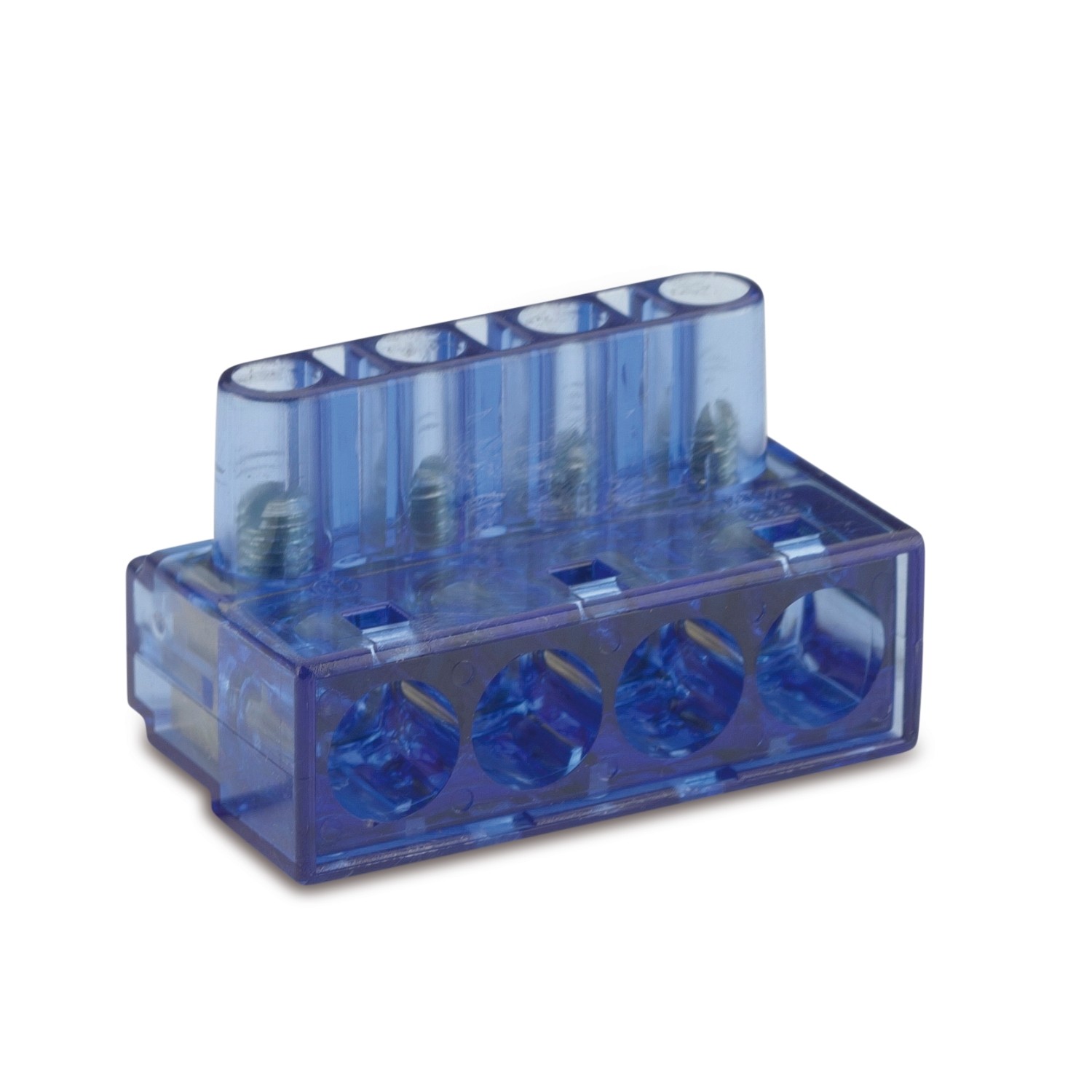

ONE-WAY TERMINAL BLOCKS · 4 INPUTS

ONE-WAY TERMINAL BLOCKS · 3 INPUTS

ONE-WAY TERMINAL BLOCKS · 5 INPUTS

Product Category	one-way terminal blocks
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MB03A

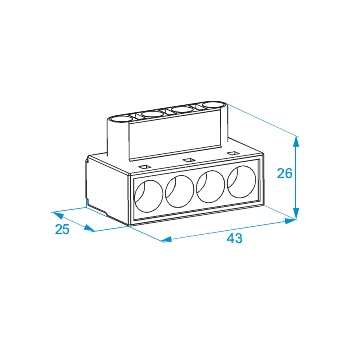

Images with
dimensions

Coded items

Item Code	Conductor section [mm²]	Rated voltage [V]	Test current [A]	Inputs	Stripping length [mm]	Screw		Quantity per Wishlist
998	6 ÷ 16	750	40	4	10	M5	25/25
