ONE-WAY TERMINAL BLOCKS · 3 INPUTS

Unipolar terminal block with multiple inputs that can be fixed
on DIN 46277/1 and DIN 46277/3 rail

Product Category	one-way terminal blocks
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MB02A

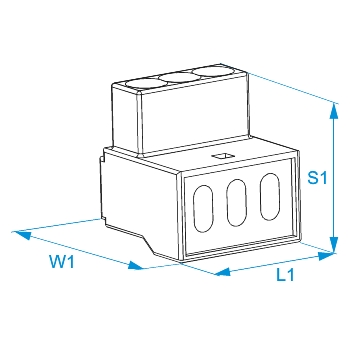

Images with
dimensions

Item Code	Conductor section [mm²]	Wire protection	Rated voltage [V]	Test current [A]	Inputs	Stripping length [mm]	Screw	L1 [mm]	W1 [mm]	S1 [mm]		Quantity per Wishlist
996	1 ÷ 6	stainless steel	450	16	3	10	M4	22	21	24	50/50
9984	16 ÷ 35		750	125	3	18	M8	47	36,4	36	25/25
