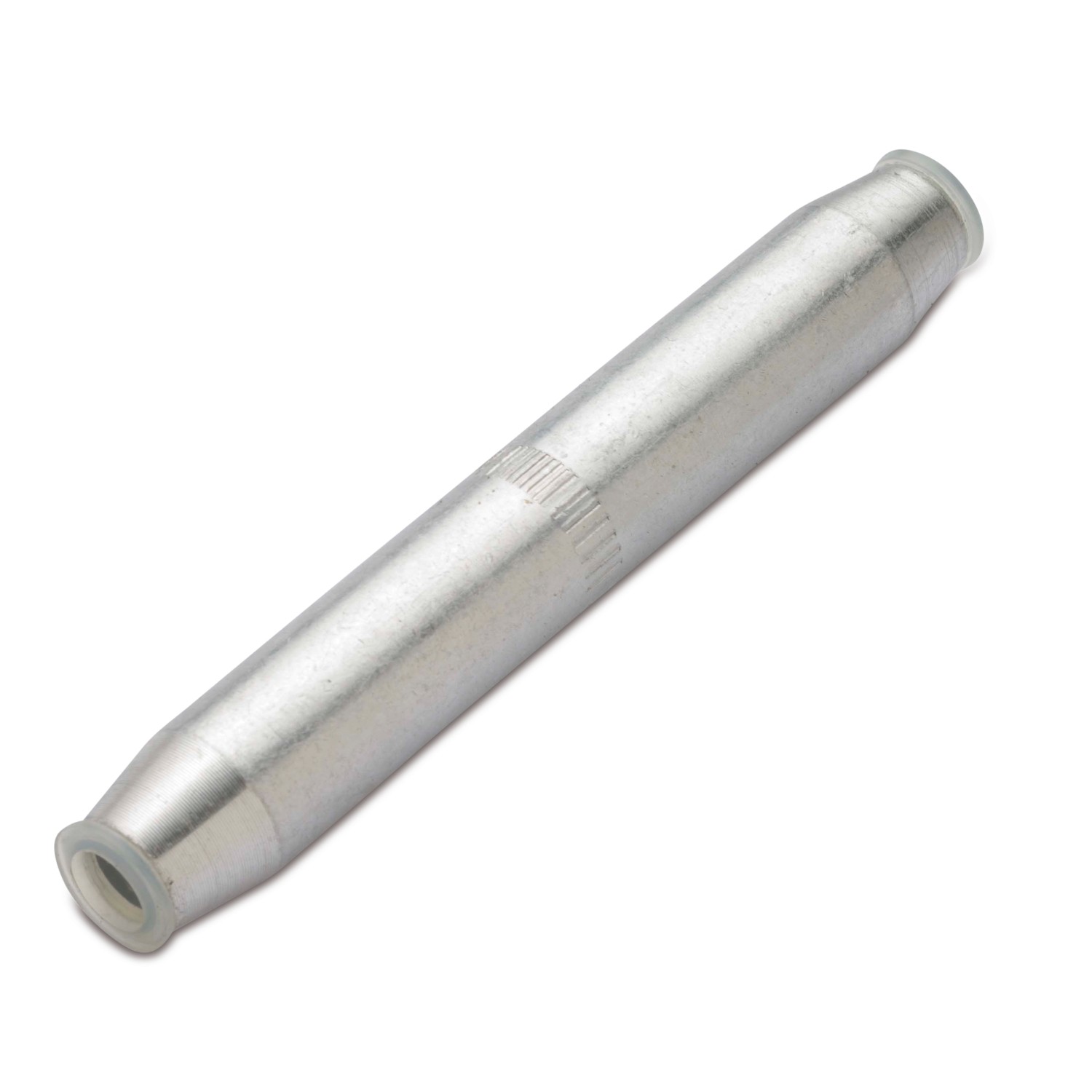

JOINTS · FOR ALUMINUM CONDUCTORS · DIN 48201

REDUCTION JOINTS · FOR ALUMINUM OR COPPER CONDUCTORS · MEDIUM VOLTAGE

Product Category	joint
Terminal material	aluminum 1050 A EN573-3 with no less than 99.5% purity
Operating temperature	from -50 °C to +150 °C
Protection	the conductor housing is filled with grease (dropping point 90°C) and plugged with a plastic cap to avoid oxidation.
Type	with central and sealed diaphragm for a right insertion of the conductor.
According to std.	DIN 48201
Etim 9	EC001060
cid	11TG03A

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	Indent [mm]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
70402	35 ÷ 35	(2 - 2)	13	95	45,5	14	8	10/10
70403	50 ÷ 50	(1/0 - 1/0)	15	95	45,5	16	9,8	10/10
70404	70 ÷ 70	(2/0 - 2/0)	20	100	48	18,5	11,2	10/10
70405	95 ÷ 95	(3/0 - 3/0)	21	105	50,5	22	13,5	10/10
70406	120 ÷ 120	(4/0 - 4/0)	22	110	52,5	23	14,7	10/10
70407	150 ÷ 150	(300 - 300)	25	110	52,5	25	16,3	10/10
70408	185 ÷ 185	(400 - 400)	28	130	62	28,5	18,3	10/10
70409	240 ÷ 240	(500 - 500)	32	130	62	32	21	10/10
