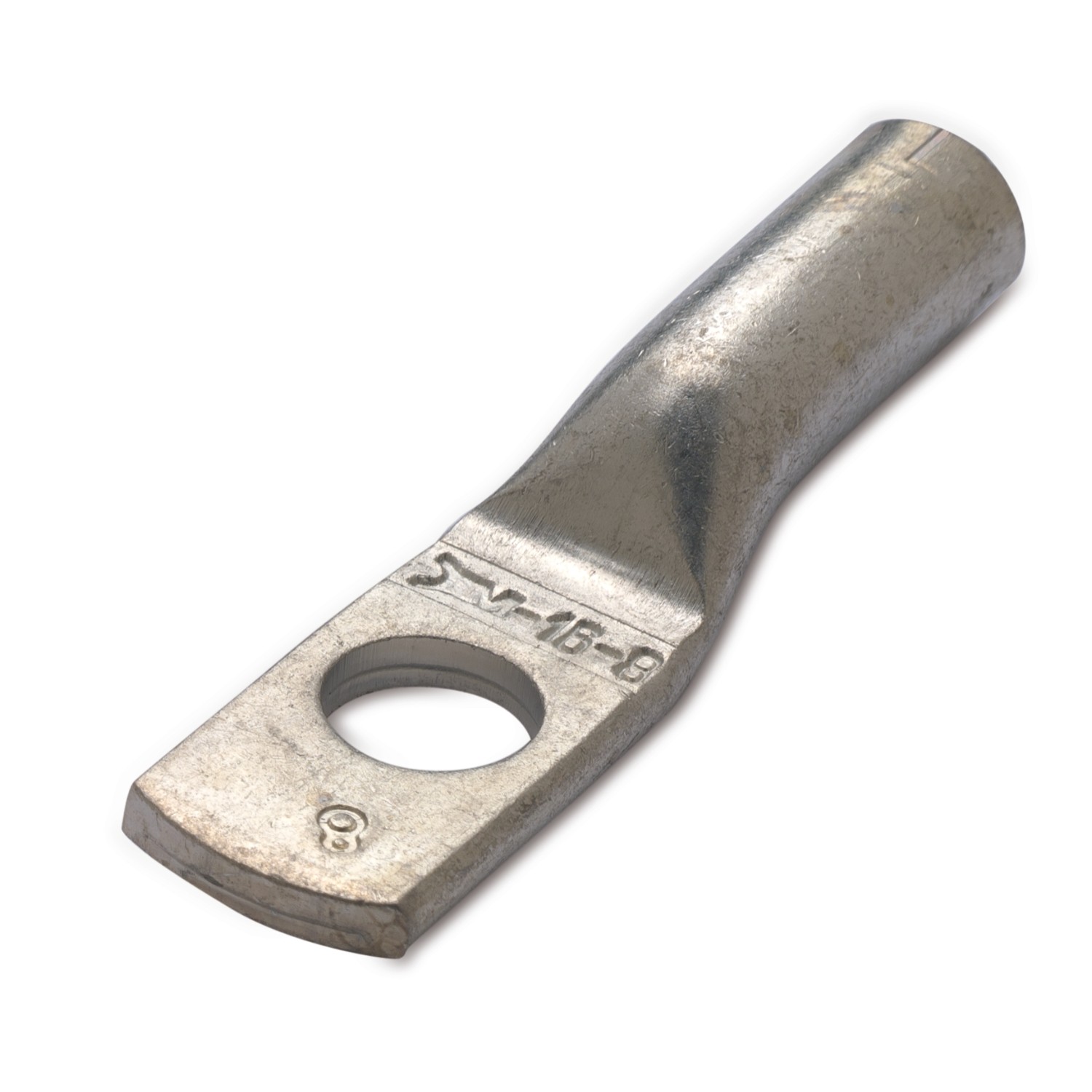

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · DIN 46235

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · RING · SILVER ALLOY BRAZED DIN 46234

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · BENT 90° · FROM DIN 46235 TERMINAL LUGS

Product Category	terminal lugs
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Dimensions	compliant to DIN 46235
Inspection hole	no
According to std.	DIN 46235
Etim 9	EC001051
cid	11TA04G

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
80425	10	(8)	5	#10	6	9	36	10	6	9	6	4,5	5,3	100/100
80431	10	(8)	6	#12	6	9	36	10	8	10,5	6	4,5	6,4	100/100
80531	16	(6)	6	#12	8	13	49	20	8	10,5	8,5	5,5	6,4	100/100
80537	16	(6)	8	5/16"	8	13	49	20	10	13	8,5	5,5	8,4	100/100
80543	16	(6)	10	3/8"	8	17	53	20	12	15	8,5	5,5	10,5	100/100
80631	25	(4)	6	#12	10	14	48,5	20	8	10,5	10	7	6,4	100/100
80637	25	(4)	8	5/16"	10	16	51	20	10	13	10	7	8,4	100/100
80643	25	(4)	10	3/8"	10	17	53	20	12	15	10	7	10,5	100/100
80649	25	(4)	12	1/2"	10	19	54	20	13	16	10	7	13	100/100
80737	35	(2)	8	5/16"	12	17	55	20	10	13	12,5	8,5	8,4	100/100
80743	35	(2)	10	3/8"	12	19	57	20	12	15	12,5	8,5	10,5	100/100
80749	35	(2)	12	1/2"	12	21	58	20	13	16	12,5	8,5	13	100/100
80837	50	(1/0)	8	5/16"	14	20	65	28	10	13	14	10	8,4	50/50
80843	50	(1/0)	10	3/8"	14	22	67	28	12	15	14	10	10,5	50/50
80849	50	(1/0)	12	1/2"	14	24	68	28	13	16	14	10	13	50/50
80861	50	(1/0)	16	5/8"	14	28	71	28	16	19	14	10	17	50/50
80937	70	(2/0)	8	5/16"	16	24	68	28	10	13	16	12	8,4	50/50
80943	70	(2/0)	10	3/8"	16	24	70	28	12	15	16	12	10,5	50/50
80949	70	(2/0)	12	1/2"	16	24	71	28	13	16	16	12	13	50/50
80961	70	(2/0)	16	5/8"	16	30	74	28	16	19	16	12	17	50/50
83143	95	(3/0)	10	3/8"	18	28	80	35	12	15	19	13,8	10,5	25/25
83149	95	(3/0)	12	1/2"	18	28	81	35	13	16	19	13,8	13	25/25
83161	95	(3/0)	16	5/8"	18	32	84	35	16	19	19	13,8	17	25/25
83243	120	(4/0)	10	3/8"	20	32	85	35	12	15	21	15,5	10,5	25/25
83249	120	(4/0)	12	1/2"	20	32	86	35	13	16	21	15,5	13	25/25
83261	120	(4/0)	16	5/8"	20	32	89	35	16	19	21	15,5	17	25/25
83267	120	(4/0)	20	3/4"	20	38	92	35	20	22	21	15,5	21	25/25
83343	150	(300)	10	3/8"	22	34	93	35	12	15	23,5	17	10,5	25/25
83349	150	(300)	12	1/2"	22	34	94	35	13	16	23,5	17	13	25/25
83361	150	(300)	16	5/8"	22	34	97	35	16	19	23,5	17	17	25/25
83367	150	(300)	20	3/4"	22	40	100	35	20	22	23,5	17	21	10/10
83443	185	(400)	10	3/8"	25	37	97	40	12	15	25,5	19	10,5	10/10
83449	185	(400)	12	1/2"	25	37	98	40	13	16	25,5	19	13	10/10
83461	185	(400)	16	5/8"	25	37	101	40	16	19	25,5	19	17	10/10
83467	185	(400)	20	3/4"	25	40	104	40	20	22	25,5	19	21	10/10
83549	240	(500)	12	1/2"	28	42	107	40	13	16	29	21,5	13	10/10
83561	240	(500)	16	5/8"	28	42	108	40	16	19	29	21,5	17	10/10
83567	240	(500)	20	3/4"	28	45	111	40	20	22	29	21,5	21	10/10
