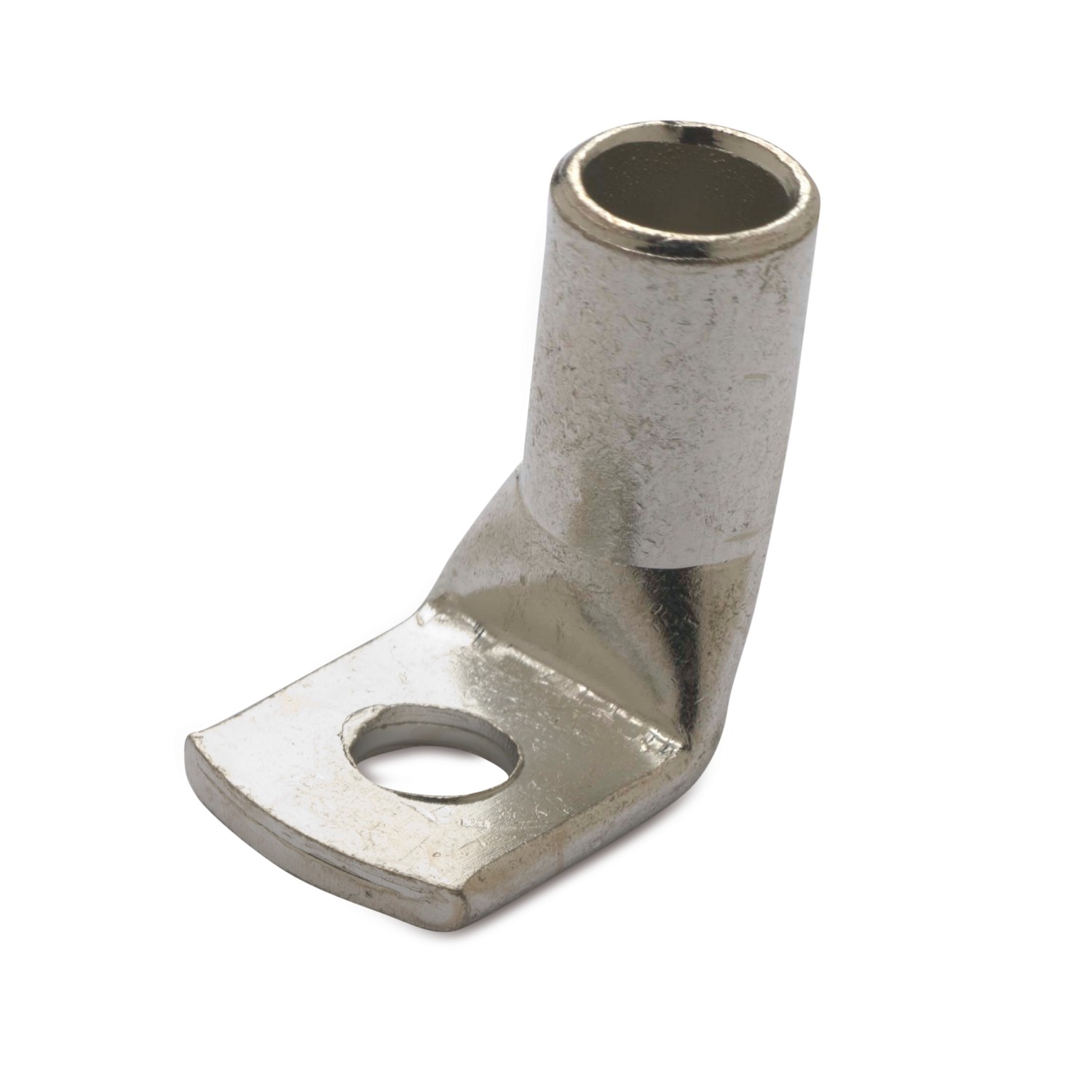

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · BENT 90° · FROM DIN 46235 TERMINAL LUGS

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · DIN 46235

Product Category	terminal lugs
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Dimensions	dimensions before bending are compliant to DIN 46235 standard
Inspection hole	no
Etim 9	EC001051
cid	11TA04M

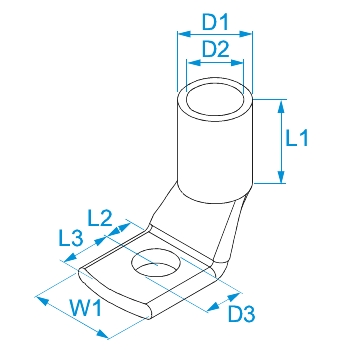

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
805379	16	(6)	8	5/16"	8	13	20	10	13	8,5	5,5	8,4	100/100
805439	16	(6)	10	3/8"	8	17	20	12	15	8,5	5,5	10,5	100/100
806499	25	(4)	12	1/2"	10	19	20	13	16	10	7	13	100/100
807499	35	(2)	12	1/2"	12	21	20	13	16	12,5	8,5	13	100/100
808499	50	(1/0)	12	1/2"	14	24	28	13	16	14	10	13	50/50
809499	70	(2/0)	12	1/2"	16	24	28	13	16	16	12	13	50/50
831499	95	(3/0)	12	1/2"	18	28	35	13	16	19	13,8	13	25/25
831619	95	(3/0)	16	5/8"	18	32	35	16	19	19	13,8	17	25/25
832619	120	(4/0)	16	5/8"	20	32	35	16	19	21	15,5	17	25/25
