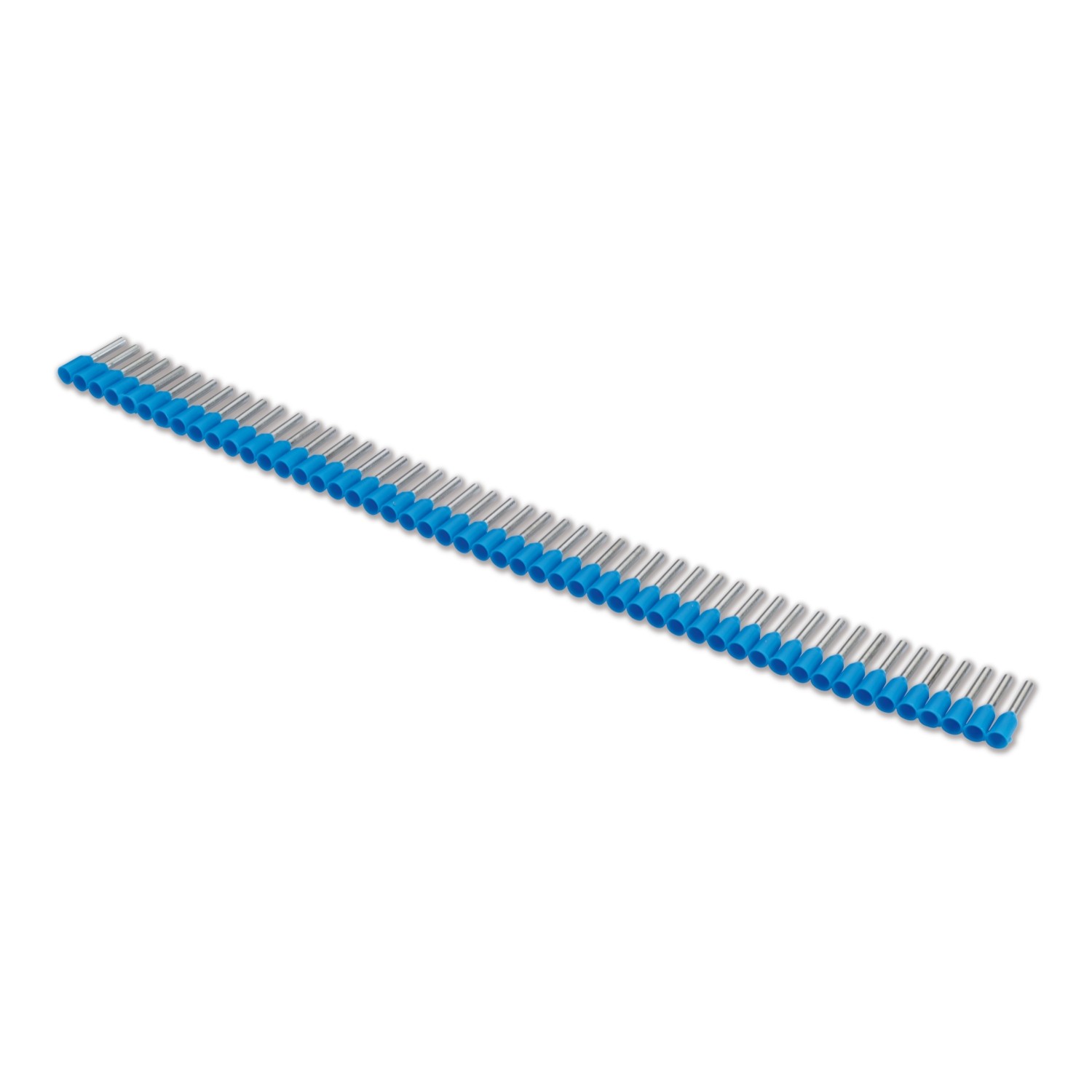

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE · IN A STRAP

Product was successfully added to your shopping cart.

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE · IN A STRAP

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE · IN A REEL

Product Category	end-sleeve
Terminal material	tinned copper
Insulation material	polypropylene (PP) without flame retardant
Operating temperature	105°C max
Equipment	use tool BM 5375
According to std.	DIN 46228-4 (tubular ferrules with plastic sleeve), UL486F (bare and covered ferrules)
Etim 9	EC000005
cid	11TC02B

file n° E 506333, • No UL

Images with
dimensions

Coded items

Item Code	Color	Standard color 1	Standard color 2	Color DIN 46228/4	Section [mm²]	Section [AWG]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
90501•	Orange	√	-	-	0,5	(20)	14	8	3,1	2,6	1	500/2500
90601	White	-	√	√	0,5	(20)	14	8	3,1	2,6	1	500/2500
90502•	White	√	-	-	0,75	(18)	14	8	3,3	2,8	1,2	500/2500
90702•	LIght blue	-	√	-	0,75	(18)	14	8	3,3	2,8	1,2	500/2500
90602	Grey	-	-	√	0,75	(18)	14	8	3,3	2,8	1,2	500/2500
90503•	Yellow	√	-	-	1	(18)	14	8	3,5	3	1,4	500/2500
90603	Red	-	√	√	1	(18)	14	8	3,5	3	1,4	500/2500
90504•	Red	√	-	-	1,5	(16)	14	8	4	3,5	1,7	500/2500
90604	Black	-	√	√	1,5	(16)	14	8	4	3,5	1,7	500/2500
90506	Blue	√	-	√	2,5	(14)	14	8	4,7	4,2	2,2	500/2500
90706•	Grey	-	√	-	2,5	(14)	14	8	4,7	4,2	2,2	500/2500
