TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · PIN

Product was successfully added to your shopping cart.

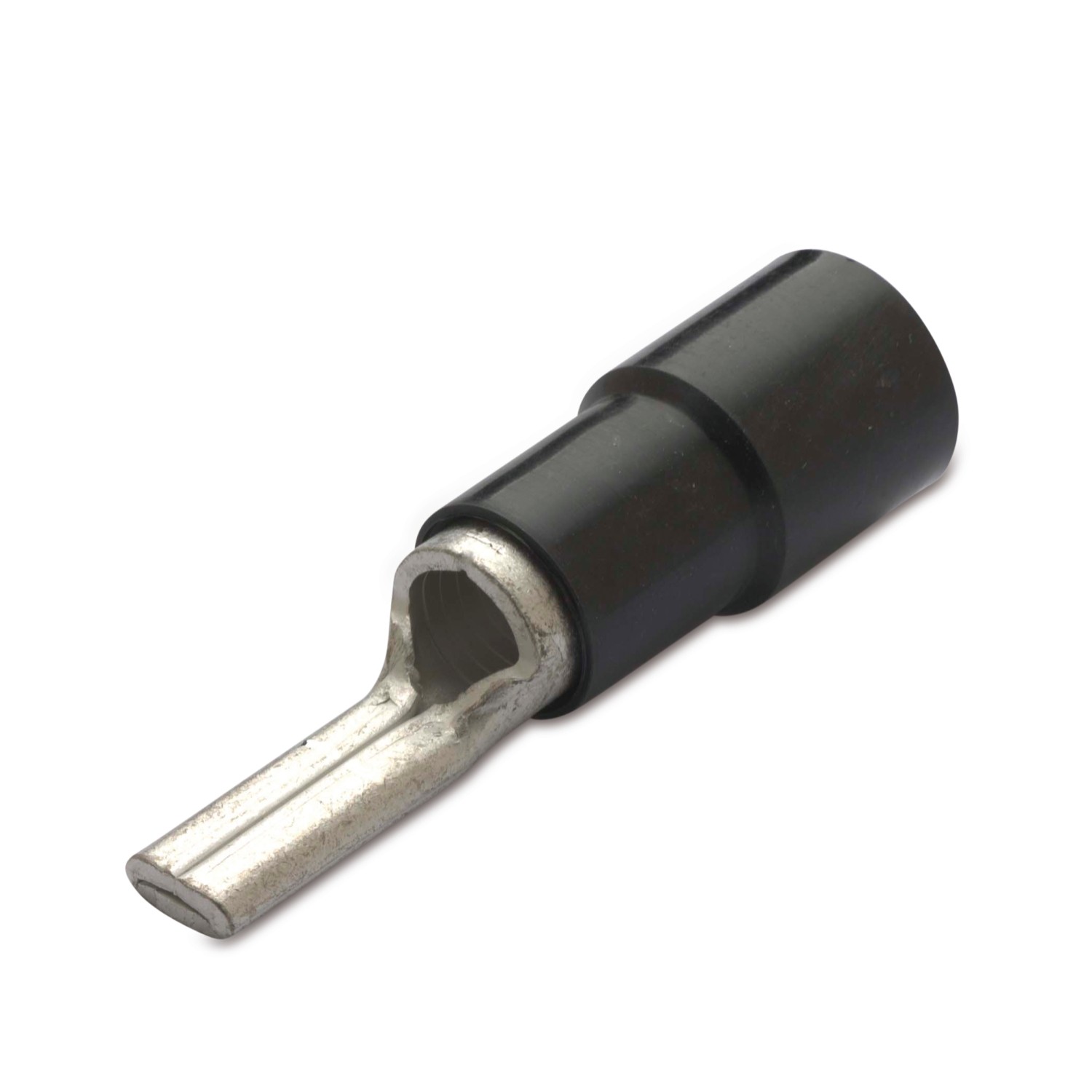

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · PIN

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · PIN · SILVER ALLOY BRAZED DIN 46234

Product Category	terminal lugs
Terminal material	tinned copper
Insulation material	polyamide (PA 6.6)
Insulation self-extinguishing grade	UL 94 V0
Operating temperature	125 °C max
Etim 9	EC001052
cid	11TB04E

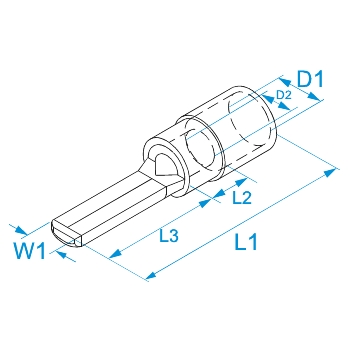

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
00450	Black	10	(8)	4,3	35,5	8	12	8,2	4,5	100/100
00550	Black	16	(6)	5,5	38	10	13	9	5,8	100/100
00650	Black	25	(4)	6,8	47,5	13,5	15	11,5	6,7	100/100
