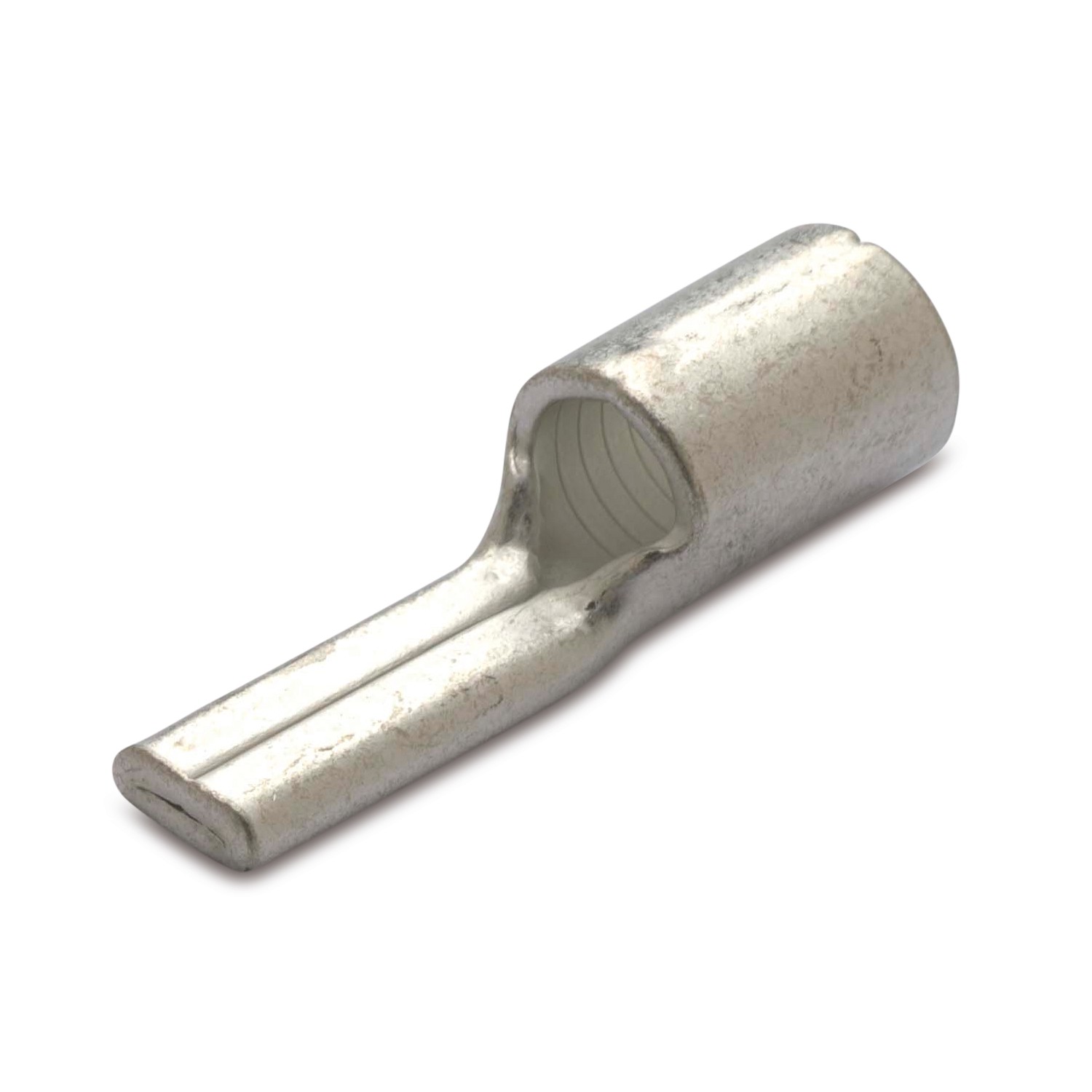

TERMINAL LUGS FOR COPPER CONDUCTORS · UNINSULATED · PIN · SILVER ALLOY BRAZED DIN 46234

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · FORK

TERMINAL LUGS FOR COPPER CONDUCTORS · NYLON INSULATED · BLACK · PIN

Product Category	terminal lugs
Terminal material	tinned copper
Seam	brazed silver alloy
Operating temperature	from -50 °C to +150 °C
Etim 9	EC001052
cid	11TA04L

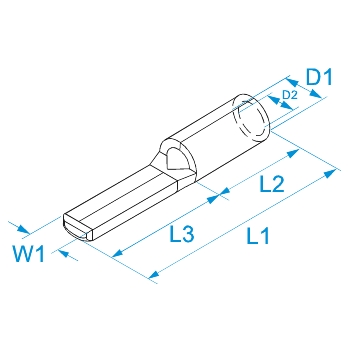

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
01450	10	(8)	4,3	22	8	12	7	4,5	100/100
01550	16	(6)	5,5	25	10	13	8,5	5,8	100/100
01650	25	(4)	6,8	33,5	13,5	15	9,6	6,7	100/100
01750	35	(2)	8	40,5	16	24,5	11,8	8,4	100/100
01850	50	(1/0)	9,5	45	19	26	13,6	9,6	100/100
01950	70	(2/0)	11	55	24	31	15,8	11,4	50/50
02050	95	(3/0)	12,5	55	24	31	18,9	13,5	50/50
