PDF documents
Images with
dimensions

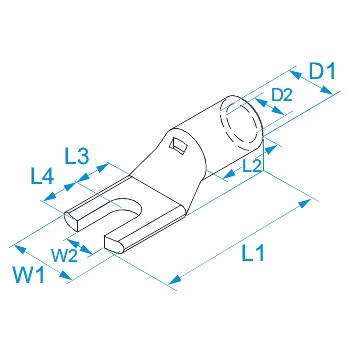

dimensions
| Item Code |
Section[mm²] | Section[AWG/MCM] | For screwØ screw[mm] | For screwStud size | W1[mm] | W2[mm] | L1[mm] | L2[mm] | L3[mm] | L4[mm] | D1[mm] | D2[mm] | | Quantity per Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01420 | 10 | (8) | 4 | #8 | 10 | 4,3 | 30,5 | 9,5 | 8 | 7 | 7 | 5 | 100/100 | |
| 01426 | 10 | (8) | 5 | #10 | 10 | 5,3 | 30,5 | 9,5 | 8 | 7 | 7 | 5 | 100/100 | |
| 01523 | 16 | (6) | 4 | #8 | 11,5 | 4,3 | 34 | 11 | 9,5 | 8 | 8 | 6 | 100/100 | |
| 01526 | 16 | (6) | 5 | #10 | 11,5 | 5,3 | 34 | 11 | 9,5 | 8 | 8 | 6 | 100/100 |
