ONE-WAY TERMINAL BLOCKS · END CONNECTORS · FOR CRIMPING

QUICK CONNECTOR WITH INSULATION-PIERCING

Product Category	terminal blocks for free connections
Insulating housing	polyamide (PA 6.6) natural color UL 94 V2
Conductive body	tinned copper
Max operating temperature	105 °C
Max rated voltage	600 V
According to std.	UL486C
Assembly	the actual connection capacity changes according to the number and section of the conductors as shown in the application note (website)
Crimping tool	528
Etim 9	EC001059
cid	41MB01D

file n° E 137735, • No UL

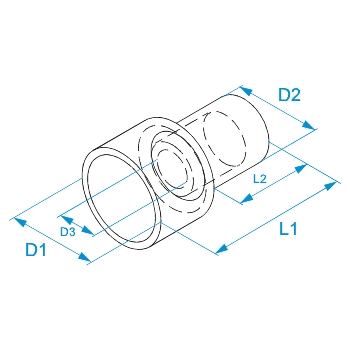

Images with
dimensions

Coded items

Item Code	Conductor section [mm²]	Conductor section [AWG]	Connection capability	ID tool	D1 [mm]	D2 [mm]	D3 [mm]	L1 [mm]	L2 [mm]		Quantity per Wishlist
00170	0,25 ÷ 1,5	(22-16)	2÷5	2	6,2	5,6	2,6	15,2	6,8	100/1000
00270	1,5 ÷ 2,5	(16-14)	2÷7	2	6,5	5,9	3,2	15,2	7	100/1000
00370	2.5 ÷ 6	(12-10)	2÷5	5	9,4	7,3	4	17,8	8,5	50/500
00470•	6 ÷ 10	(20-10)	2÷4		12	9,3	4,6	22,2	9,3	100/1000
