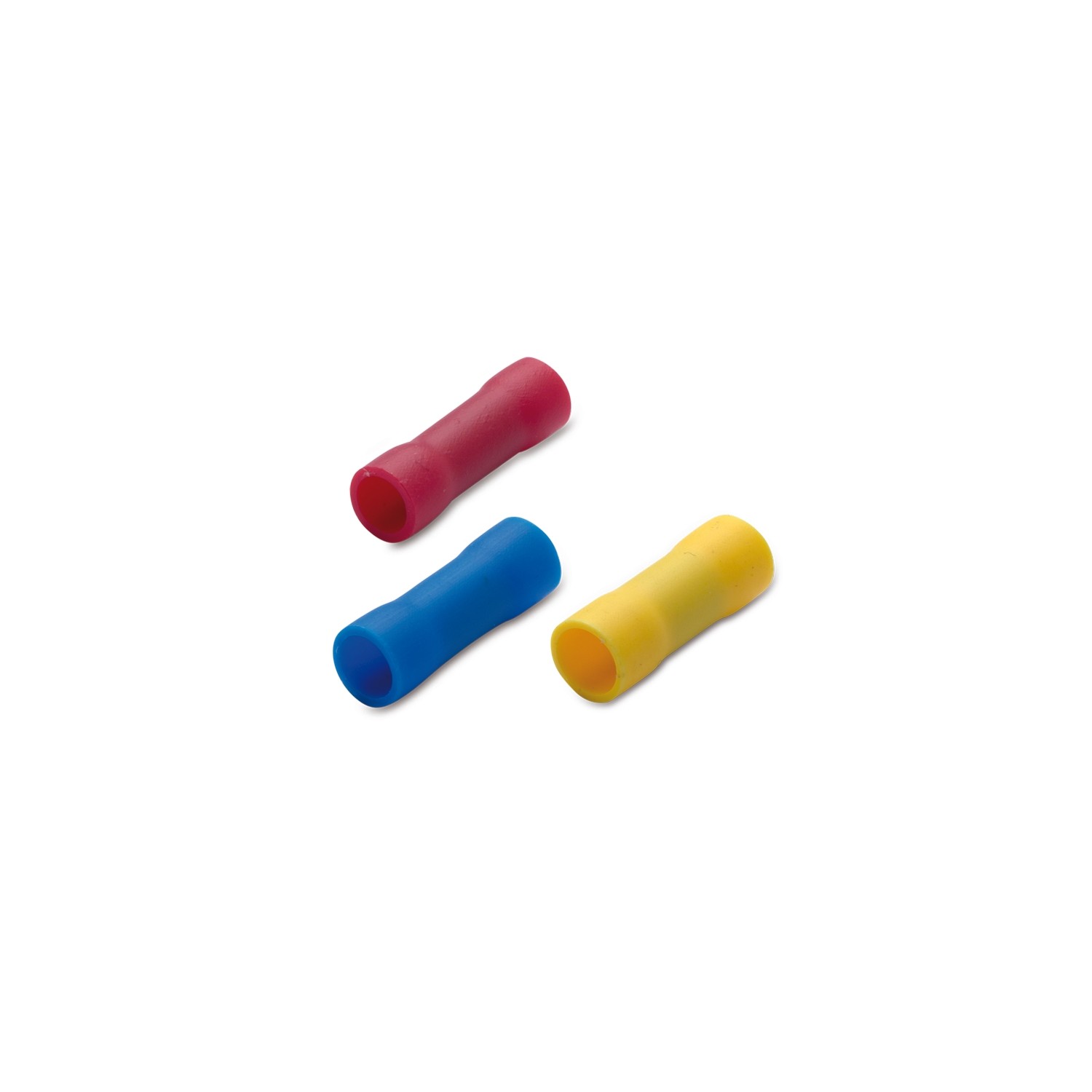

PARALLEL BUTT CONNECTORS · PVC INSULATED

BUTT CONNECTORS · WITH HEAT SHRINKING INSULATION

QUICK CONNECTOR WITH INSULATION-PIERCING

Product Category	parallel connectors
Terminal material	tinned copper
Insulation material	polyvinylchloride (PVC)
Insulation self-extinguishing grade	UL 94 V2
Operating temperature	75 °C max
Max rated voltage	300 V

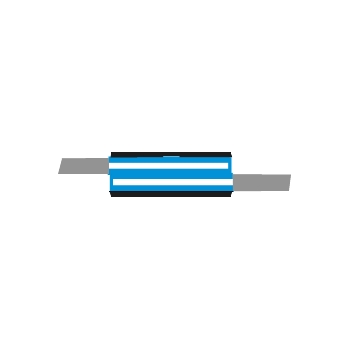

How to assemble	overlap the two conductors
Etim 9	EC001059
cid	11TF02A

file n° E 137735

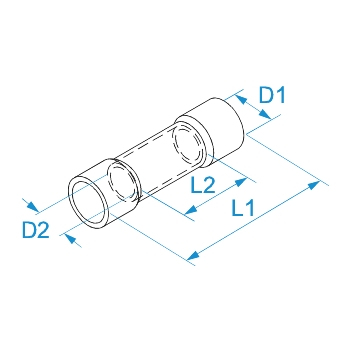

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	Current [A]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
00162	Red	0.25 ÷ 1.5	(22 - 16)	17	18	8	4,2	1,8	100/1000
00262	Blue	1.5 ÷ 2.5	(16 - 14)	30	18	8	4,8	2,5	100/1000
00362	Yellow	4 ÷ 6	(12 - 10)	50	21,5	8,5	6,5	3,7	50/500
