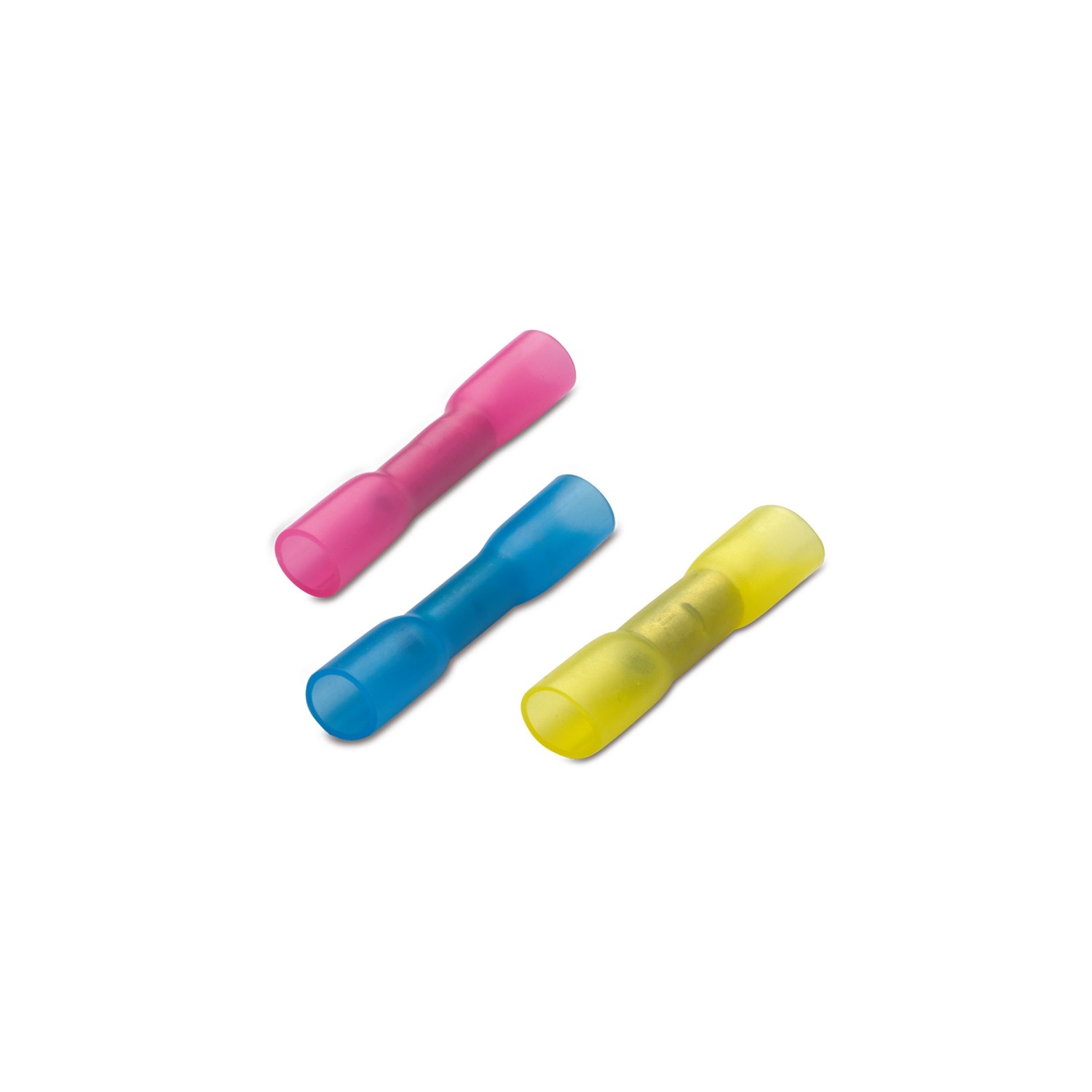

PARALLEL BUTT CONNECTORS · PVC INSULATED

Product Categorybutt connectors
Terminal materialtinned copper
Insulation materialPE thermo-shrinkable with sealing adhesive
Operating temperaturefrom -55 °C to +105 °C
Shrinking temp150 °C
Max rated voltage600 V

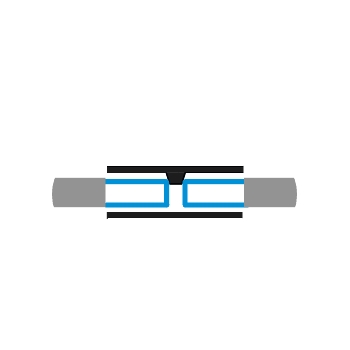

Typewith central flush for a right insertion of the conductor.
How to assembleuse heat air gun 1108
Etim 9EC001059
cid11TF02D
PDF documents

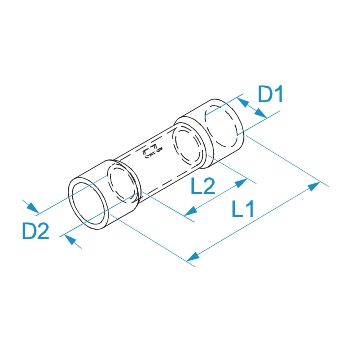

Images with
dimensions
Item
Code		 ColorSection
[mm²]		Section
[AWG/MCM]		L1
[mm]		L2
[mm]		D1
[mm]		D2
[mm]		 Quantity per
Wishlist
90160 Red0.5 ÷ 1.5(20 - 16)35154,51,8100/1000
90260 Blue1.5 ÷ 2.5(16 - 14)37155,52,5100/1000
90360 Yellow4 ÷ 6(12 - 10)41156,53,750/500
