QUICK-CONNECT TERMINALS · PVC INSULATED AND ANTI-VIBRATING · PIGGY-BACKS

QUICK-CONNECT TERMINALS · PVC INSULATED AND ANTI-VIBRATING · FEMALE

QUICK-CONNECT TERMINALS · PVC INSULATED AND ANTI-VIBRATING · FEMALE TOTALLY INSULATED

Product Category	quick-connect terminals
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
Operating temperature	75 °C max
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300V max
How to assemble	double crimping
Etim 9	EC000516
cid	11TD03D

file n° E 143070

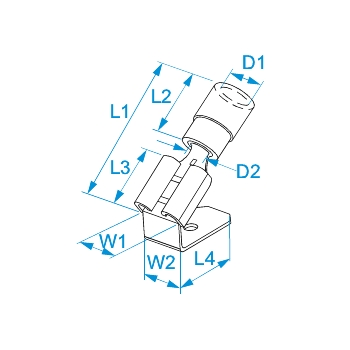

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For male [mm]	For male ["]	W1 [mm]	W2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
00198	Red	0.25 ÷ 1.5	(22 - 16)	6.3 x 0.8	0.250x0.032	6,6	6,3	22,8	10,5	7,8	8	3,8	1,9	100/1000
00298	Blue	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	6,6	6,3	22,8	10,5	7,8	8	4,3	2,5	50/500
