PDF documents
Images with
dimensions
dimensions
| Item Code |
Color | Section[mm²] | Section[AWG/MCM] | For male[mm] | For male["] | W1[mm] | L1[mm] | L2[mm] | L3[mm] | D1[mm] | D2[mm] | | Quantity per Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

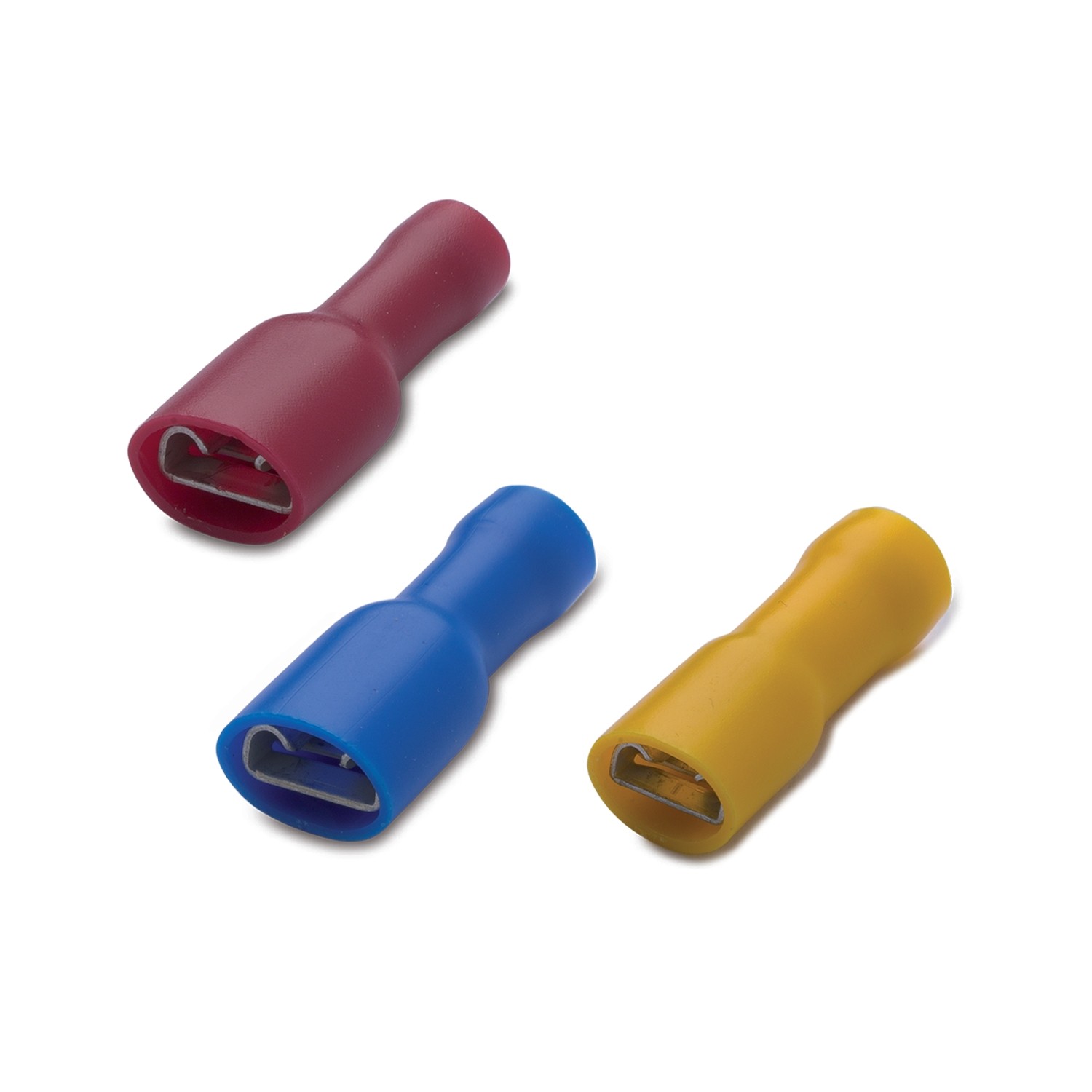

| 00191* | Red | 0.25 ÷ 1.5 | (22 - 16) | 6.3 x 0.8 | 0.250x0.032 | 6,6 | 22 | 11 | 7,8 | 3,8 | 1,9 | 100/1000 | |
| 00192* | Red | 0.25 ÷ 1.5 | (22 - 16) | 4.8 x 0.8 | 0.187x0.032 | 5 | 20 | 11 | 6 | 3,8 | 1,9 | 100/1000 | |
| 00193 | Red | 0.25 ÷ 1.5 | (22 - 16) | 4.8 x 0.5 | 0.187x0.020 | 5 | 20 | 11 | 6 | 3,8 | 1,9 | 100/1000 | |
| 00291* | Blue | 1.5 ÷ 2.5 | (16 - 14) | 6.3 x 0.8 | 0.250x0.032 | 6,6 | 22 | 11 | 7,8 | 4,5 | 2,4 | 50/500 | |
| 00292* | Blue | 1.5 ÷ 2.5 | (16 - 14) | 4.8 x 0.8 | 0.187x0.032 | 5 | 20 | 11 | 6 | 4,5 | 2,4 | 100/1000 | |
| 00293 | Blue | 1.5 ÷ 2.5 | (16 - 14) | 4.8 x 0.5 | 0.187x0.020 | 5 | 20 | 11 | 6 | 4,5 | 2,4 | 100/1000 | |
| 00392* | Yellow | 4 ÷ 6 | (12 - 10) | 6.3 x 0.8 | 0.250x0.032 | 6,6 | 25 | 11 | 7,8 | 6 | 3,5 | 50/500 |
