QUICK-CONNECT TERMINALS · UNINSULATED · FEMALE

QUICK-CONNECT TERMINALS · UNINSULATED · FEMALE · FLAG TYPE

Product Category	quick-connect terminals
Terminal material	tinned/passivated brass
According to std.	EN 61210: 2010-11
Operating temperature	da -40 °C a +110 °C
Etim 9	EC000516
cid	11TD01A

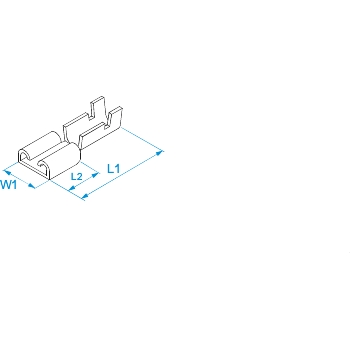

Images with
dimensions

Coded items

Item Code	Material	Execution	Section [mm²]	Section [AWG/MCM]	For male [mm]	For male ["]	W1 [mm]	L1 [mm]	L2 [mm]	
01190	passivated brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	200/2000
01191	tinned brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	200/2000
02190	passivated brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	7000/7000
02191	tinned brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	7000/7000
01290	passivated brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	100/1000
01291	tinned brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	100/1000
02290	passivated brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	6500/6500
02291	tinned brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	7,6	19,2	7,6	6500/6500
01148	passivated brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	5,8	15,6	6,4	200/2000
01149	tinned brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	5,8	15,6	6,4	200/2000
02148	passivated brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	5,8	15,6	6,4	10000/10000
02149	tinned brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	5,8	15,6	6,4	10000/10000
01145	passivated brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	5,8	15,6	6,4	200/2000
01146	tinned brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	5,8	15,6	6,4	200/2000
02145	passivated brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	5,8	15,6	6,4	8000/8000
02146	tinned brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	5,8	15,6	6,4	8000/8000
01390	passivated brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	3,7	14	6,5	200/2000
01391	tinned brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	3,7	14	6,5	200/2000
02390	passivated brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	3,7	14	6,5	15000/15000
02391	tinned brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	3,7	14	6,5	15000/15000
01395	passivated brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	3,7	14	6,5	200/2000
01396	tinned brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	3,7	14	6,5	200/2000
02395	passivated brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	3,7	14	6,5	15000/15000
02396	tinned brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	3,7	14	6,5	15000/15000
