QUICK-CONNECT TERMINALS · UNINSULATED · MALE-PANEL-MALE

Product was successfully added to your shopping cart.

QUICK-CONNECT TERMINALS · UNINSULATED · MALE-PANEL-MALE

QUICK-CONNECT TERMINALS · UNINSULATED · MALE-PANEL

ACCESSORIES FOR QUICK CONECT TERMINALS: POLYETHYLENE SLEEVES

Product Category	quick-connect terminals
Terminal material	tinned/passivated brass
According to std.	EN 61210: 2010-11
Operating temperature	da -40 °C a +110 °C
Etim 9	EC000516
cid	11TD01E

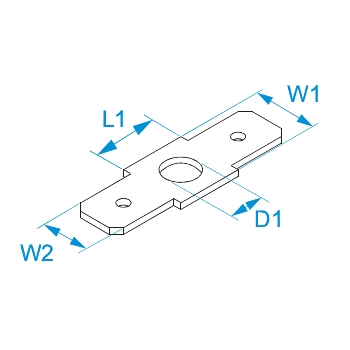

Images with
dimensions

Coded items

Item Code	Material	Male [mm]	Male ["]	W1 [mm]	W2 [mm]	L1 [mm]	D1 [mm]		Quantity per Wishlist

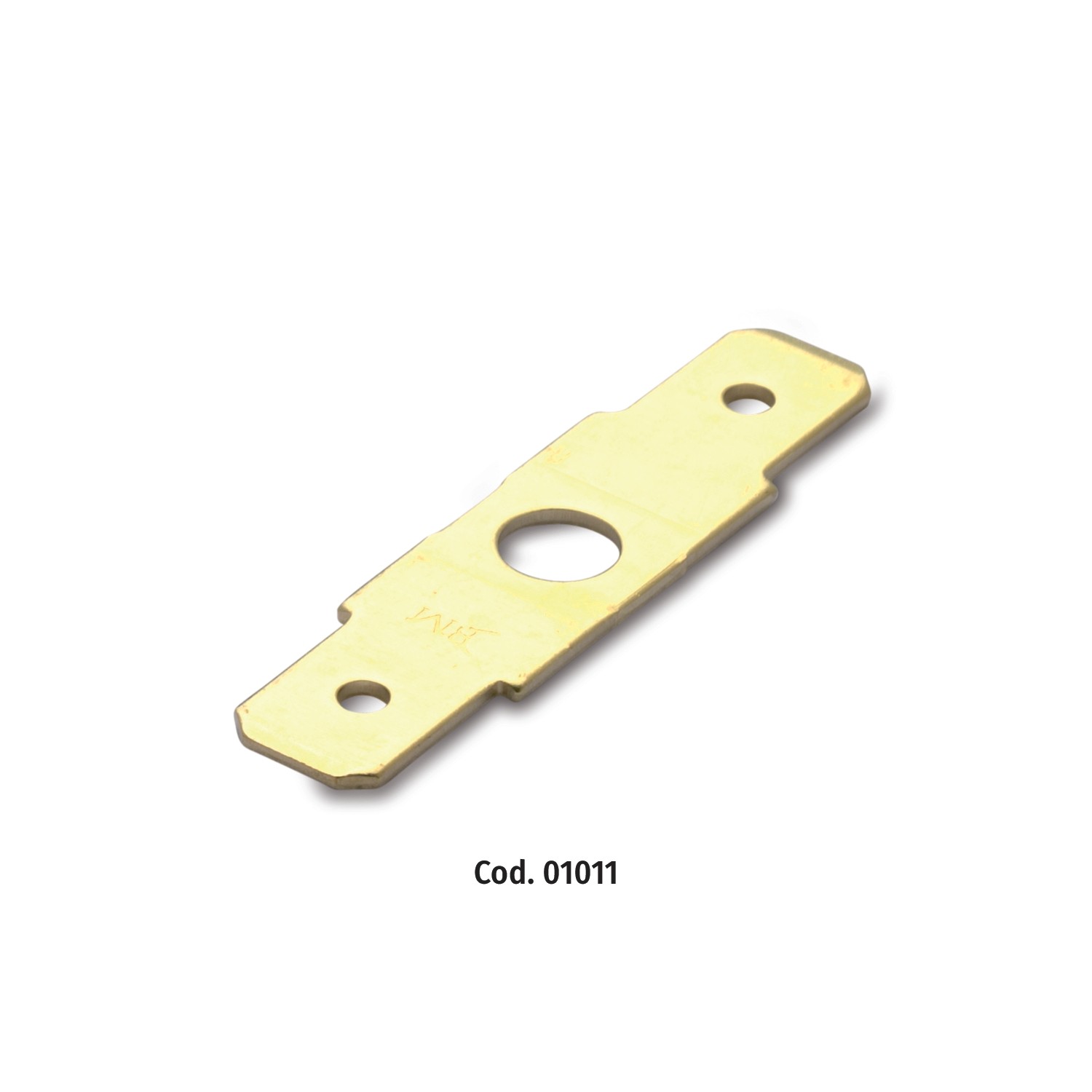

01011	passivated brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000
02011	tinned brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000

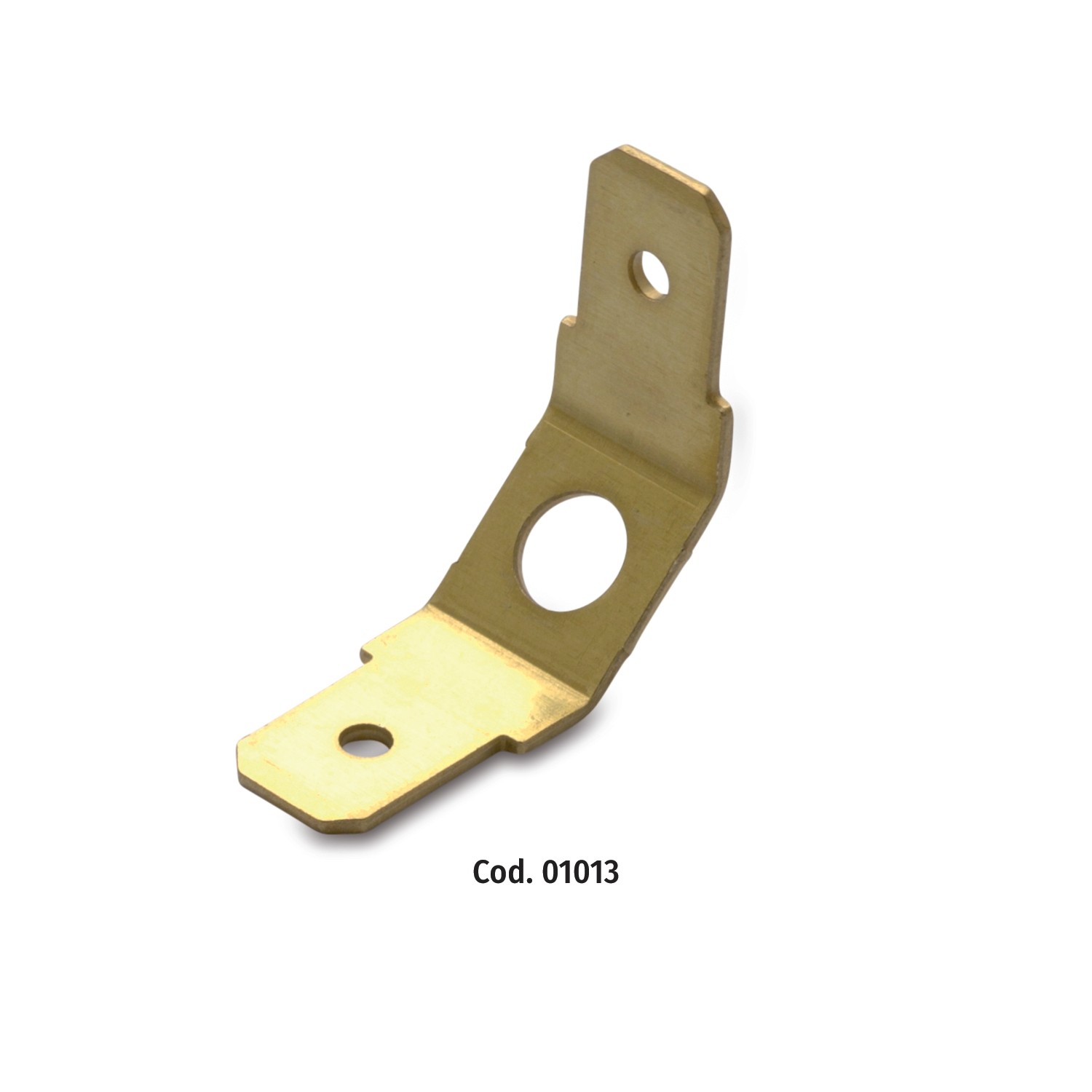

01013	passivated brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000
02013	tinned brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000

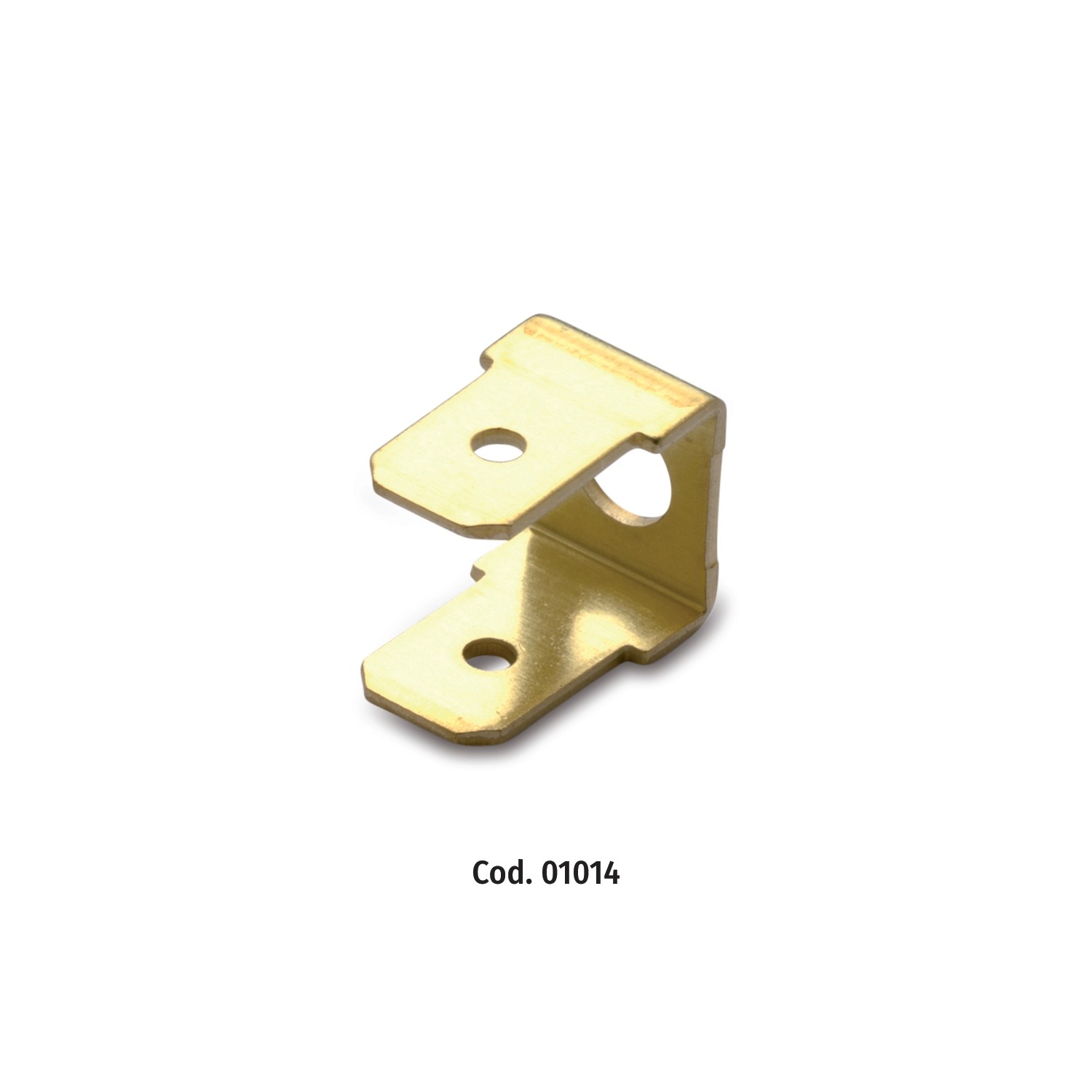

01014	passivated brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000
02014	tinned brass	6.3 x 0.8	0.250x0.032	8	6,3	6,3	4,3	100/1000
