QUICK-CONNECT TERMINALS · UNINSULATED · MALE

Product was successfully added to your shopping cart.

QUICK-CONNECT TERMINALS · UNINSULATED · MALE

QUICK-CONNECT TERMINALS · UNINSULATED · PIGGY-BACKS

QUICK-CONNECT TERMINALS · UNINSULATED · MALE-PANEL

Product Category	quick-connect terminals
Terminal material	tinned/passivated brass
According to std.	EN 61210: 2010-11
Operating temperature	da -40 °C a +110 °C
Etim 9	EC000516
cid	11TD01C

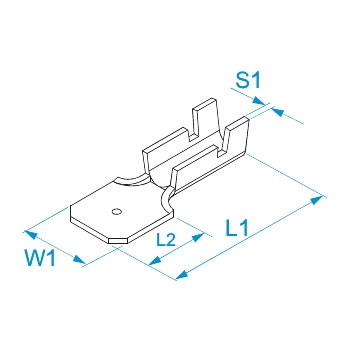

Images with
dimensions

Coded items

Item Code	Material	Execution	Section [mm²]	Section [AWG/MCM]	Male [mm]	Male ["]	W1 [mm]	L1 [mm]	L2 [mm]	S1 [mm]		Quantity per Wishlist
01180	passivated brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,3	20,6	8	0,8	200/2000
01181	tinned brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,3	20,6	8,2	0,8	200/2000
02180	passivated brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,3	20,6	8	0,8	6000/6000
02181	tinned brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	6,3	20,6	8	0,8	6000/6000
01280	passivated brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	6,3	20,6	8,2	0,8	200/2000
01281	tinned brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	6,3	20,6	8,2	0,8	200/2000
02280	passivated brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	6,3	20,6	8,2	0,8	6000/6000
02281	tinned brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	6,3	20,6	8,2	0,8	6000/6000
